Part 1

Camshafts















Removal

Drain cooling system, draining, filling, and bleeding Refer to: Cooling system - draining, charging and bleeding, B6304T4 Service and Repair

Remove the crankshaft seal, front Refer to: Crankshaft front seal, B6304T4, TF-80SC AWD Service and Repair

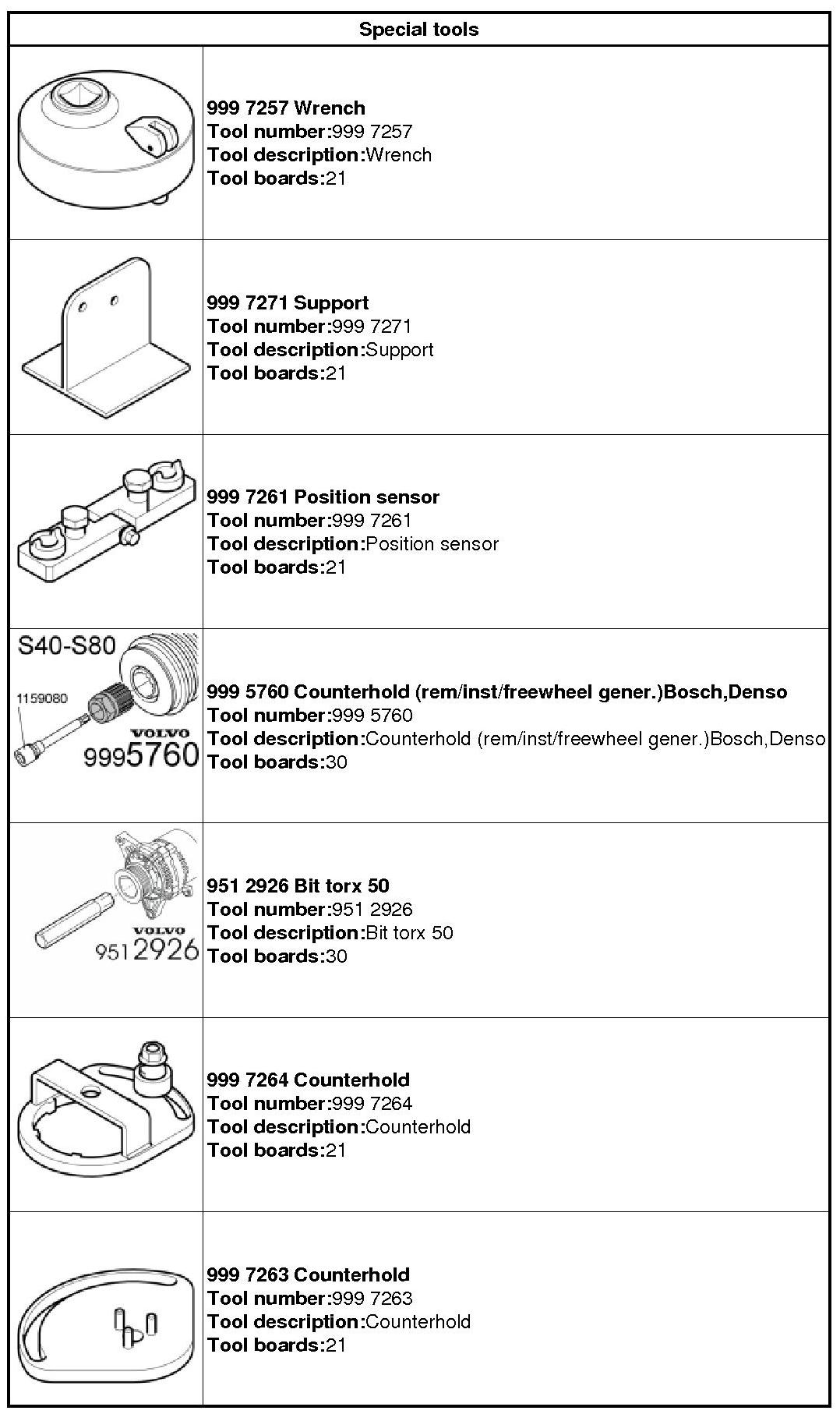

999 7257 Wrench 999 7257 Wrench




999 7271 Support 999 7271 Support
























999 7261 Position sensor 999 7261 Position Sensor

Remove the auxiliaries belt Refer to: Accessory Drive Belt, B6304T4 Service and Repair
















999 5760 Counterhold 999 5760 Counterhold 951 2926 Bit torx 50 951 2926 Bit Torx 50

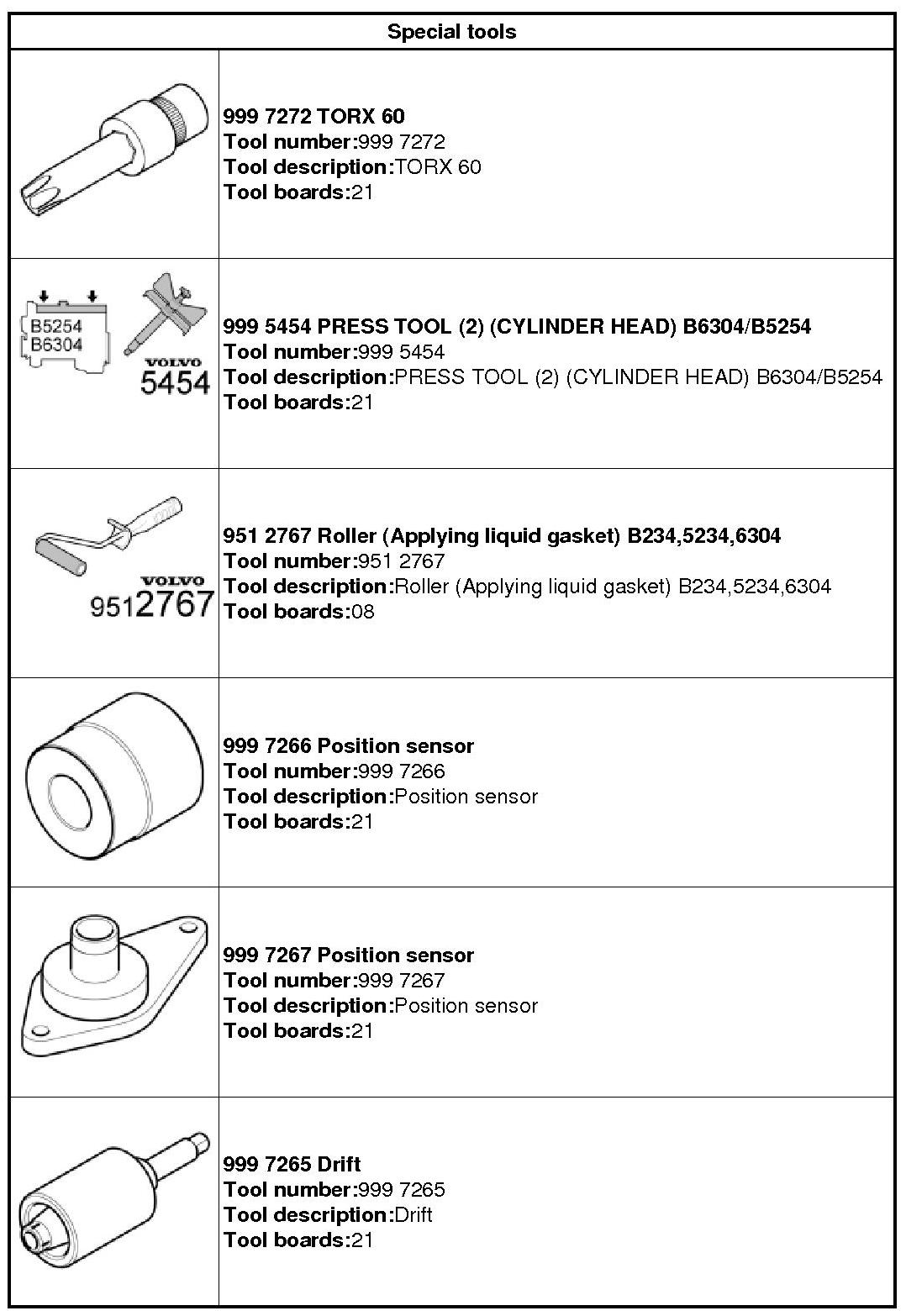

999 7264 Counterhold 999 7264 Counterhold 999 7263 Counterhold 999 7263 Counterhold 999 7272 TORX 60 999 7272 Torx 60













Warning! Be prepared to collect escaping fluid.
















999 5454 PRESS TOOL 999 5454 Press Tool

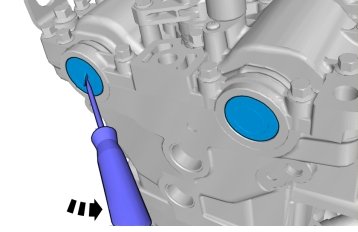

Caution! Take extra care not to damage the mating faces.

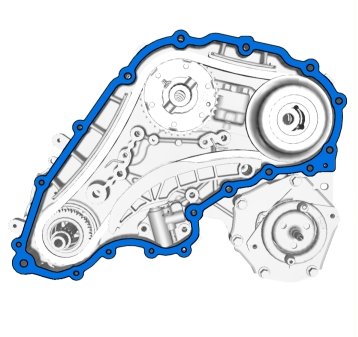

1.
Note! Only use moderate force.

2. Caution! Take extra care when handling the component.





Caution! Note the position of the components before removal.
