Thermostat: Service and Repair

Operation number: 26214-2

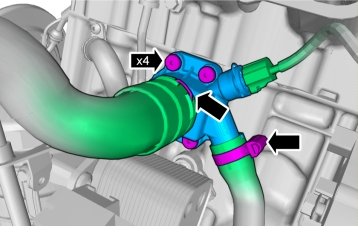

Thermostat

Removal

Note! Removal steps in this procedure may contain installation details.

Perform draining Refer to: Cooling system - draining, charging and bleeding, B6304T4 Service and Repair

Remove intake manifold Refer to: Induction pipe, B6304T4, TF-80SC AWD Service and Repair




Torque: M6, 10 Nm

Installation

To install, reverse the removal procedure.
