Removal and Replacement

Operation number: 26104-2

Radiator






Removal

Note! Removal steps in this procedure may contain installation details.

Remove the following items:
- Cover bumper front Refer to: Cover bumper front, B6304T4, B5254T5 Service and Repair
- engine cooling fan (FC) Refer to: Engine cooling fan (FC), B6304T4, TF-80SC AWD, B5254T5, TF-80SC Service and Repair

Perform cooling system draining, charging and bleeding Refer to: Cooling system - draining, charging and bleeding, B6304T4, B5254T5 Service and Repair





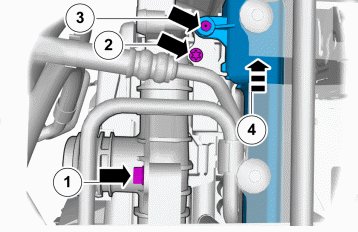

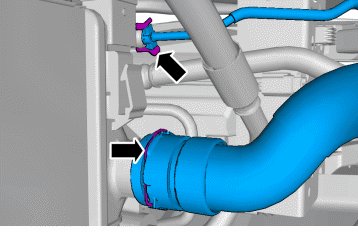

Warning! Be prepared to collect escaping fluid.

Remove right headlight Refer to: Headlamps Headlamps




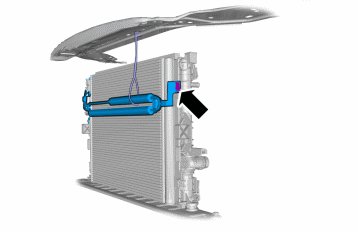

Torque: Radiator to condenser, 5 Nm





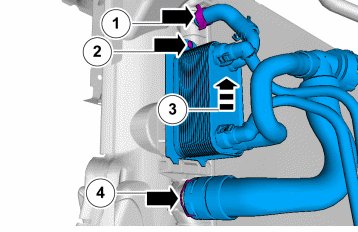

Warning! Be prepared to collect escaping fluid.

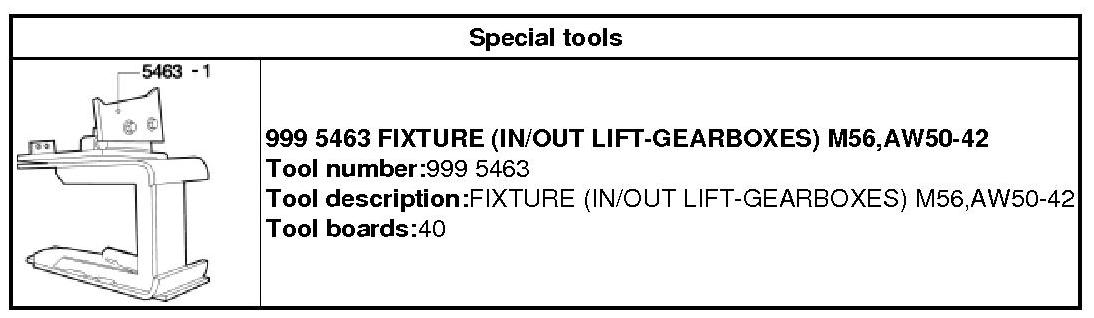

999 5463 FIXTURE 999 5463 Fixture









Detach the charge air cooler Refer to: Charge air cooler, B6304T4, B5254T5 Service and Repair




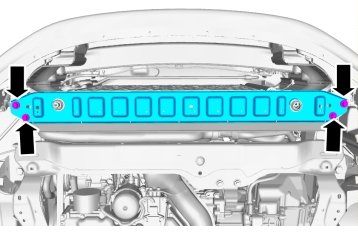

Torque: M8, 24 Nm





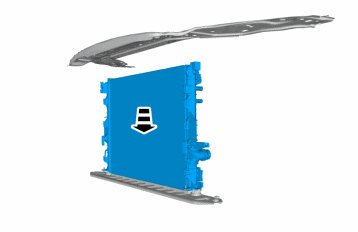

Installation

To install, reverse the removal procedure.
