Radiator Cooling Fan: Service and Repair

Engine cooling fan (FC)

Removal

Note! Removal steps in this procedure may contain installation details.

Remove the following items:
- battery Refer to: Battery Removal and Replacement
- air cleaner (ACL) housing Refer to: Air cleaner housing, B5254T5, B6304T4 Service and Repair

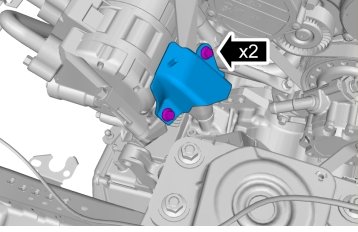

Torque: M6, 10 Nm

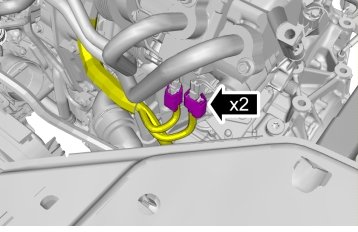

Warning! Be prepared to collect escaping fluid.

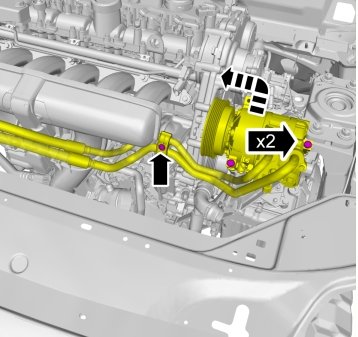

Torque: M6, 10 Nm

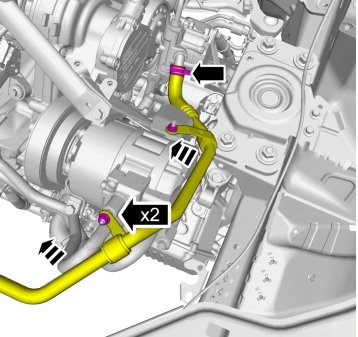

Torque: M8, 24 Nm

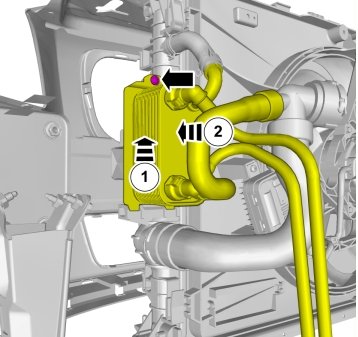

1. Torque: M8, 24 Nm

2. Torque: M10, 50 Nm

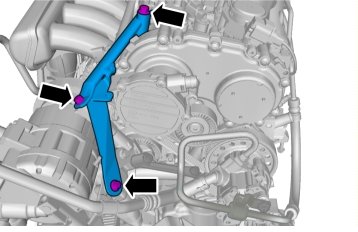

Torque: M8, 24 Nm












Torque: M6, 10 Nm

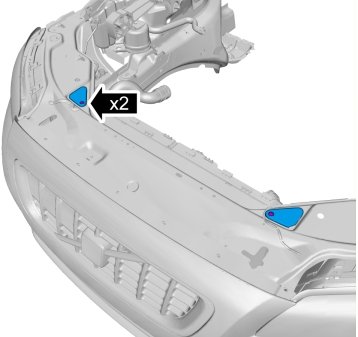

On both sides.





Installation

To install, reverse the removal procedure.
