Heater Core: Service and Repair

Operation number: 87304-2

Heat exchanger

Removal

Perform cooling system draining, charging and bleeding Refer to: Cooling system - draining, charging and bleeding, B6304T4, B5254T5 Service and Repair

Remove floor console Refer to: Floor console, TF-80SC AWD, TF-80SC Floor Console

















Warning! Be prepared to collect escaping fluid.

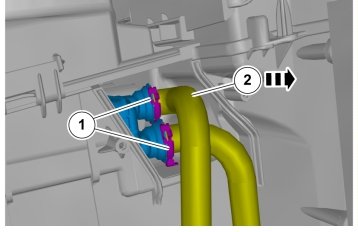

Note! Note the position of the component before removal.

Installation

Note! Use new seals.

Note! Make sure that the seal is correctly located.

To install, reverse the removal procedure.
