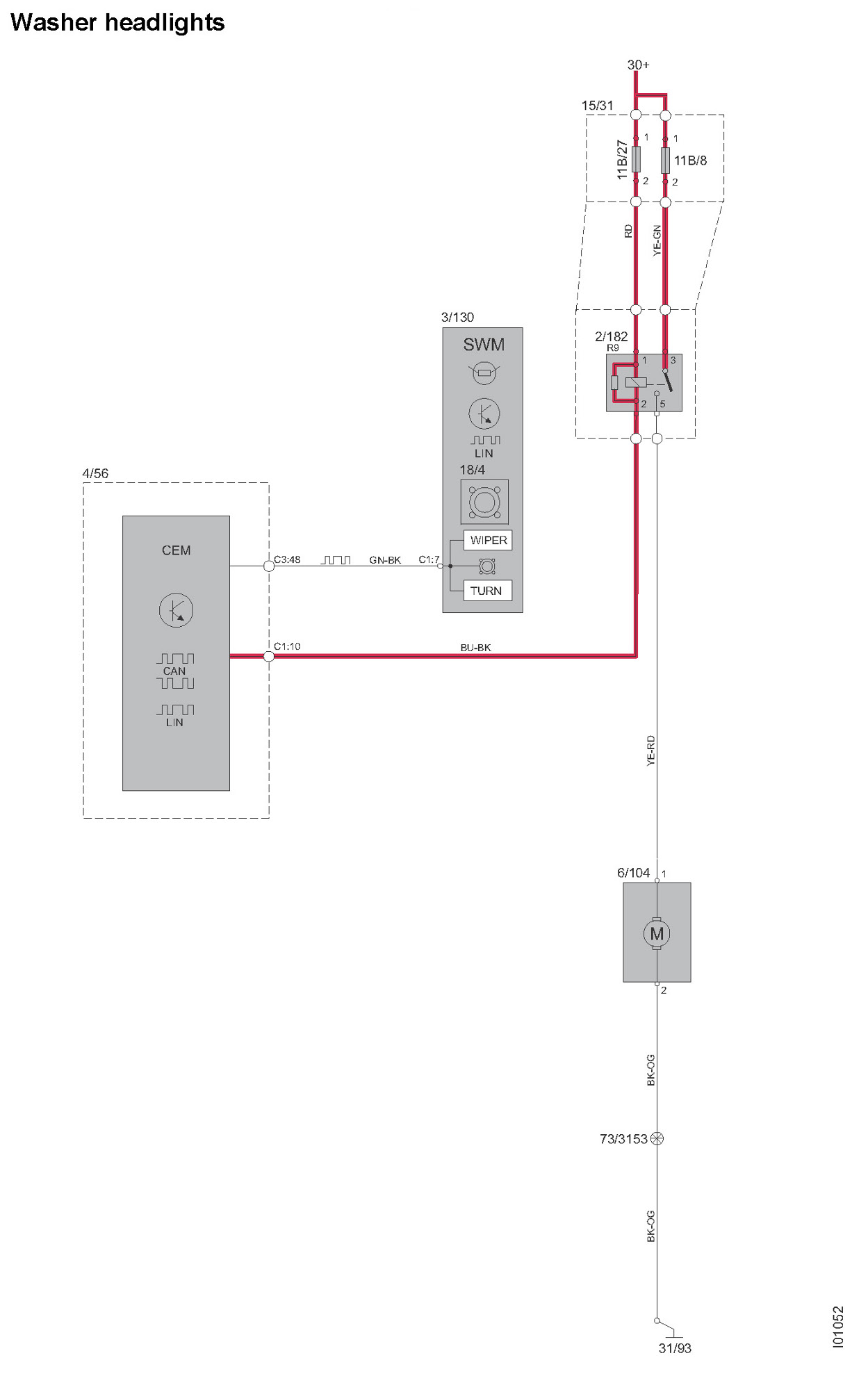

Washer Headlights



Washer Headlights







Diagram Legend: Changes Introduced Up to October 2010 Inclusive

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations

List of Components By Component Number: Changes Introduced Up to October 2010 Inclusive
