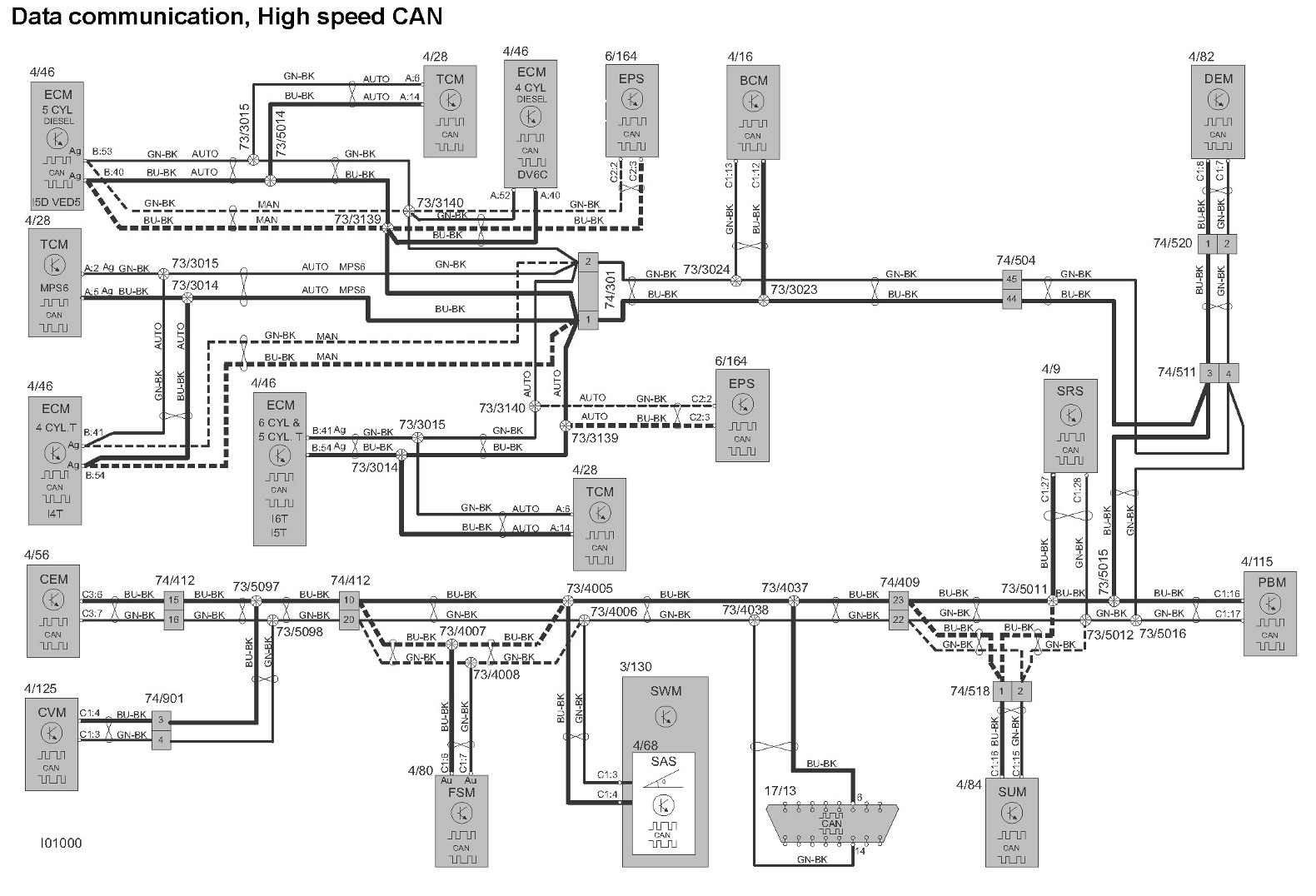

Data Communication, High Speed CAN

Data Communication, High Speed CAN







Diagram Legend: Changes Introduced Up to and Including Structure Week 11W20

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations

List of Components By Component Number: Changes Introduced Up to and Including Structure Week 11W20
