Running/Parking Light, Tail Lights (Dual Xenon)

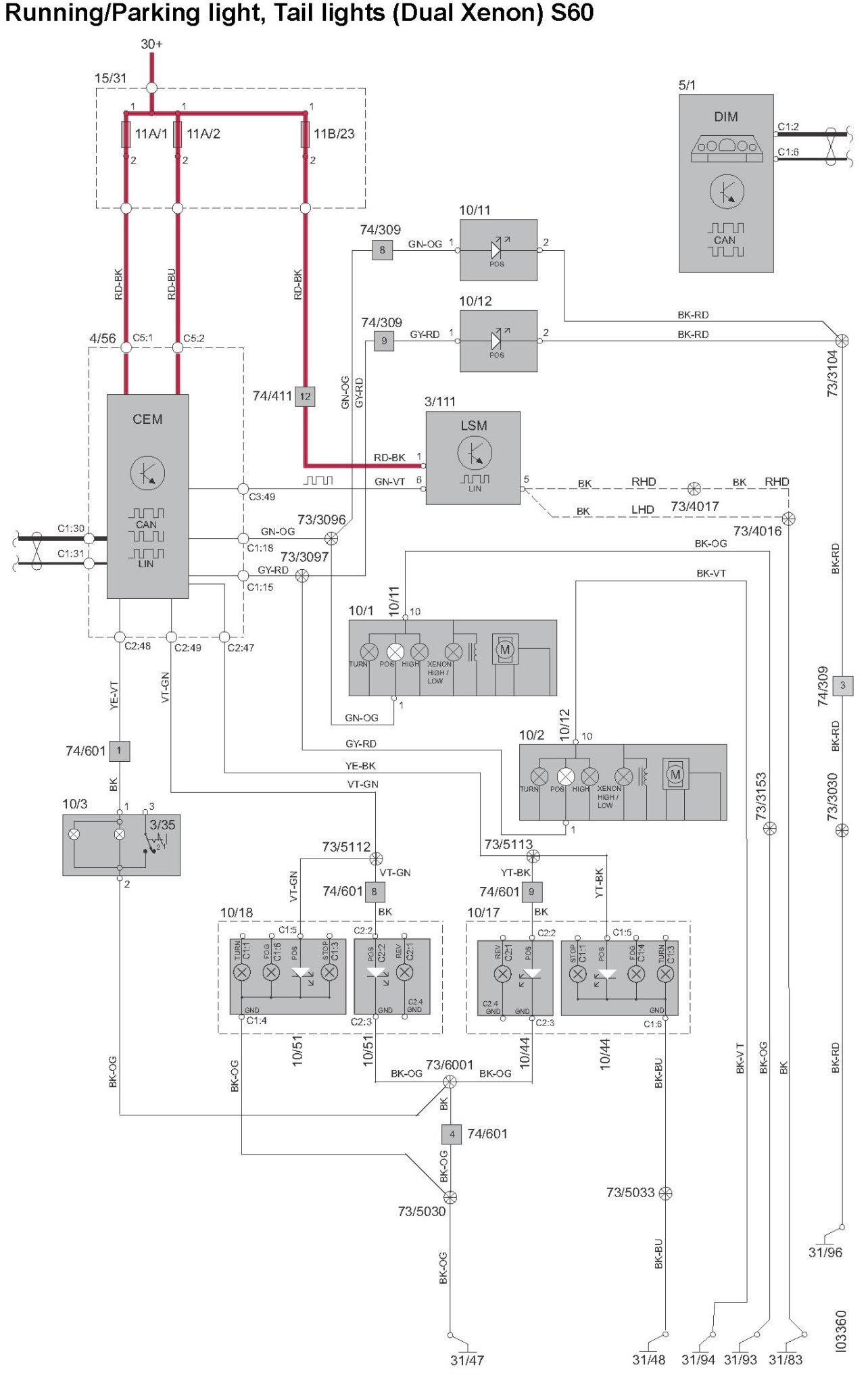

Running/Parking Light, Tail Lights (Dual Xenon) S60







Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations
