Braking Sensor/Switch: Service and Repair

Operation number: 38611-2

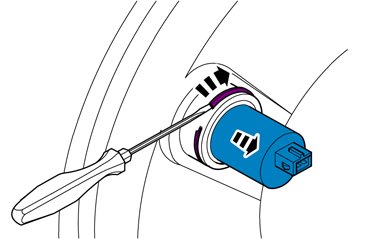

Position sensor, brake pedal

Removal

Note! Removal steps in this procedure may contain installation details.

Remove the following items:
- battery Refer to: Battery Removal and Replacement
- Plenum chamber Refer to: Plenum chamber Service and Repair




Torque: M6, 10 Nm

Depress and release the brake pedal 3 times.





Installation

To install, reverse the removal procedure.
