Signal Specification, Parking Brake Module (PBM)

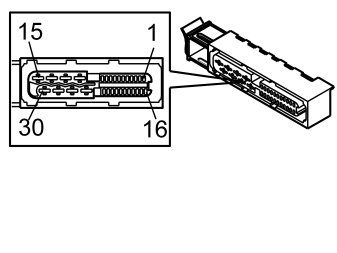

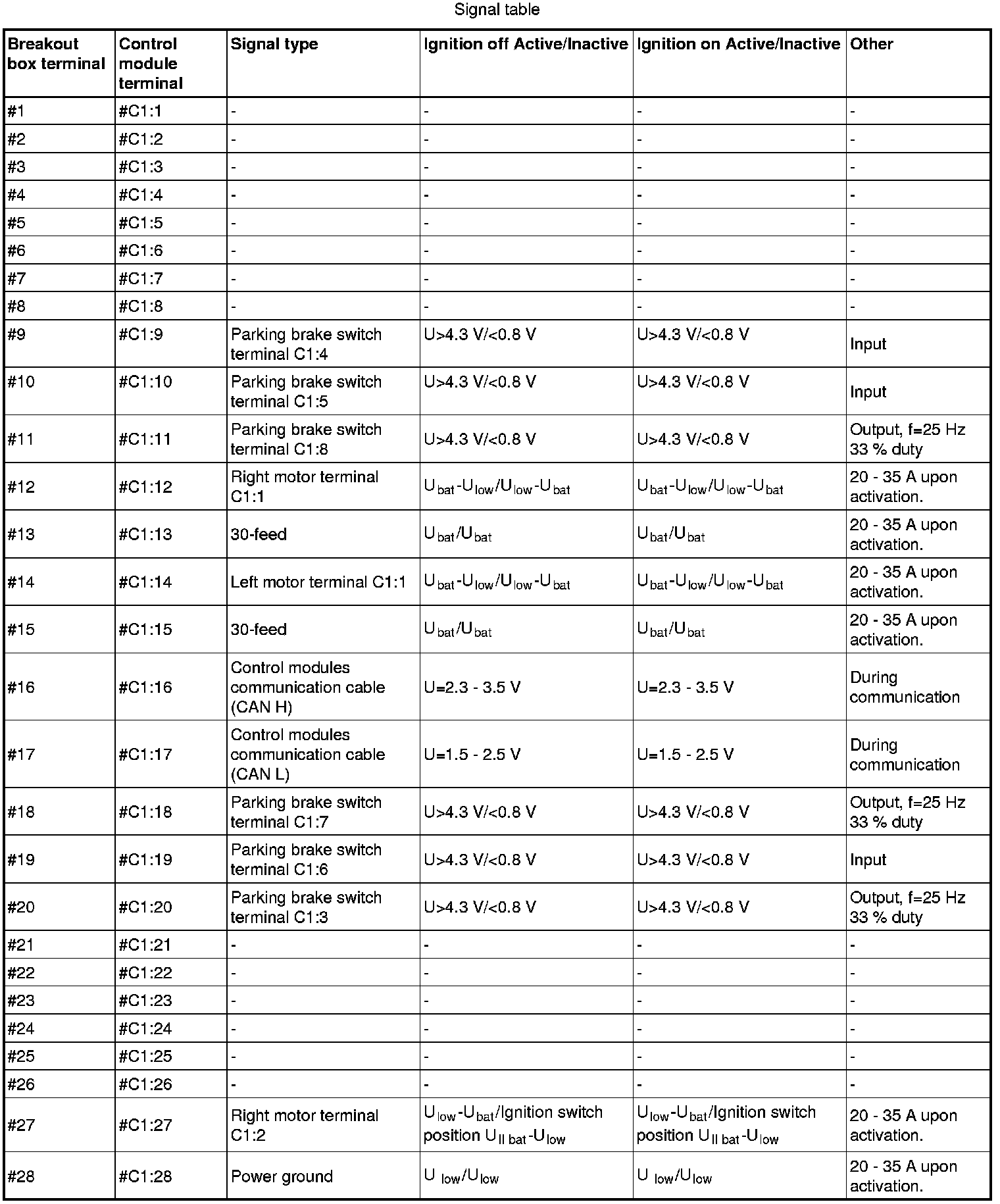

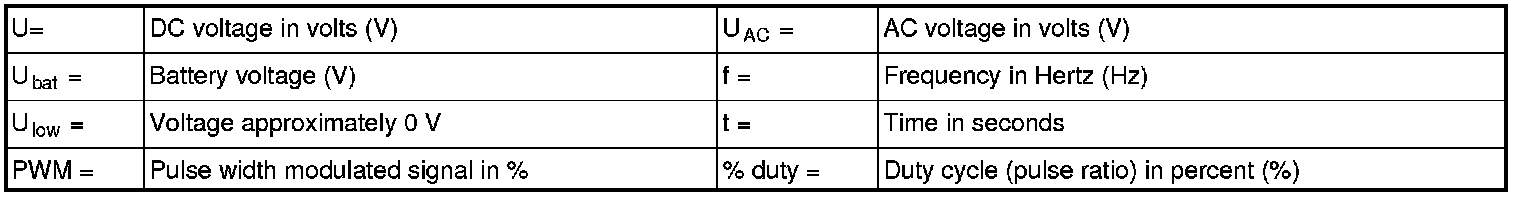

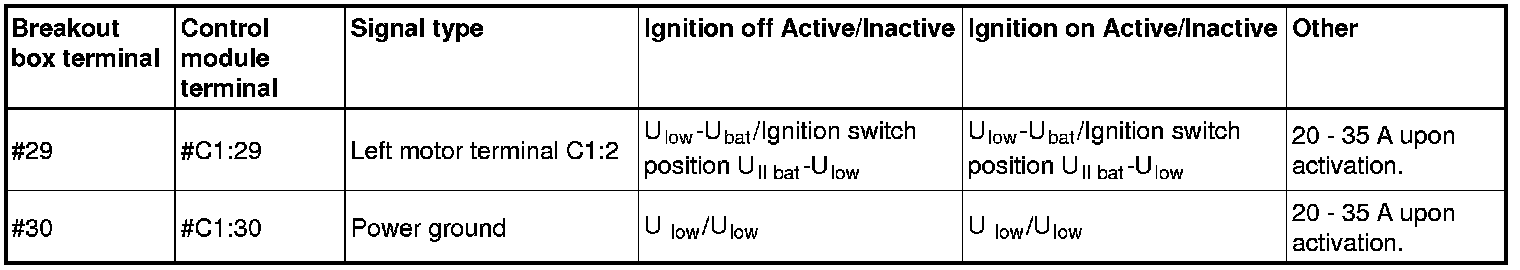

Signal specification

General
All the values given below are between the respective terminal in column 1 and terminal #C1:30 in column 2 (power ground) unless otherwise stated in brackets after the table entry.

Note! It is important to connect the breakout box and check the ground terminals before taking readings.
