Brake Calipers Front, Replacing

Operation number: 51108-0

Front brake caliper

Removal

Note! Removal steps in this procedure may contain installation details.

See information about safety information brake system Refer to: Safety information brake system Service Precautions





Remove brake pads front Refer to: Brake pads, front, B6304T4, TF-80SC AWD, B5254T5, TF-80SC Service and Repair





Remove the following items:

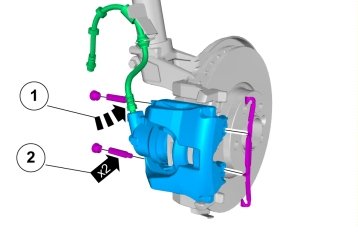

1. Torque: Brake hose to front brake caliper, 18 Nm

2. Torque: Slide rail front brake caliper, 28 Nm

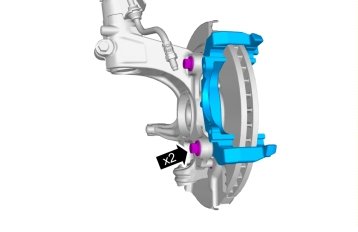

Torque: Mount front brake caliper, 200 Nm

Installation

To install, reverse the removal procedure.

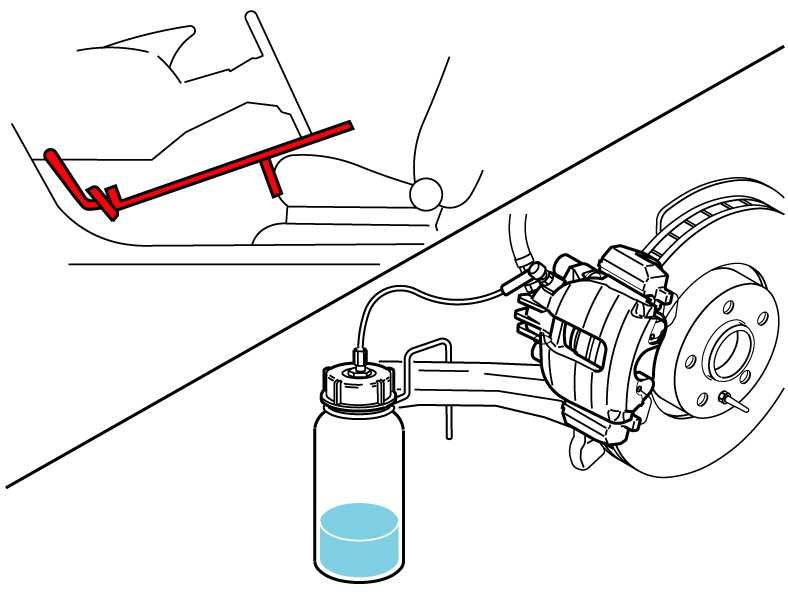

Perform bleeding air brake system Refer to: Brake system bleeding Service and Repair
