Signal Specification, Steering Wheel Angle Sensor Module (SAS)

Signal specification


Connector A

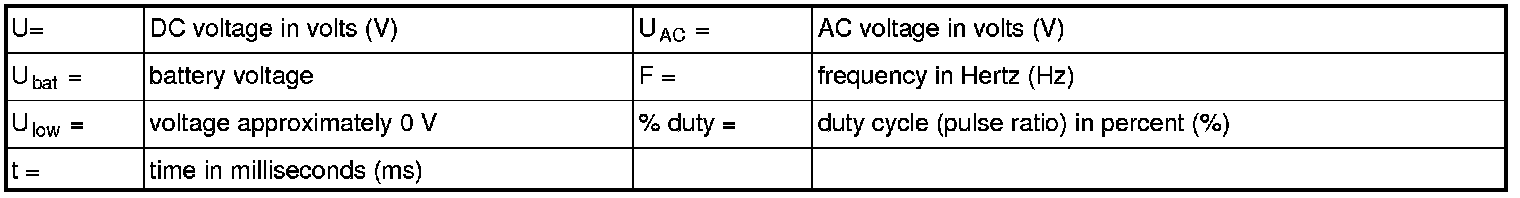

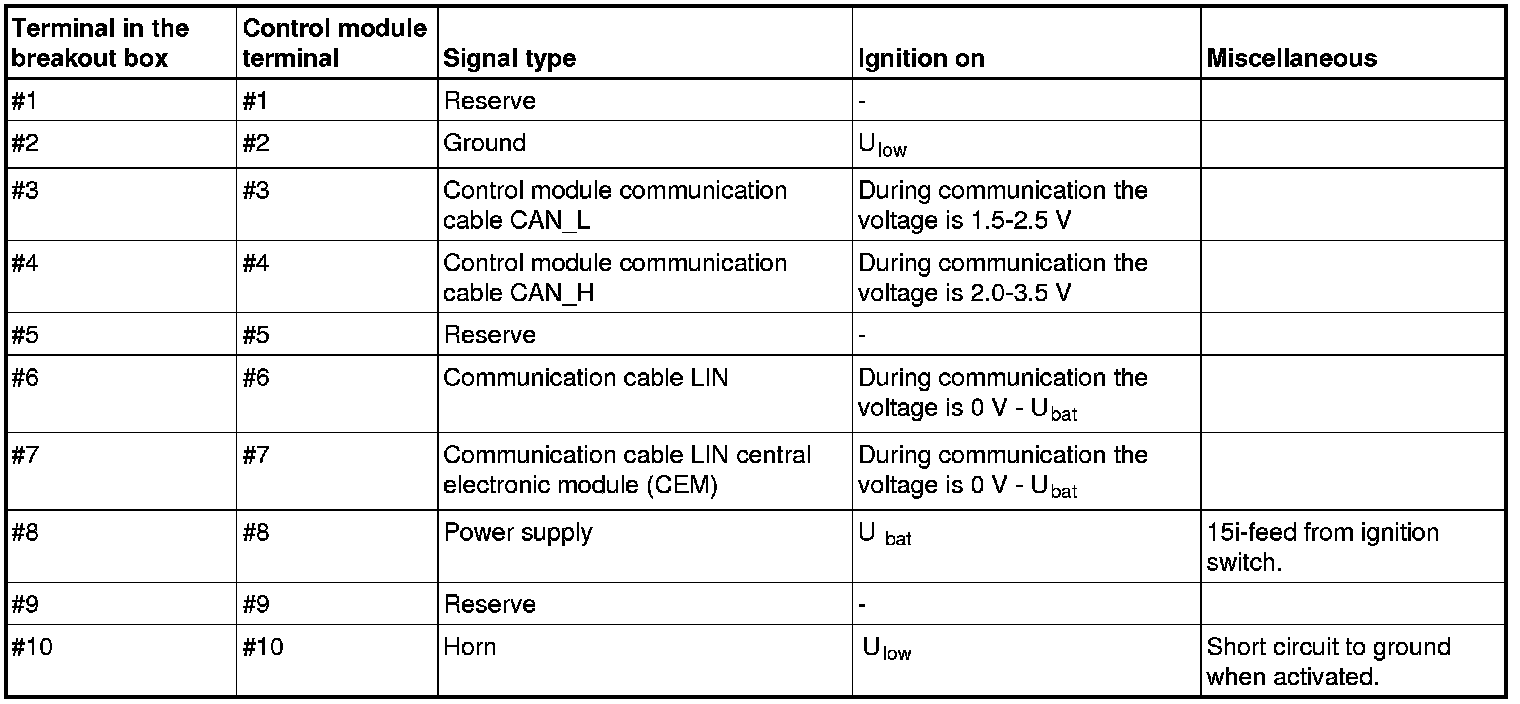

All the values given below are between the relevant terminal stated in column 1 and terminal #A2 (ground) unless otherwise stated in parenthesis after the table entry.

Note! It is important to connect the breakout box and check ground terminals before reading off.
