Signal Description, Brake Control Module (BCM)

Signal description, brake control module (BCM)

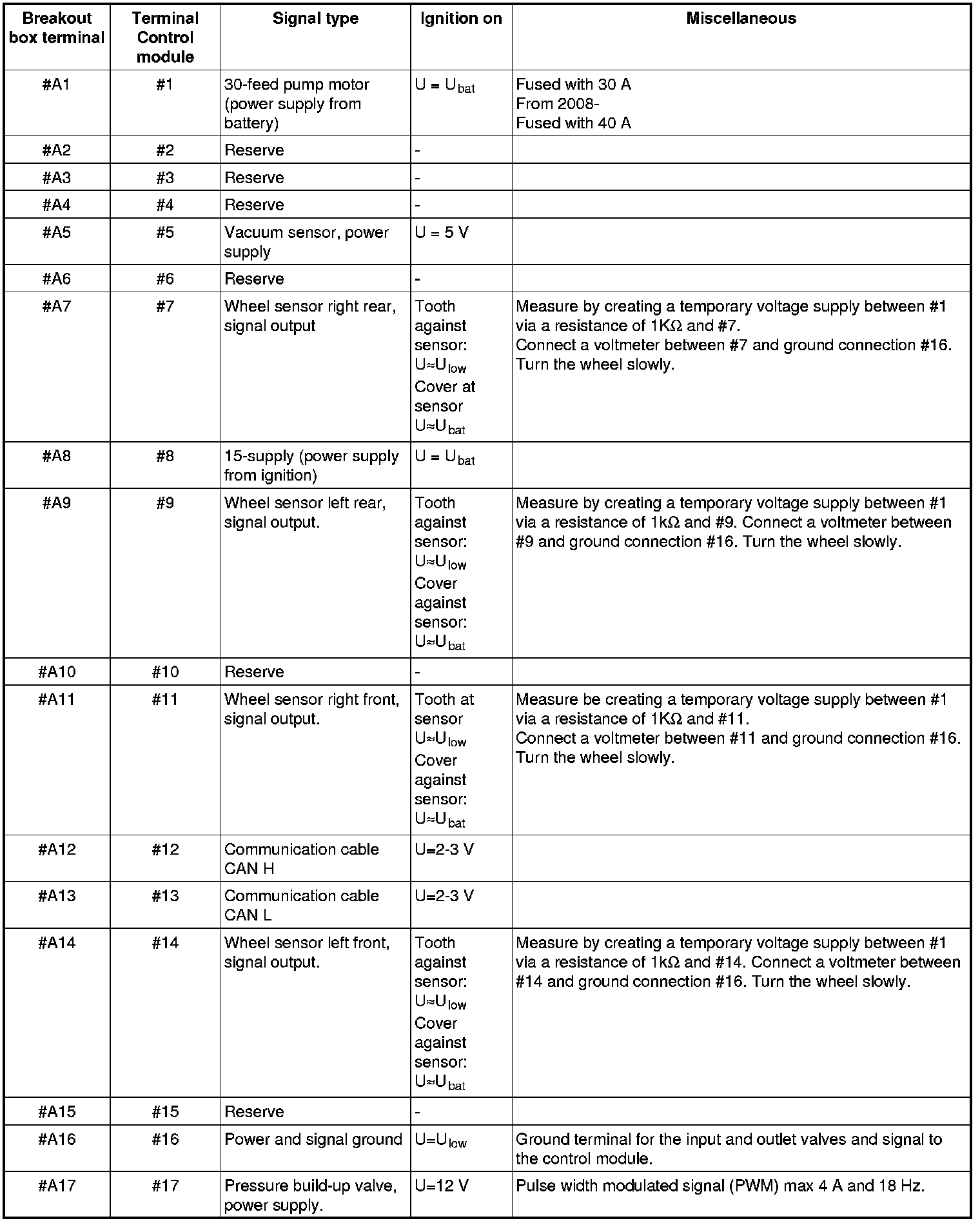

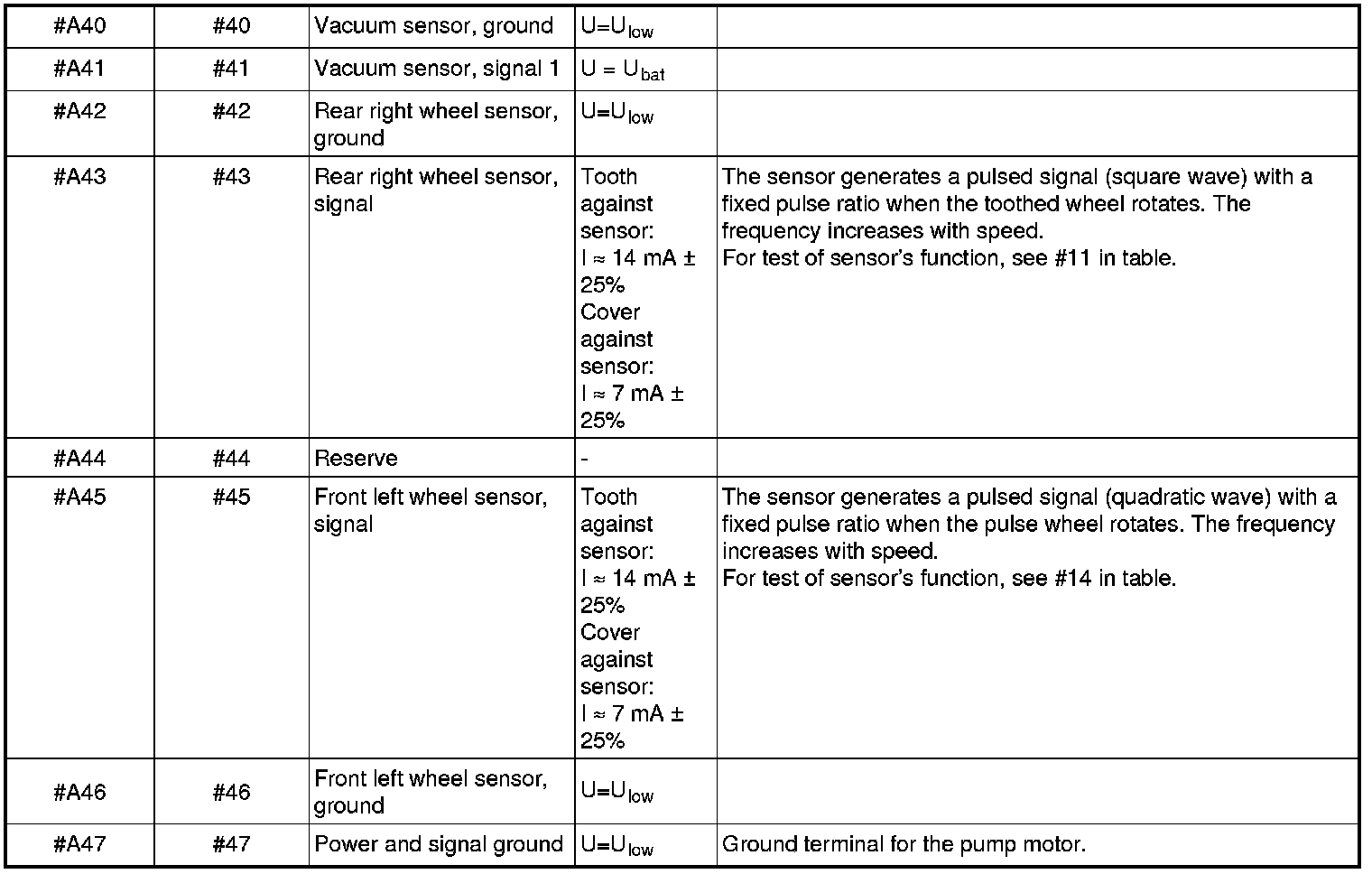

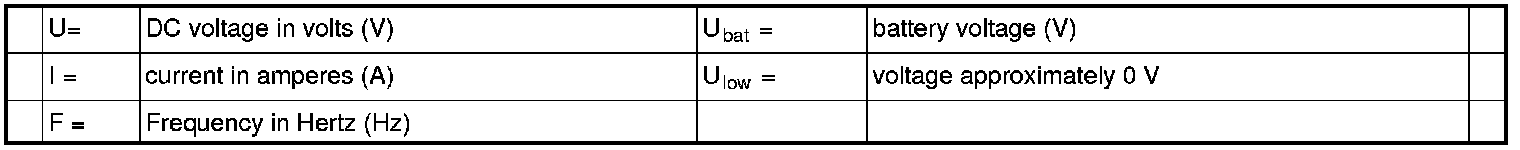

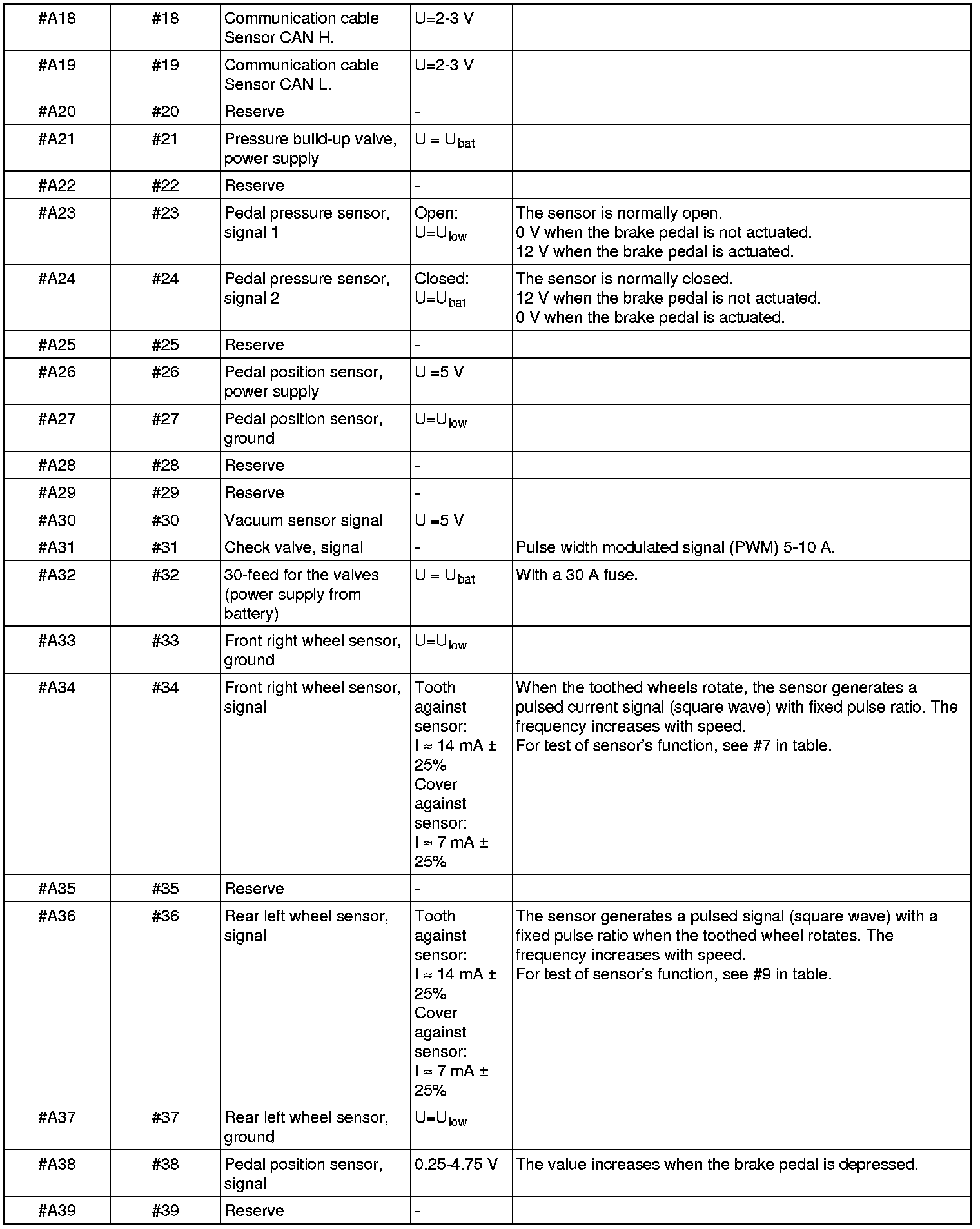

All the values given below are between the relevant terminal stated in column 1 and terminal #A16 or #A47 (ground) unless otherwise stated in parenthesis after the table entry.

Note! It is important that the breakout box is connected and that the ground terminals have been checked before readings are taken.
