Mudguard, Replacing

Mudflaps















INTRODUCTION
- Read through all of the instructions before starting installation.
- Notifications and warning texts are for your safety and to minimize the risk of something breaking during installation.
- Ensure that all tools stated in the instructions are available before starting installation.
- Certain steps in the instructions are only presented in the form of images. Explanatory text is also given for more complicated steps.
- In the event of any problems with the instructions or the accessory, contact your local Volvo dealer.

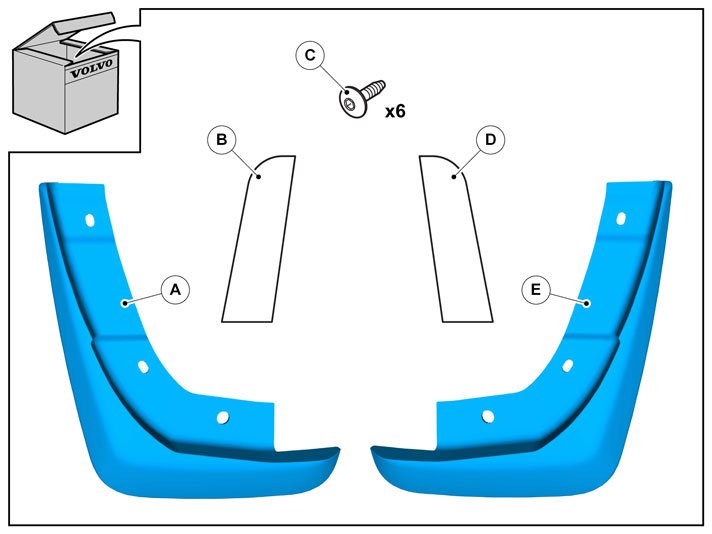

Mudflaps





- Turn the wheel.

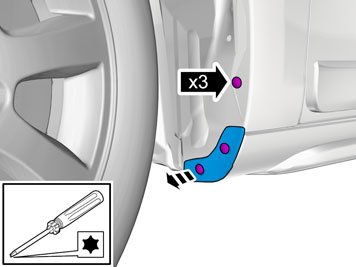

- Remove the screws and flap. These will not be reused.

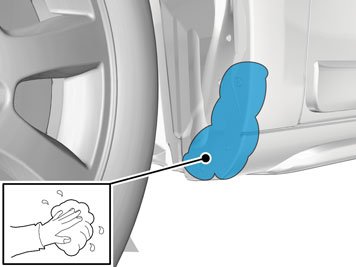

- Clean the area where the mudflap is to be positioned.

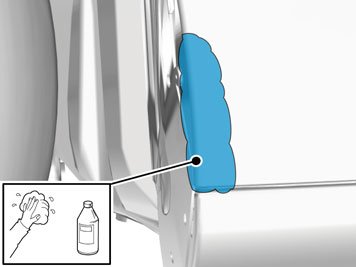

- Clean the area where the protective tape is to be attached. Use: Isopropanol.

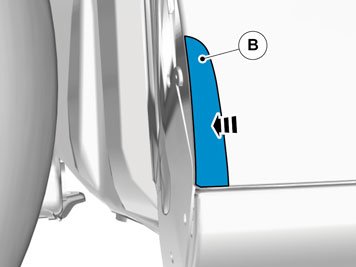

- Attach the protective tape.

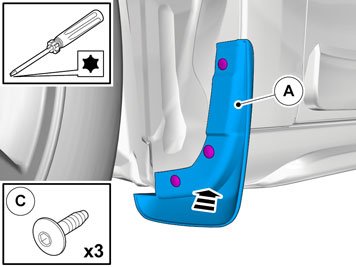

- Install and screw the mudflap into place. Repeat the procedure on the other side.
