Mudflaps, Rear

Mudflaps, rear















INTRODUCTION
- Read through all of the instructions before starting installation.
- Notifications and warning texts are for your safety and to minimize the risk of something breaking during installation.
- Ensure that all tools stated in the instructions are available before starting installation.
- Certain steps in the instructions are only presented in the form of images. Explanatory text is also given for more complicated steps.
- In the event of any problems with the instructions or the accessory, contact your local Volvo dealer.






Mudflaps, rear

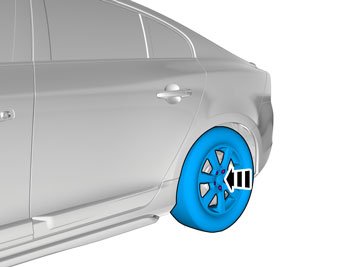

- Remove the wheel.

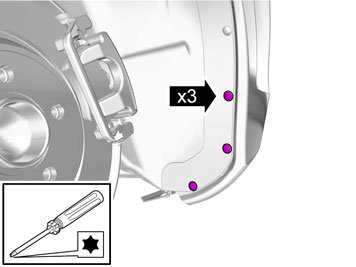

- Remove the screws. These will not be reused.

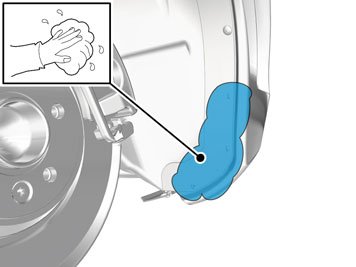

- Clean the area where the mudflap is to be positioned.

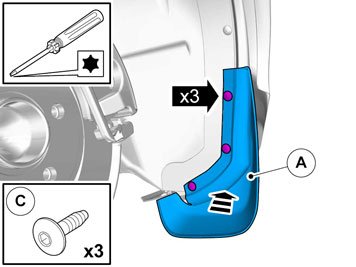

- Install and screw the mudflap into place.





- Install the wheel.
- Tightening torque: 140 Nm
- Repeat the method steps for the other side.
