Signal Specification, Power Seat Module (PSM)

Signal specification

General

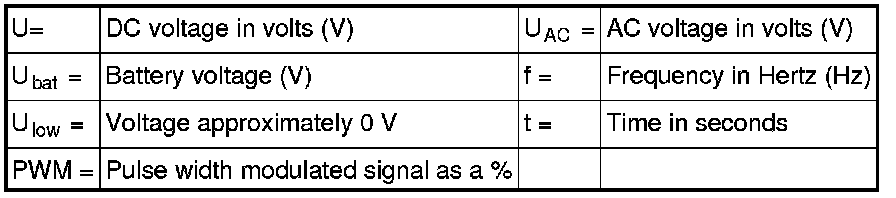

All the values given below are between the respective terminal in column 1 and terminal # C1:7 in column 2 (power ground) unless otherwise stated in brackets after the table entry.

Note! It is important to connect the breakout box and check the ground terminals before taking readings.

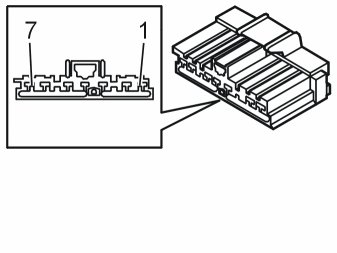

Connector C1

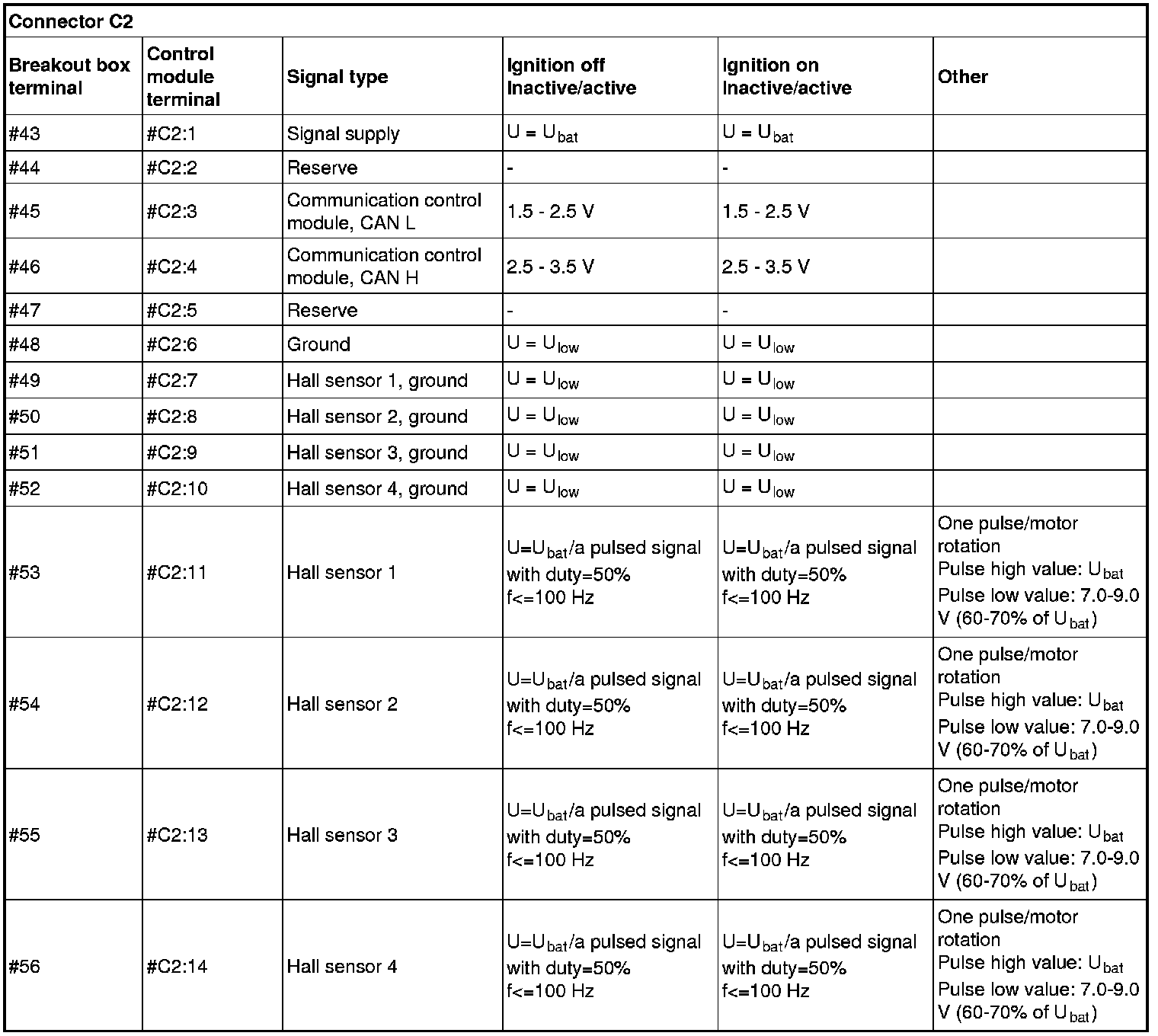

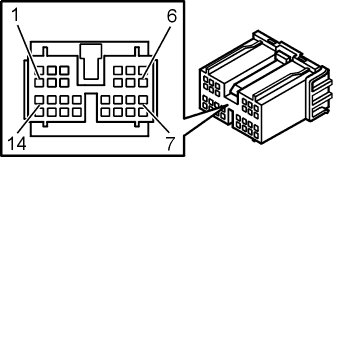

Connector C2
