Front Seat

Operation number: 85210-2

Front seat

Removal

Note! Removal steps in this procedure may contain installation details.

Battery, disconnection Battery Disconnecting and Connecting





Remove side panel front seat Refer to: Side panel front seat Side Panel Front Seat

Remove quick-coupling belt Refer to: Quick-release connector belt Quick-Release Connector Belt

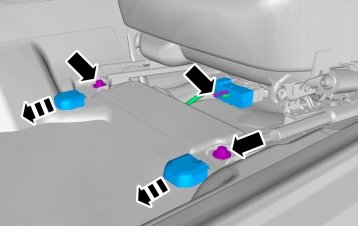

Caution! The number of connectors, cables and cable ties may vary depending on the vehicle specification.

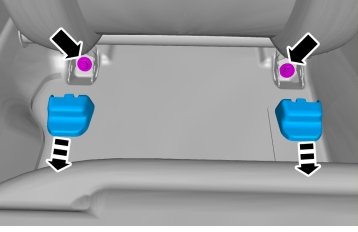

Torque: Front seat to body, 40 Nm




Torque: Front seat to body, 40 Nm

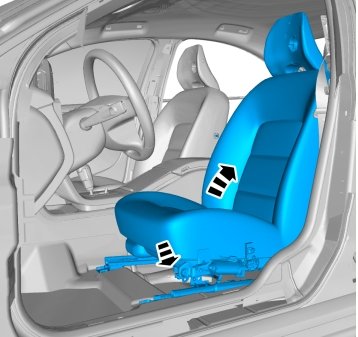

Note! This step requires the aid of another technician.

Installation

To install, reverse the removal procedure.
