Child Seat: Service and Repair

Operation number: 85721-2

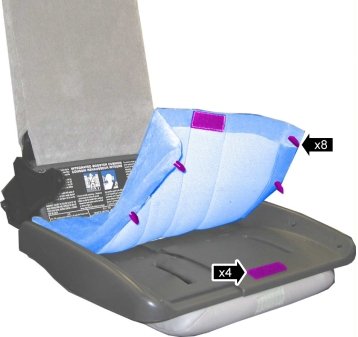

Child safety seat

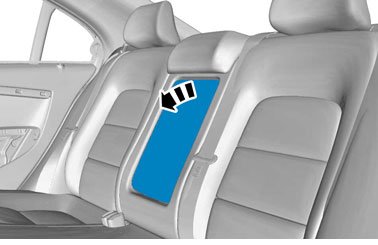

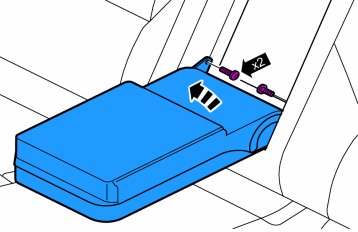

Removal

Note! Removal steps in this procedure may contain installation details.









Caution! Make sure that the component is correctly located on the locating dowels.

Torque: M6, 10 Nm





Installation

To install, reverse the removal procedure.
