Panorama Roof: Overview

Overview

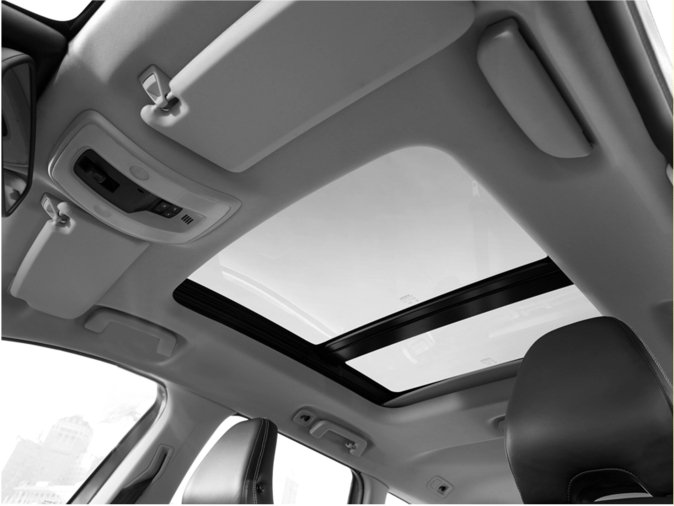

Electrically operated panorama roof




The panorama roof is divided into two sections. The front part opens by sliding over the rear section which is fixed. The roof can be opened 450 mm. The front section can also be tilted upwards at the rear edge for ventilation.
There is an electrically controlled roller blind made of perforated cloth between the panorama roof and the inner roof.
The panorama roof has anti-pinch protection in the form of a sensor that senses if there is an obstruction to closure. In such cases the roof stops and opens 50 mm.
The roof together with side windows can be closed using the remote control.
Both parts of the panorama roof are made of 5mm laminated glass and are colored black to minimize the UV radiation into the passenger compartment.
