Paint, Polishing






Paint, polishing






Adjustment

See information on paint, grinding, and polishing Refer to: Paint, sanding and polishing Paint, Sanding and Polishing

Follow instructions for polishing system Refer to: Polishing system Polishing System

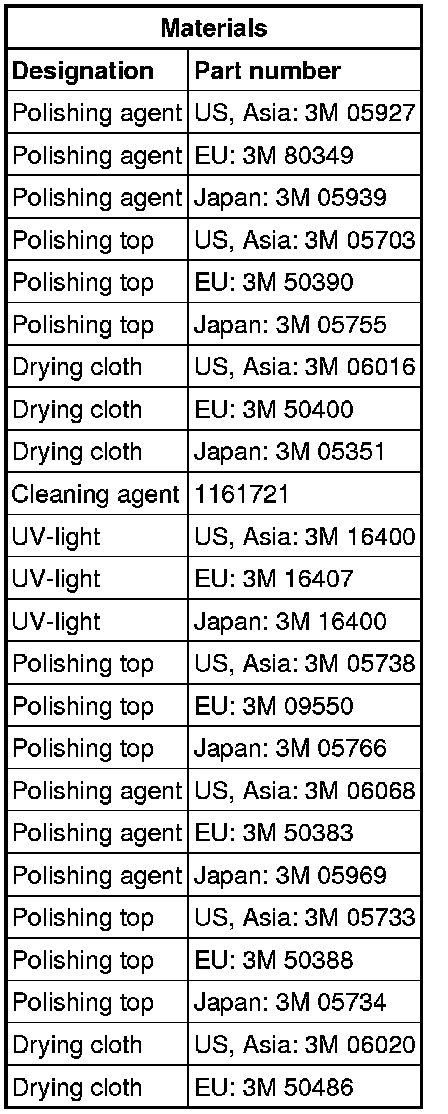

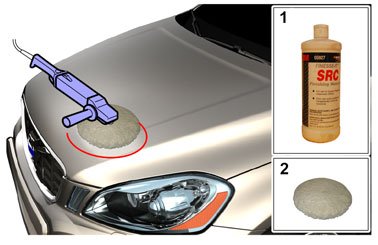

1.
Use: Polishing agent, US, Asia: 3M 05927

Use: Polishing agent, EU: 3M 80349

Use: Polishing agent, Japan: 3M 05939

2.
Use: Polishing top, US, Asia: 3M 05703

Use: Polishing top, EU: 3M 50390

Use: Polishing top, Japan: 3M 05755

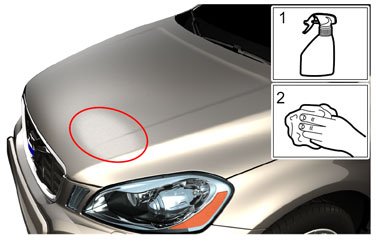

Cleaning




1.
Use: Cleaning agent, 1161721

2.
Use: Drying cloth, US, Asia: 3M 06016

Use: Drying cloth, EU: 3M 50400

Use: Drying cloth, Japan: 3M 05351

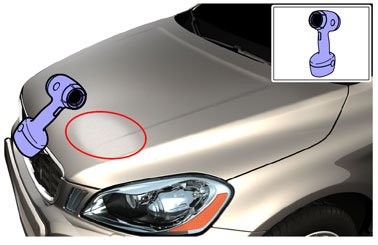

Check





Use: UV-light, US, Asia: 3M 16400

Use: UV-light, EU: 3M 16407

Use: UV-light, Japan: 3M 16400

If the defects cannot be removed by polishing only, follow instructions for sanding.

Perform paint job, grinding Refer to: Paint, sanding Paint, Sanding

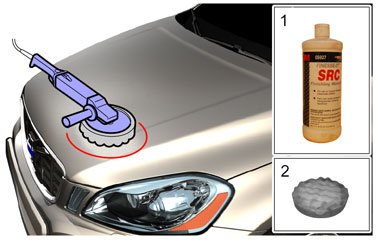

Adjustment




1.
Use: Polishing agent, US, Asia: 3M 05927

Use: Polishing agent, EU: 3M 80349

Use: Polishing agent, Japan: 3M 05939

2.
Use: Polishing top, US, Asia: 3M 05738

Use: Polishing top, EU: 3M 09550

Use: Polishing top, Japan: 3M 05766

Cleaning




1.
Use: Cleaning agent, 1161721

2.
Use: Drying cloth, US, Asia: 3M 06016

Use: Drying cloth, EU: 3M 50400

Use: Drying cloth, Japan: 3M 05351

Check





Use: UV-light, US, Asia: 3M 16400

Use: UV-light, EU: 3M 16407

Use: UV-light, Japan: 3M 16400

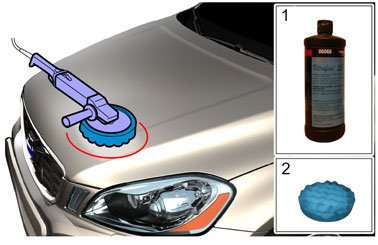

Adjustment




1.
Use: Polishing agent, US, Asia: 3M 06068

Use: Polishing agent, EU: 3M 50383

Use: Polishing agent, Japan: 3M 05969

2.
Use: Polishing top, US, Asia: 3M 05733

Use: Polishing top, EU: 3M 50388

Use: Polishing top, Japan: 3M 05734

Cleaning




1.
Use: Cleaning agent, 1161721

2.
Use: Drying cloth, US, Asia: 3M 06020

Use: Drying cloth, EU: 3M 50486

Use: Drying cloth, Japan: 3M 05351

Check





Use: UV-light, US, Asia: 3M 16400

Use: UV-light, EU: 3M 16407

Use: UV-light, Japan: 3M 16400

Check that all defects are gone.
Check the surface in open sunlight if possible
