Rear View Mirror External

Operation number: 84622-2

Rear view mirror external

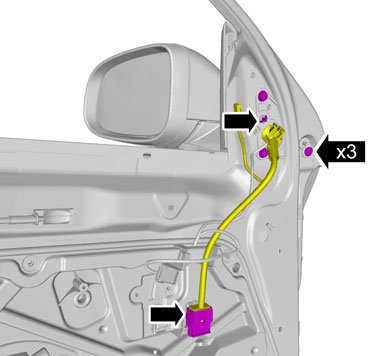

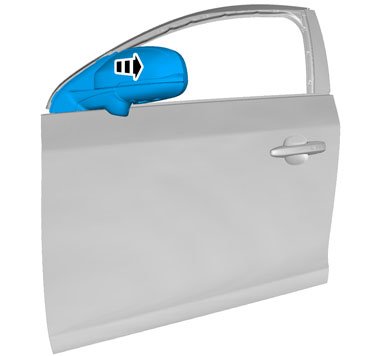

Removal

Note! Removal steps in this procedure may contain installation details.

Remove panel side door front Refer to: Panel front door Panel, Front Side Door, Replacing





Note! Use a new seal.

Torque: Rear view mirror to front door , 8 Nm





Installation

To install, reverse the removal procedure.
