Door Lock Cylinder: Service and Repair

Operation number: 83408-2

Lock cylinder, door

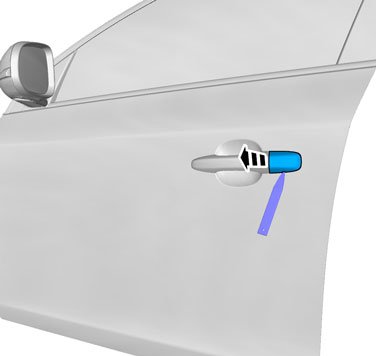

Removal

Note! Removal steps in this procedure may contain installation details.

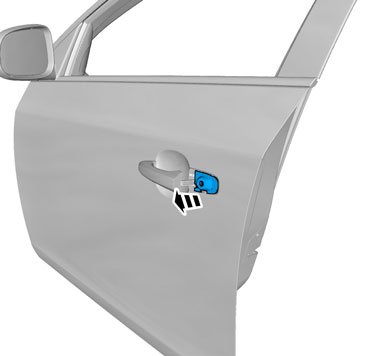

Caution! Pull the door handle outwards and hold it in the pulled out position.

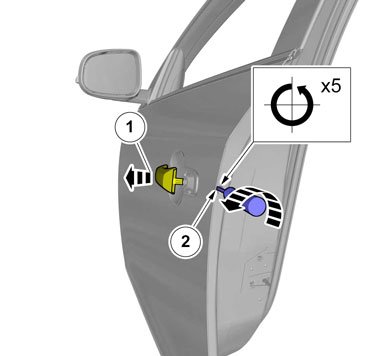

Torque: M5, 5 Nm





Installation

To install, reverse the removal procedure.
