A-Pillar Trim Panel






A-pillar trim panel

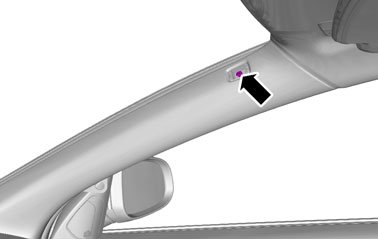

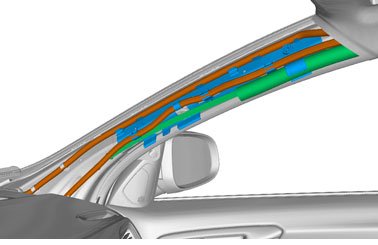

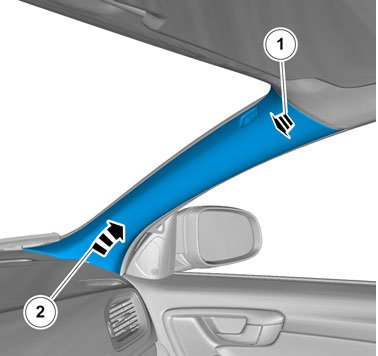

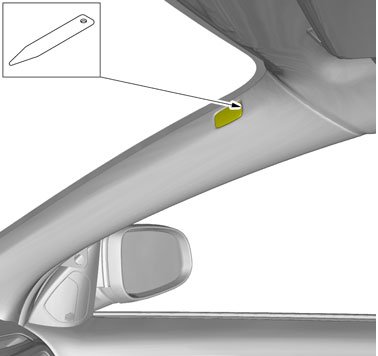

Removal

Note! Removal steps in this procedure may contain installation details.








Torque: Panel A-pillar, 3 Nm









Installation

To install, reverse the removal procedure.
