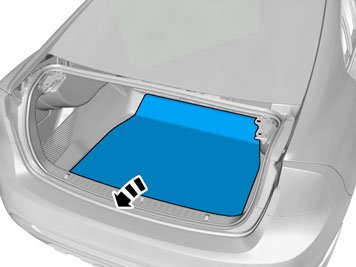

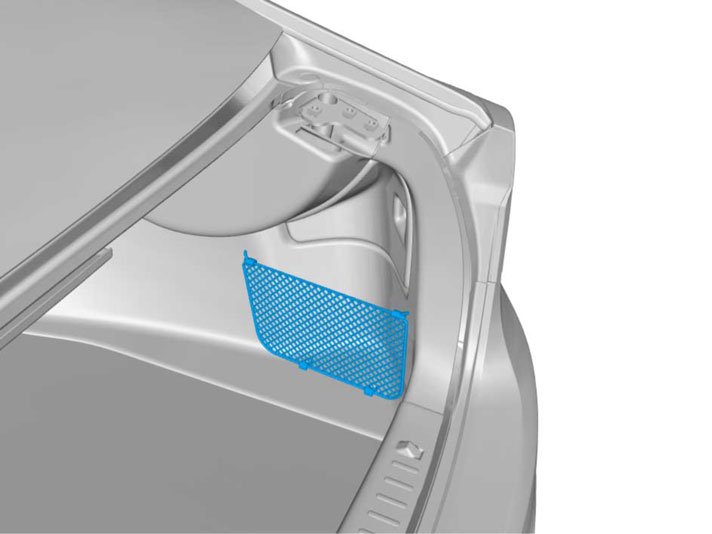

Mesh Pocket, Cargo Compartment, Side Panel

Mesh pocket, cargo compartment, side panel

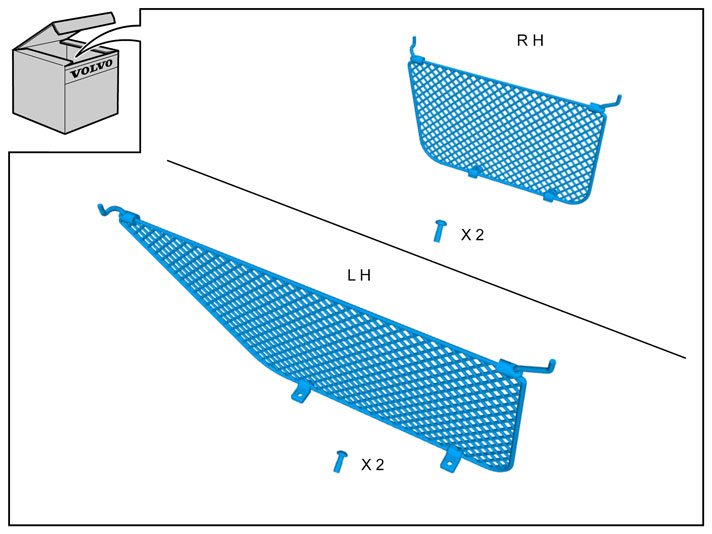

INTRODUCTION
- Read through all of the instructions before starting installation.
- Notifications and warning texts are for your safety and to minimize the risk of something breaking during installation.
- Ensure that all tools stated in the instructions are available before starting installation.
- Certain steps in the instructions are only presented in the form of images. Explanatory text is also given for more complicated steps.
- In the event of any problems with the instructions or the accessory, contact your local Volvo dealer.






Mesh pocket, cargo compartment, side panel






Mesh pocket right side

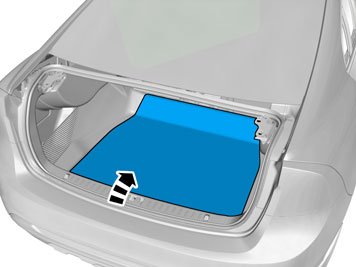

- Apply the strips of tape as illustrated.

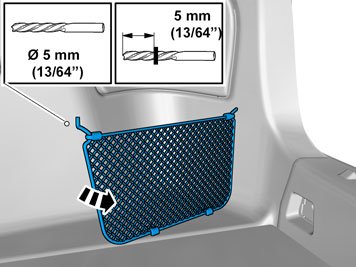

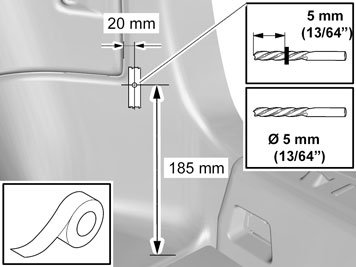

- Make marks for drilling holes for the mesh pocket mountings.
- Drill out the hole.

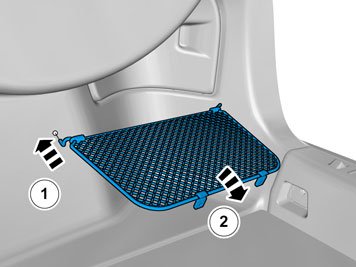

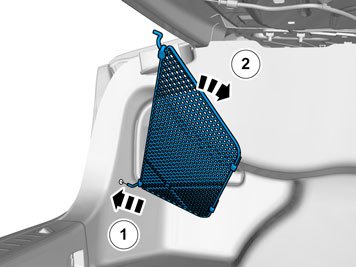

- Insert the pocket's rear mounting in the hole in the panel and fold down.





- Insert the mesh pocket's front mounting towards the panel and lower end towards the floor.





- Move the front mounting to one side and drill the hole.

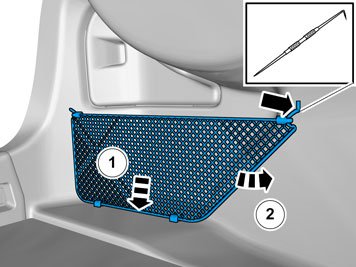

- Insert the front mounting in the panel and fold down the mesh pocket.

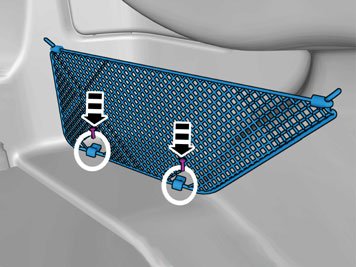

- Drill out the holes in the panel through the two clips.





- Tighten the mesh pocket's lower end






Mesh pocket left side
- Apply the strips of tape as illustrated.

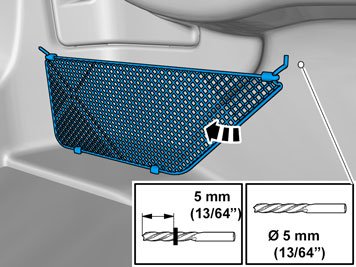

- Make marks for drilling holes for the mesh pocket mountings.
- Drill out the hole.

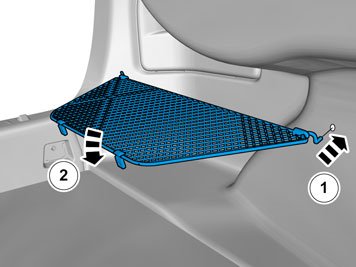

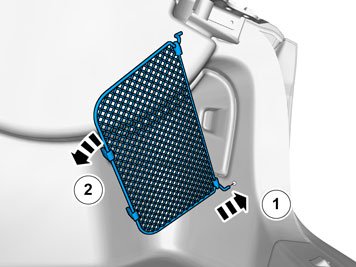

- Insert the rear mounting in the panel and fold down the mesh pocket.





- Insert the mesh pocket's front mounting towards the panel and lower end towards the floor.
- Mark the hole in the panel level with the middle of the radius of the bent wire frame.





- Move the front mounting to one side and drill the hole.

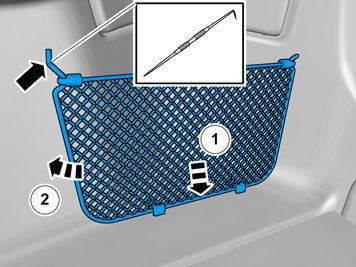

- Insert the front mounting in the panel and fold down the mesh pocket.

Applies to vehicles with control module for electric hand brake.

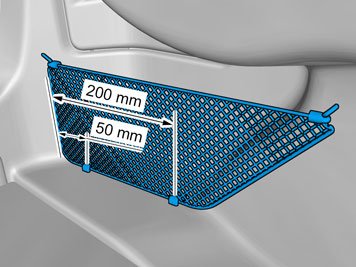

- Measure and place the clips in the wire frame. Measure between the rear edge panel and center.










- Remove the clips.

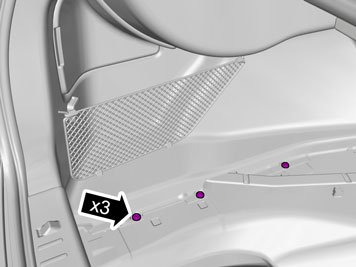

- Lift up the panel and check that the clips are positioned so that the control module and cable harness are not drilled. Move the clips if necessary.
- Reinstall the panel.











Applies to all models

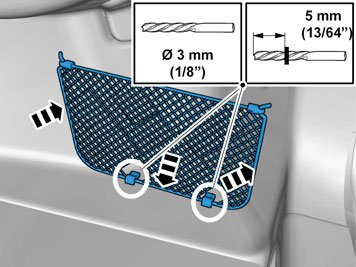

- Drill out the holes in the panel through the two clips.





- Tighten the mesh pocket's lower end.
