Glasses Holder, Entry Handle

Glasses holder, entry handle























INTRODUCTION
- Read through all of the instructions before starting installation.
- Notifications and warning texts are for your safety and to minimize the risk of something breaking during installation.
- Ensure that all tools stated in the instructions are available before starting installation.
- Certain steps in the instructions are only presented in the form of images. Explanatory text is also given for more complicated steps.
- In the event of any problems with the instructions or the accessory, contact your local Volvo dealer.






Glasses holder, entry handle

Note! Some steps in these installation instructions are presented with illustration only.

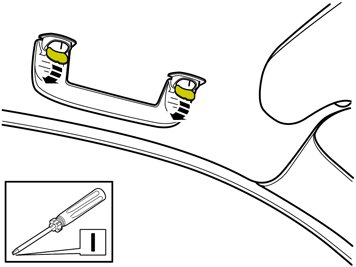

Use: Electrician's screwdriver










- This will not be reused.

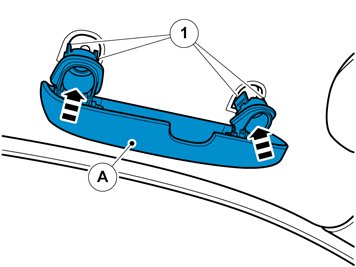

- Make sure that the four retaining plates (1) sit on each side of the nut plates where the glasses holder will be fastened. If there is not enough room for the plate, it can be broken off and discarded.

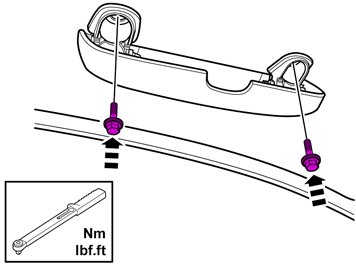

- Torque tighten the screws to 8Nm (6 lbf.ft.)
