Front Fender: Service and Repair

Operation number: 80201-0

Fender






Removal

Note! Removal steps in this procedure may contain installation details.

Remove the following items:
- Cover bumper front Refer to: Cover bumper front, B6304T4, B5254T5 Service and Repair
- Sill panel Refer to: Sill panel
- A-Pillar Moulding Refer to: A-Pillar Moulding Service and Repair

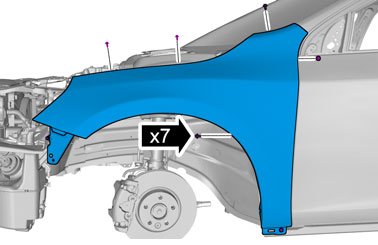

Torque: M6, 10 Nm

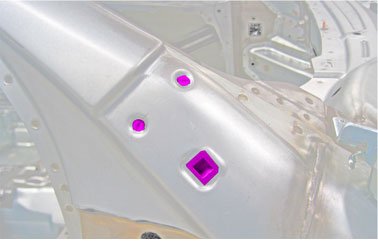

Follow the instructions regarding corrosion protection.

Installation

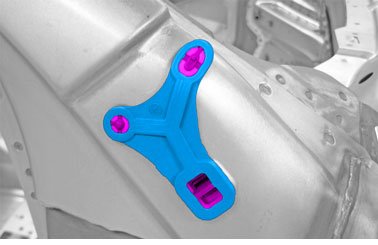

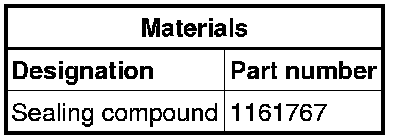

Use: Sealing compound, 1161767





Use: Sealing compound, 1161767

To install, reverse the removal procedure.
