Trunk / Liftgate Latch: Service and Repair

Operation number: 83432-2

Door latch, luggage compartment lid

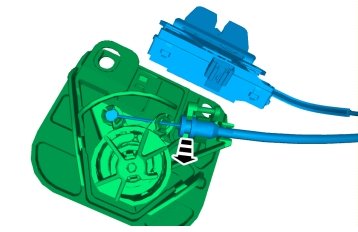

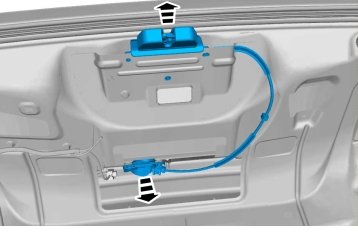

Removal

Note! Removal steps in this procedure may contain installation details.

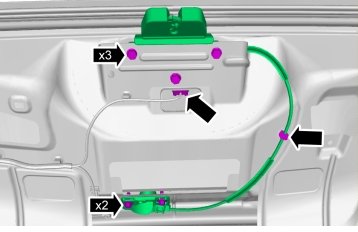

Remove panel, tailgate Refer to: Panel, luggage compartment lid




1. Torque: Door latch to luggage compartment lid, 20 Nm

2. Torque: M6, 10 Nm









Installation

To install, reverse the removal procedure.
