Body - Sticking Outer Door Handle

Title: Sticking Outer Door Handle

Ref No: US20904.4.1 en-GB

Issuer: -

Partner: 3 US 7510 Volvo Cars north America

Func Group: 8317

Func Desc: door operation, electrical; door operati

Status: Released

Status Date 2011-10-05

Issue Date: 2011-10-03

Reference: VIDA





Attachment

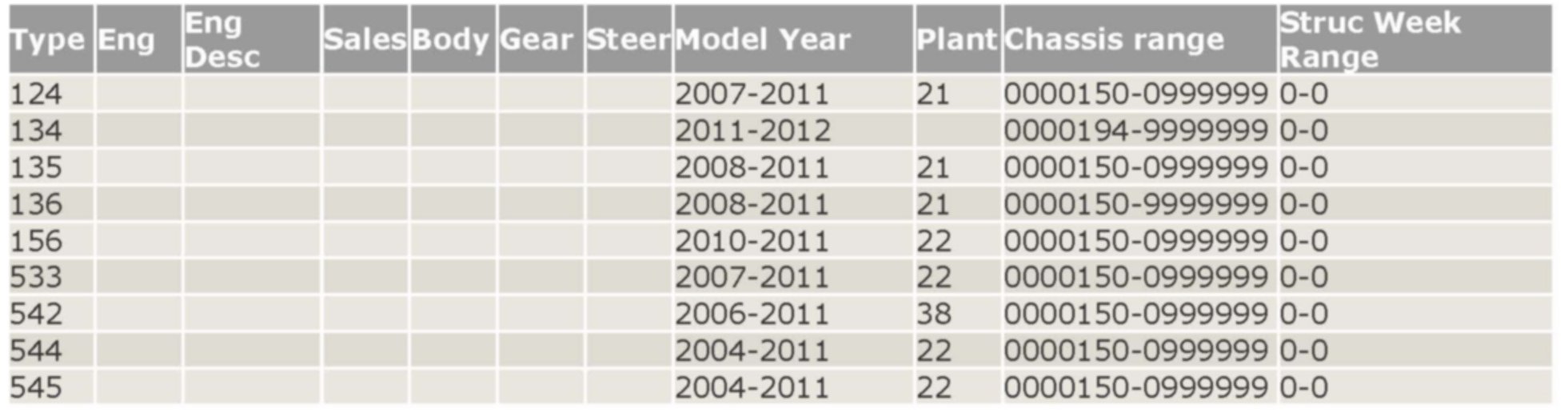

Vehicle Type

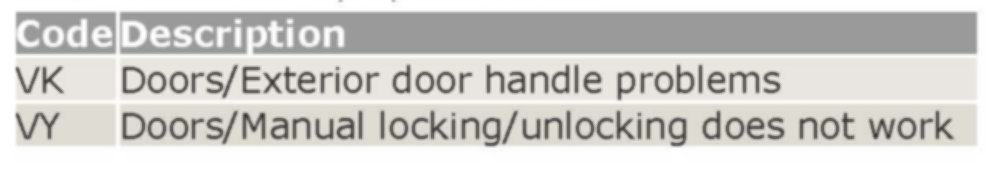

CSC Customer Symptom Codes

DTC Diagnostic Trouble Codes

Text

CSC = Customer Symptom Code
DTC = Diagnostic Trouble Code

Note!
If using a printed copy of this Retailer Technical Journal, first check for the latest online version.

NOTE!
THIS DOCUMENT SUPERSEDES THE PREVIOUS RETAILER TECHNICAL JOURNAL *20904* DATED 2011-10-03 (S60 added). PLEASE UPDATE YOUR FILES.

DESCRIPTION:
This method describes the repair method for sticking outer door handles.

Depending on humidity and low temperature, there is a possibility that the outer door handle does not return to the original position after operation.

This does not effect the locking/unlocking!!

SERVICE:

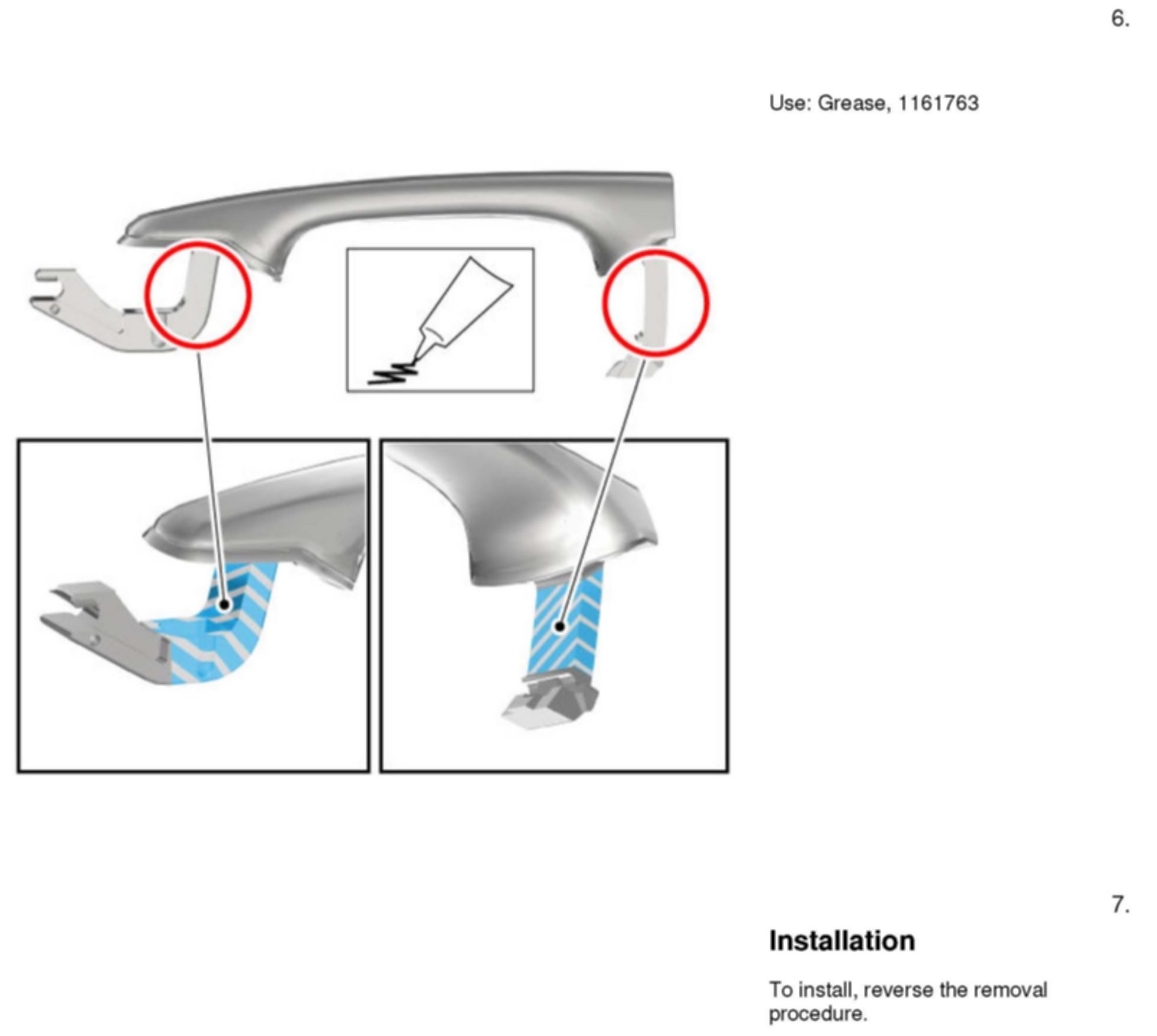

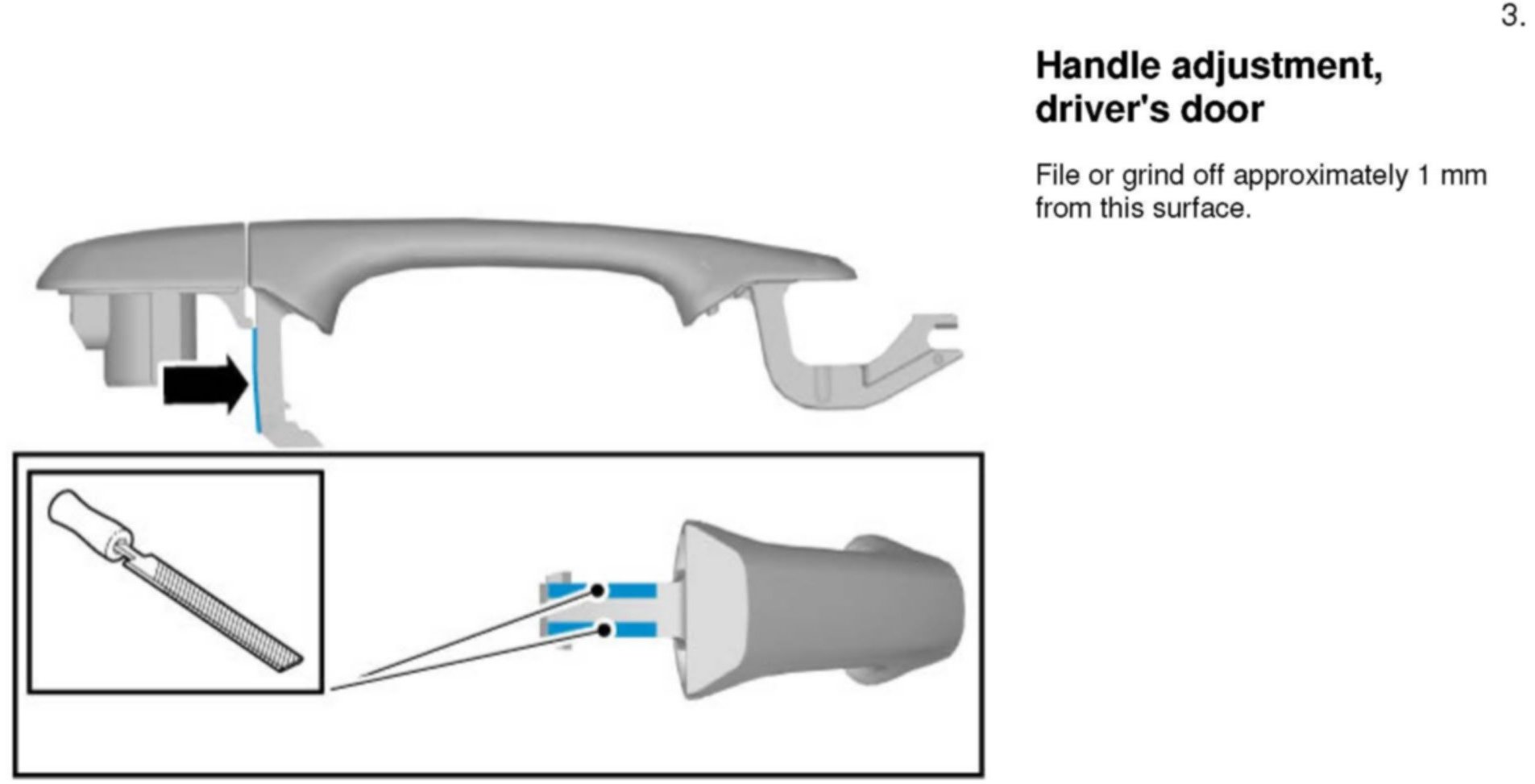

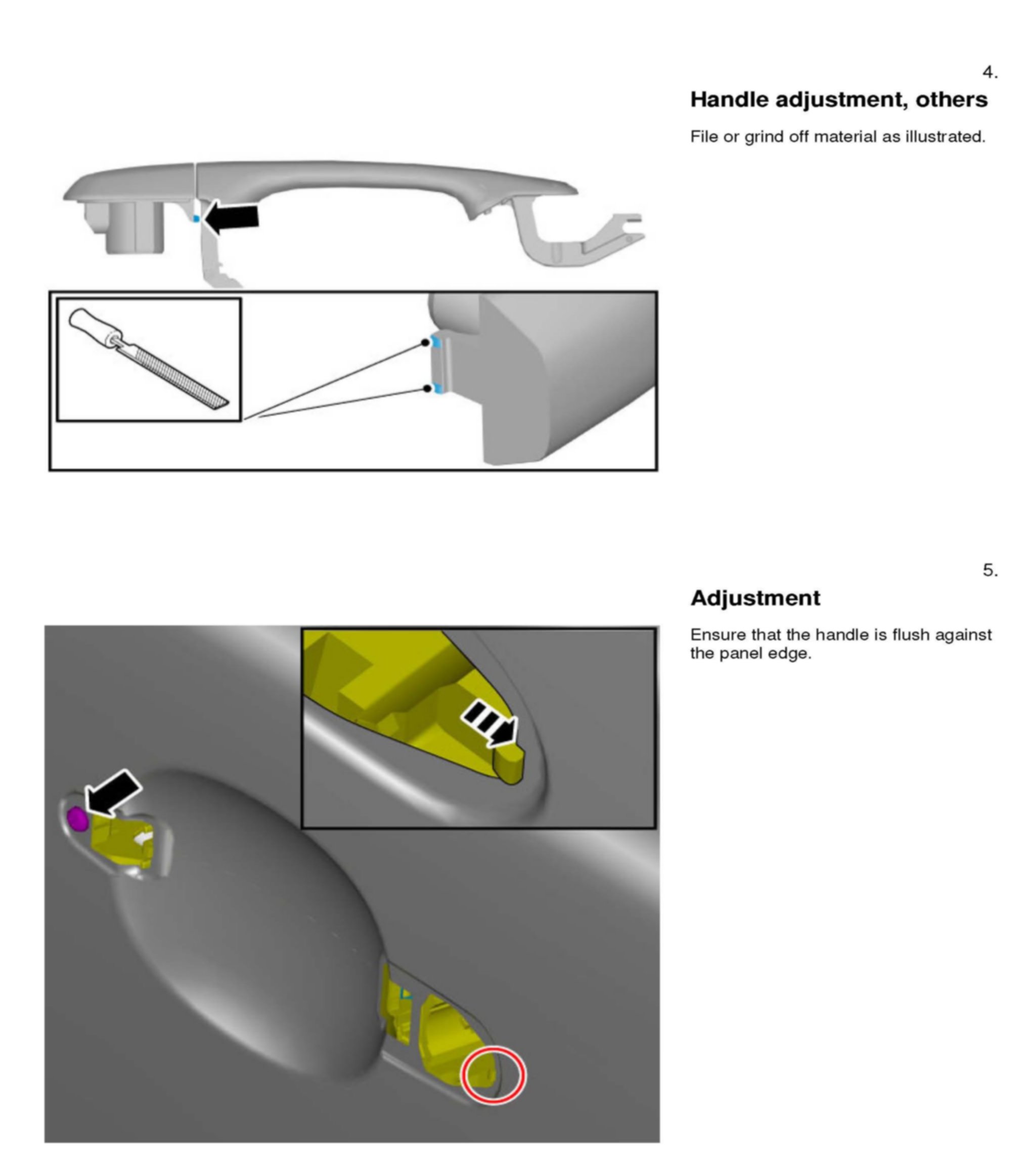

Follow the attached repair instructions:

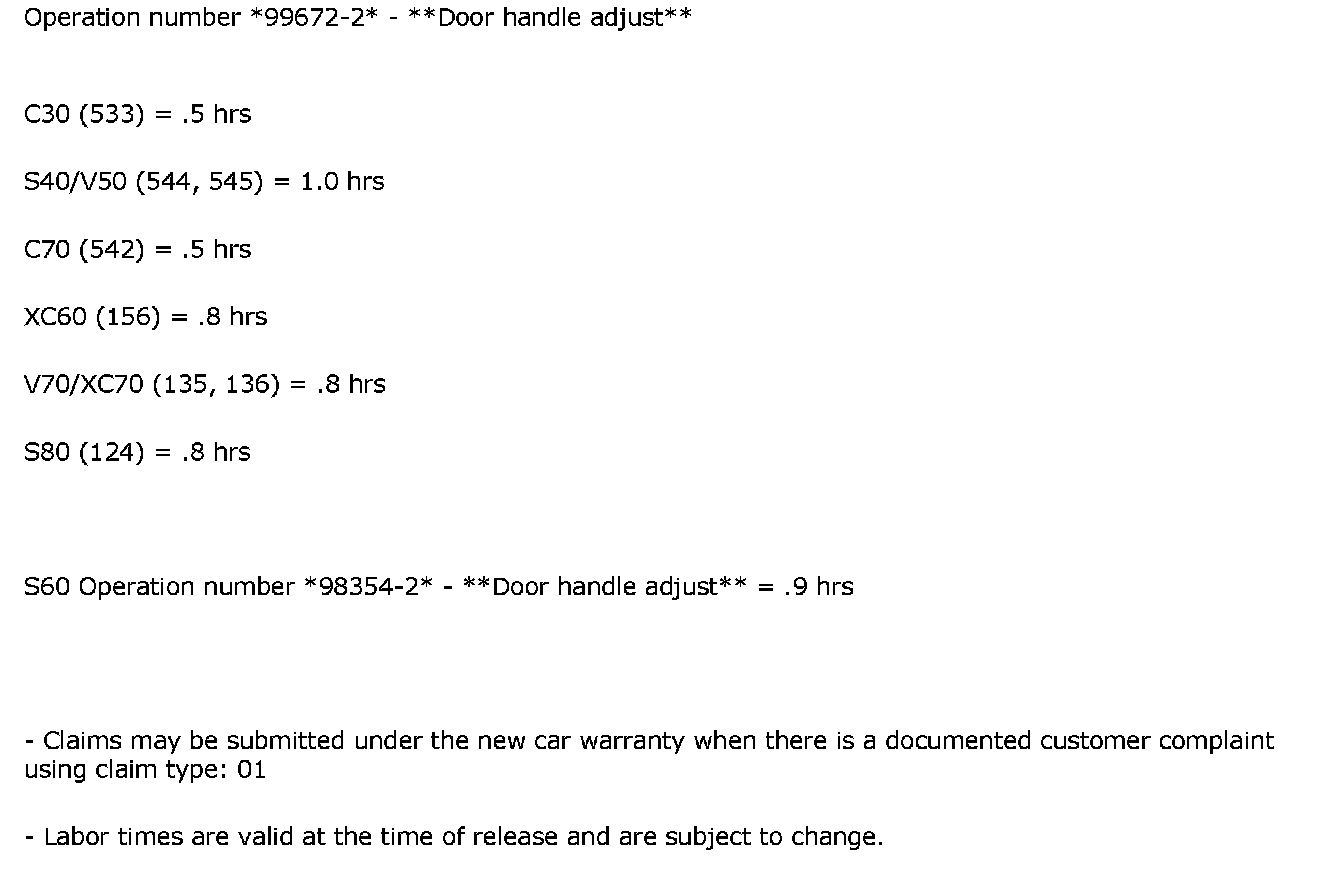

VOLVO STANDARD TIMES GUIDE (VSTG) INFO

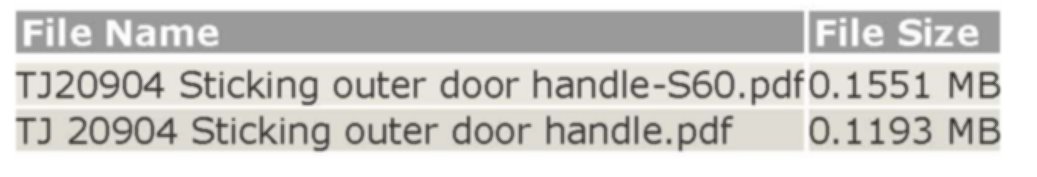

ATTACHMENT














TJ Instructions - August 2011

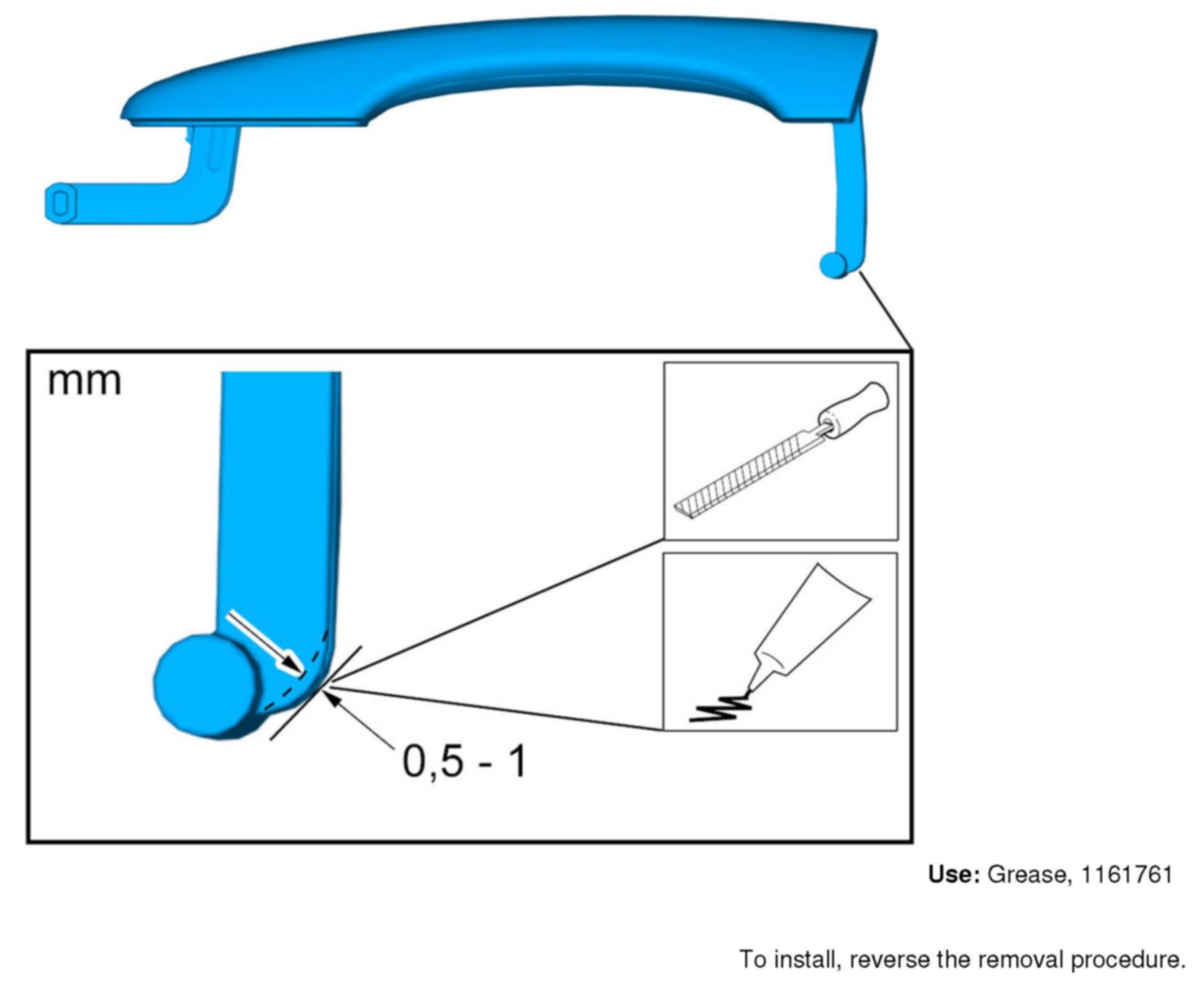

TJ Instructions - October 2011
