Hood Latch: Service and Repair

Door latch hood

Removal

Note! Removal steps in this procedure may contain installation details.

Remove casing bumper front Refer to: Cover bumper front, B6304T4, B5254T5 Service and Repair

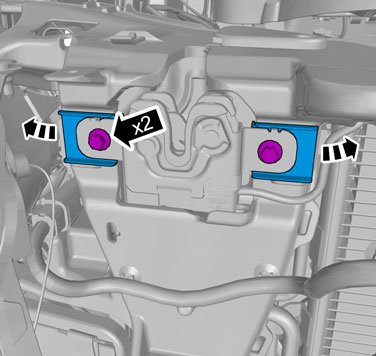

Torque: M6, 10 Nm





Note! Make sure that the bolts are not tightened until the hood is closed.

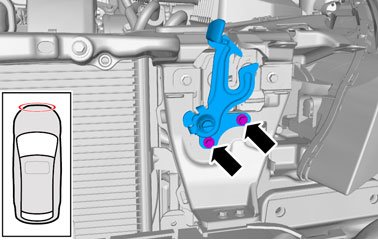

Torque: M6, 10 Nm

On both sides.













Installation

To install, reverse the removal procedure.
