Control Lock Engine Hood






Control lock engine hood

Removal

Note! Removal steps in this procedure may contain installation details.

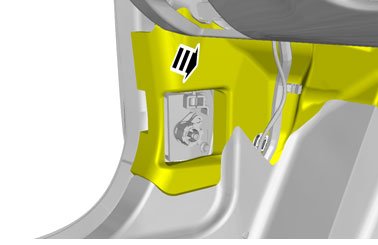

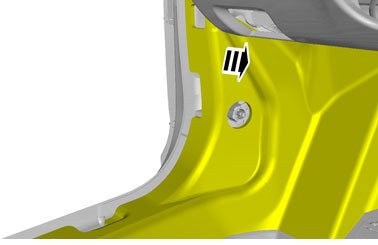

Remove sill molding front Refer to: The front sill trim panel Front Sill Trim Panel

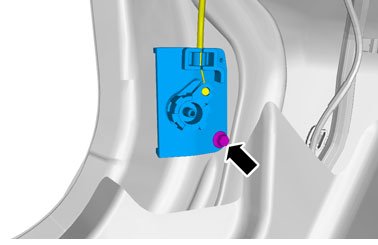

Torque: M6, 10 Nm

Installation

To install, reverse the removal procedure.
