Rear Door: Service and Repair

Operation number: 83112-2

Side door rear

Removal

Note! Removal steps in this procedure may contain installation details.

Remove the following items:
- Doorstop, door rear Refer to: Doorstop, door rear Service and Repair
- Door latch, rear door Refer to: Door latch, rear door Service and Repair
- Lift mechanism, rear door Refer to: Lift mechanism, rear door Service and Repair
- Window, rear door Refer to: Window, rear door Window, Rear Door

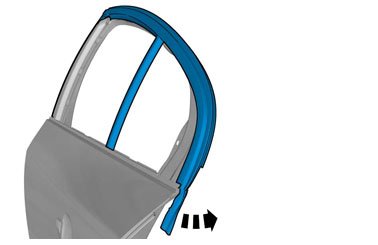

Caution! Make sure that the component is not bent.

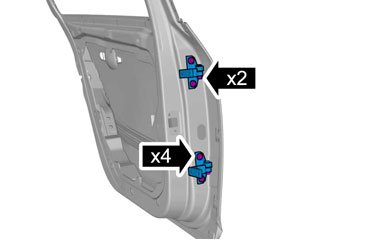

Torque: M8, 24 Nm

Installation

Follow the instructions regarding corrosion protection.

To install, reverse the removal procedure.
