Rear Door Hinge: Service and Repair

Operation number: 83156-2

Hinge side door rear

Removal and Installation

Remove the following items:
- B-pillar trim panel Refer to: B-pillar trim panel B-Pillar Trim Panel
- Doorstop, door rear Refer to: Doorstop, door rear Service and Repair

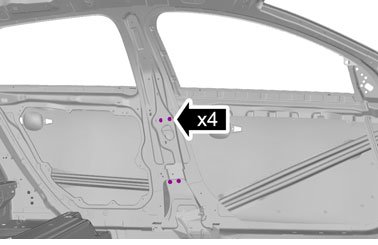

Torque: M8, 24 Nm

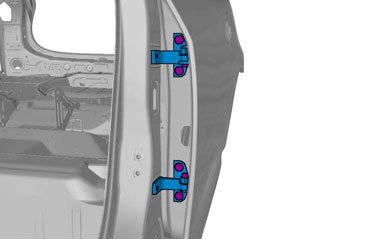

Torque: M8, 24 Nm

Install the following items:
- Doorstop, door rear Refer to: Doorstop, door rear Service and Repair
- B-pillar trim panel Refer to: B-pillar trim panel B-Pillar Trim Panel
