Front Door: Service and Repair

Operation number: 83110-2

Front door

Removal

Note! Removal steps in this procedure may contain installation details.

Remove the following items:
- Lift mechanism, front door Refer to: Lift mechanism, front door Service and Repair
- Rear view mirror external Refer to: Rear view mirror external Rear View Mirror External
- Door stop front side door Refer to: Door stop front side door Service and Repair





Caution! Make sure that the component is not bent.

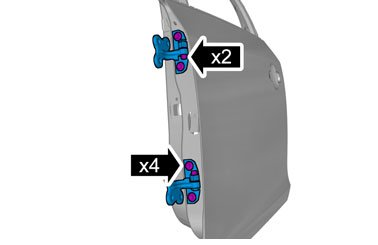

Torque: M8, 24 Nm

See information about corrosion protection.

Installation

To install, reverse the removal procedure.
