Rear Bumper Reinforcement: Service and Repair

Operation number: 86131-3

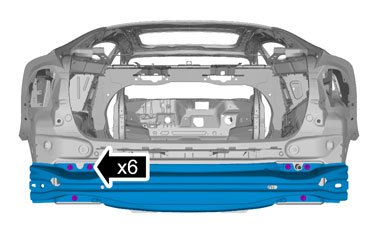

Rear bumper rail

Removal

Remove casing bumper rear Refer to: Cover bumper rear Service and Repair

Follow the instructions regarding rear piece Refer to: Rear section




Torque: M10, 50 Nm

Installation

Perform collision protection unit from behind front seat Refer to: Collision protection unit from behind front seat Collision Protection Unit From Behind Front Seat
