Rear Bumper Cover / Fascia: Service and Repair

Operation number: 86171-286101-289137-2

Cover bumper rear

Removal

Note! Removal steps in this procedure may contain installation details.

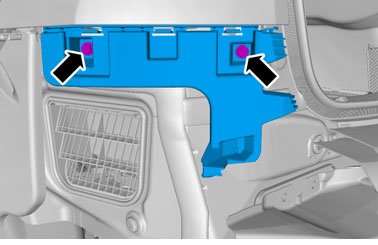

On both sides.

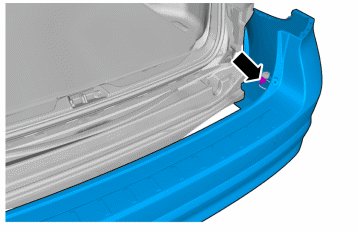

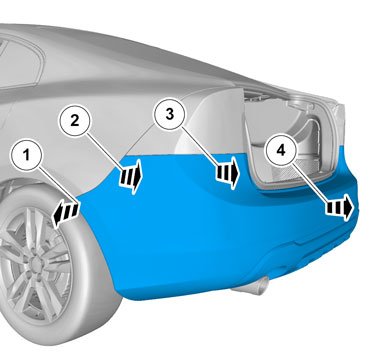

Note! This step requires the aid of another technician.












On both sides.

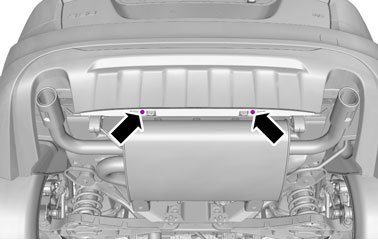

Torque: M5, 5 Nm

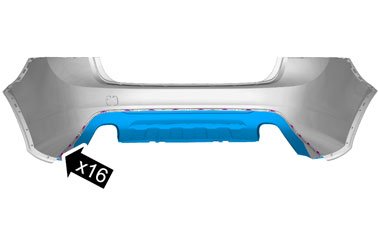

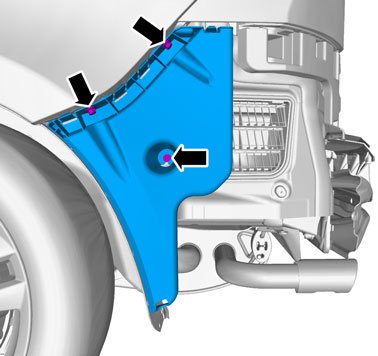

On both sides.
Torque: M5, 5 Nm

Installation

To install, reverse the removal procedure.
