Front Bumper Cover / Fascia: Service and Repair

Operation number: 86170-286103-2

Cover bumper front

Removal

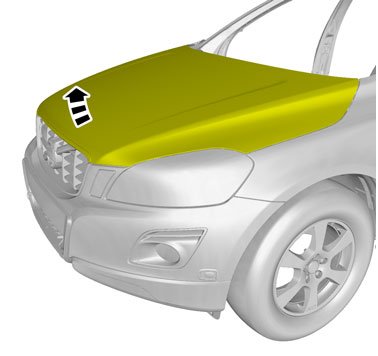

Note! Removal steps in this procedure may contain installation details.












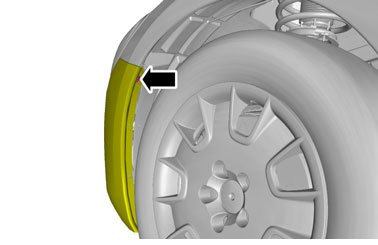

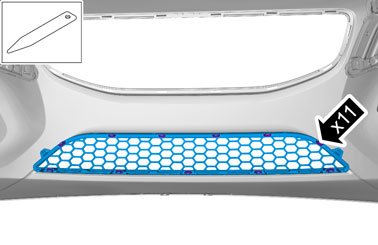

On both sides.












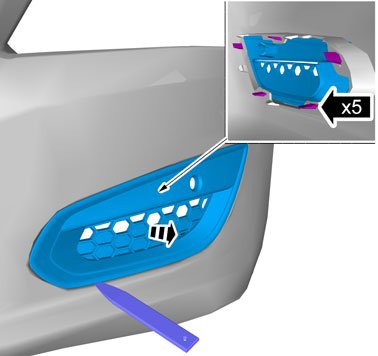

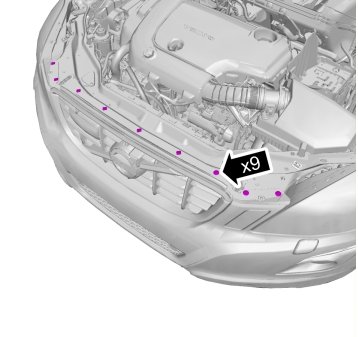

On both sides.





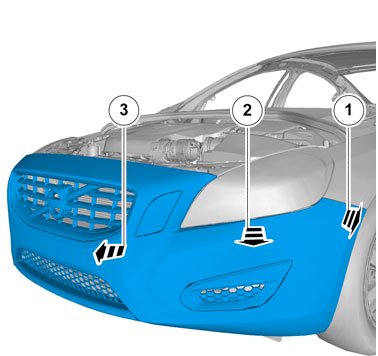

Note! This step requires the aid of another technician.

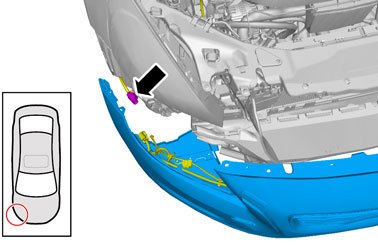

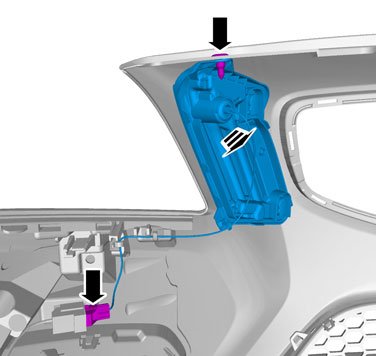

On both sides.

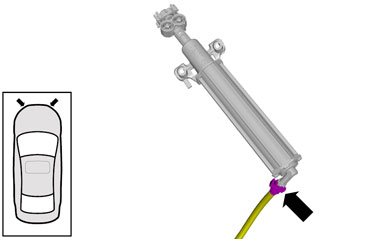

Warning! Be prepared to collect escaping fluid.

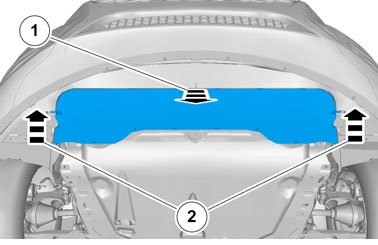

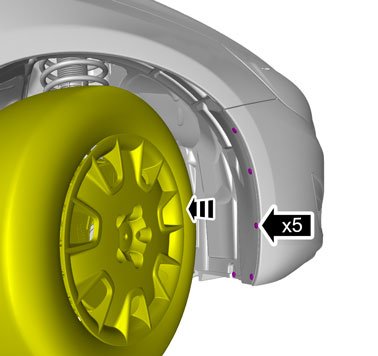

On both sides.





Remove the radiator masking Refer to: Radiator Grille Service and Repair








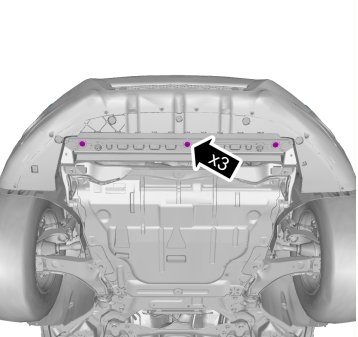

On both sides.




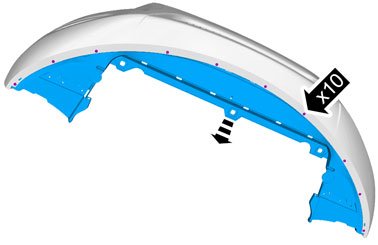

On both sides.




On both sides.
Torque: Bracket to front fender, 6 Nm

Installation

To install, reverse the removal procedure.

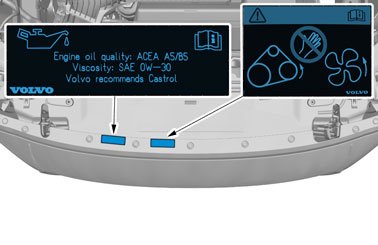

Note! The following steps are only necessary when installing a new component.

Follow the instructions regarding components with double-sided adhesive tape Refer to: Components with double-sided tape Removal and Replacement





Note! Make sure that new components are installed.
