Description of Parameters

Description of parameters

Parameters, status

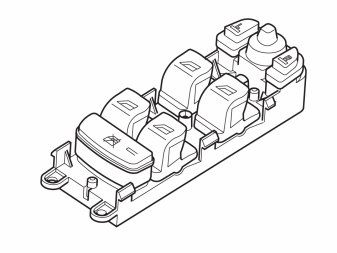

Note! The illustration shows the control panel for the driver door in a left-hand drive car. The control panel and numbering in a right-hand drive car is the mirror image of left-hand drive.

Control panel in driver's door




1. Button for operating driver's door window.
2. Button for operating passenger door window.
3. Button for operating rear door window on driver's side.
4. Button for operating rear door window on passenger side.

Front driver's side, window button up
Readout of whether the control module perceives window button 1 as active or inactive in the up direction.

Front driver's side, window button down
Readout of whether the control module perceives window button 1 as active or inactive in the down direction.

Front passenger side, window button up
Readout of whether the control module perceives window button 2 as active or inactive in the up direction.

Front passenger side, window button down
Readout of whether the control module perceives window button 2 as active or inactive in the down direction.

Rear driver's side, window button up
Readout of whether the control module perceives window button 3 as active or inactive in the up direction.

Rear driver's side, window button down
Readout of whether the control module perceives window button 3 as active or inactive in the down direction.

Rear passenger side, window button up
Readout of whether the control module perceives window button 4 as active or inactive in the up direction.

Rear passenger side, window button down
Readout of whether the control module perceives window button 4 as active or inactive in the down direction.

Window motor, up
Readout of whether the control module perceives the driver's door window motor as active or inactive in the up direction.

Window motor, down
Readout of whether the control module perceives the driver's door window motor as active or inactive in the down direction.

Parameters, value

ECU power supply
Readout of power supply to the control module.

Driver's door mirror position, X axis
Read-out of potentiometer for horizontal setting of rear-view mirror in the driver door.
Unit: Digital representation of present position. Type value, approx 20 - 240.

Driver's door mirror position, Y axis
Read-out of potentiometer for vertical setting of rear-view mirror in the driver door.
Unit: Digital representation of present position. Type value, approx 20 - 240.
