System Overview

System overview

Front door control modules




The driver door module (DDM) and the passenger door module (PDM) are broadly similar in terms of functionality. Both these control modules are described in common in this document. In those cases the differences between the driver door module (DDM) and the passenger door module (PDM) are given. The main task of both control modules is to manage:
- window lift
- the door lock
- door mirror adjustment
- door mirror folding
- door mirror heating
- approach lighting
- turn signals in the door mirrors.
- Blind spot information system (BLIS)
The control modules are located in the respective door. The driver door module (DDM) on the driver's side and the passenger door module (PDM) on the passenger side.
The driver door module (DDM) and passenger door module (PDM) communicate with directly connected components and with other control modules and components connected via CAN communication.
The driver door module (DDM) communicates with the control panel in the driver's door via LIN communication.
Driver door module (DDM) and Passenger door module (PDM) communicate with Left rear door module (LDM) and Right rear door module (RDM) on each side of the vehicle via LIN-communication.
Both control modules check activations and input and output signals via an integrated diagnostic system. A diagnostic trouble code (DTC) is stored if either of the control module detects a fault. The diagnostic trouble codes (DTCs) for the control modules in the rear doors are stored in the respective control module in the front doors.
Any diagnostic trouble codes are stored in the relevant control module memory. The data can be read off using the diagnostic tool.
A simple way to ensure that the control modules are powered and grounded is to activate one of the functions that are operated via the switches on the control panels in the respective door. The control module is powered and grounded if any of the functions are working.
For further information, also see Signal specifications.

Control modules in the rear doors




The left rear door module (LDM) and right rear door module (RDM) are the same and only handle the power window and door lock functions in their respective door. The control modules are located in the respective rear door.
The left rear door module (LDM) and right rear door module (RDM) communicate with directly connected components and with the control module for the front door on the relevant side of the vehicle via LIN-communication.
Both control modules check activations and input and output signals via an integrated diagnostic system. A diagnostic trouble code (DTC) is stored if either of the control module detects a fault. The diagnostic trouble codes (DTCs) for the control modules in the rear doors are stored in the respective control module in the front doors.
Any diagnostic trouble codes are stored in the relevant control module in the front doors. The data can be read off using the diagnostic tool.
A simple way to ensure that the control modules are powered and grounded is to activate one of the functions that are operated via the switches on the control panels in the respective door. The control module is powered and grounded if any of the functions are working.
For further information, also see Signal specifications.

Signals

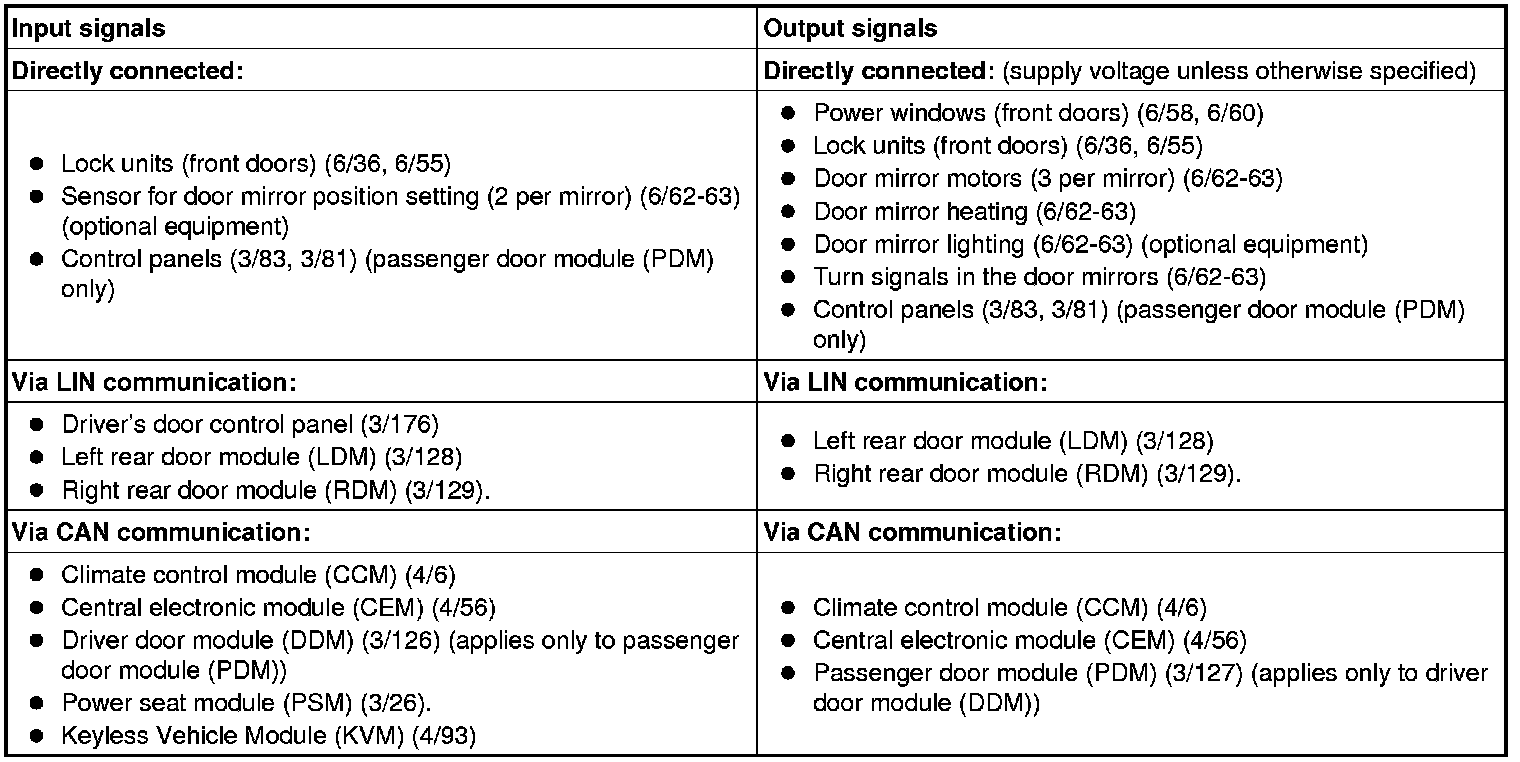

The table below summarizes the input signals to and output signals from the driver door module (DDM) and passenger door module (PDM). The signal types are divided into directly connected signals, LIN and CAN communication. The illustration below displays the same information with the Volvo component designations.
