Checking Loudspeaker Element

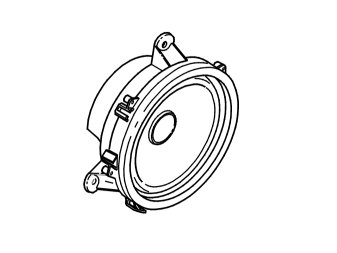

Checking loudspeaker element

Fault-tracing

Note! This fault tracing only applies to vehicles with Premium Sound audio equipment.

To determine whether a loudspeaker element works or not, it is appropriate to activate a test sequence that sends sent frequencies to all loudspeakers. The Audio module (AUD) can detect a defective loudspeaker element after the test sequence.
Carry out as follows to check the loudspeaker elements:

Note! The test sequence consists of high tones. Therefore, do not go near the speakers during the test.

- Press the symbol for VCT2000 in order to start the test sequence.
- Read off the result.

Action
Fault-tracing Fault-Tracing Information









Continue - FAULT FOUND

-------------------------------------------------
