Digital Radio DAB
Digital radio, DAB
INTRODUCTION
- Read through all of the instructions before starting installation.
- Notifications and warning texts are for your safety and to minimize the risk of something breaking during installation.
- Ensure that all tools stated in the instructions are available before starting installation.
- Certain steps in the instructions are only presented in the form of images. Explanatory text is also given for more complicated steps.
- In the event of any problems with the instructions or the accessory, contact your local Volvo dealer.
Digital radio, DAB
Note! Some steps in these installation instructions are presented with illustration only.
Applies to all models
- Turn the ignition key to position 0.
Note! Wait at least three minutes before unplugging the connectors or removing other electrical equipment.

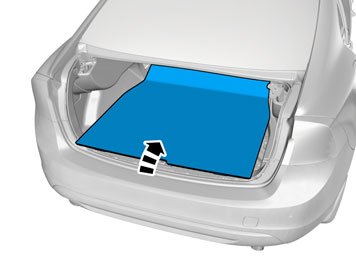

Applies to the S60

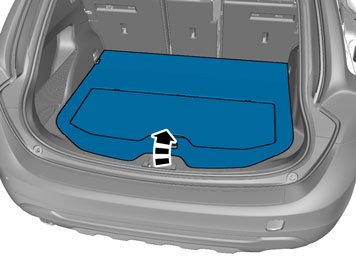

Applies to the V60
Applies to all models

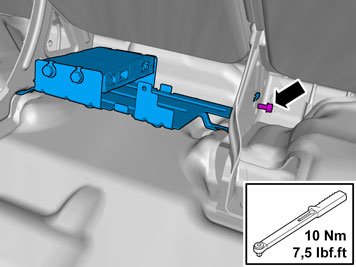

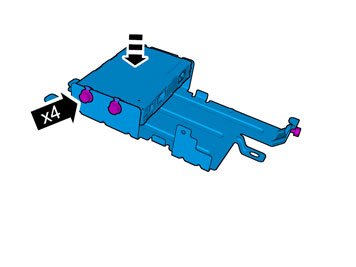

- Install the receiver in the bracket and tighten.
Applies to the S60

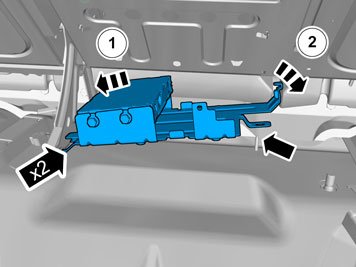

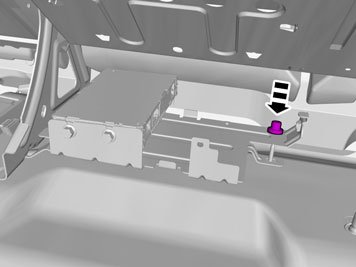

- Install the unit with bracket on the reverse of the rear backrest and lugs in the floor.
- Take the adapter wiring from the kit and connect the large connector to the receiver, and push the clips for the cables in the holes and panel edge in the bracket.

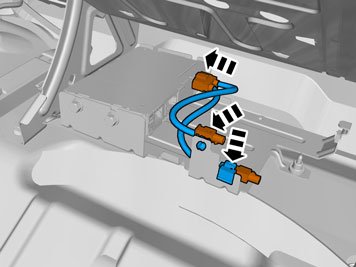

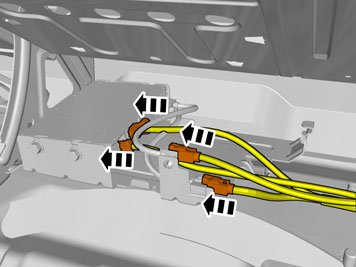

- Connect the four pre-routed power, antenna and fibre optic cables to the receiver and adapter wiring. The cables can be found under the mat where the unit is to be positioned.
Applies to the V60

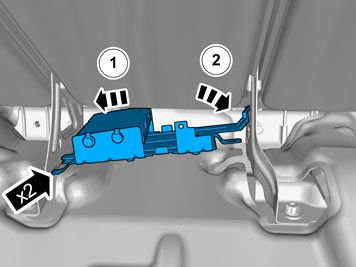

- Install the unit with bracket on the reverse of the rear backrest.
- Take the adapter cable from the kit and connect the large connector to the receiver, and push the clips for the cables in the holes and panel edge in the bracket.

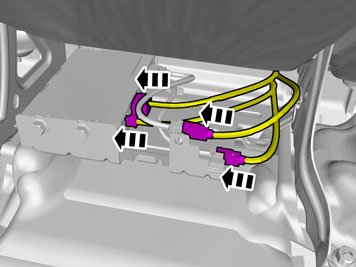

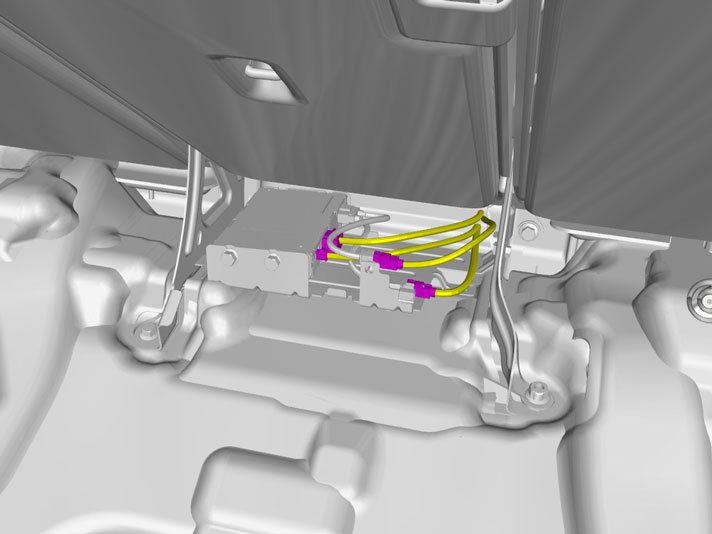

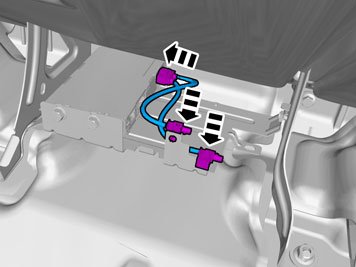

- Connect the four pre-routed power, antenna and fibre optic cables to the receiver and adapter wiring. The cables can be found under the mat where the unit is to be positioned.
Applies to the S60

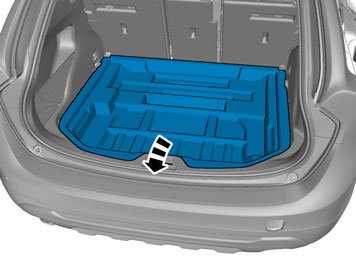

Applies to the V60
Applies to all models
- Download software for the accessory's function
