Part 1

Navigation system, portable

INTRODUCTION
- Read through all of the instructions before starting installation.
- Notifications and warning texts are for your safety and to minimize the risk of something breaking during installation.
- Ensure that all tools stated in the instructions are available before starting installation.
- Certain steps in the instructions are only presented in the form of images. Explanatory text is also given for more complicated steps.
- In the event of any problems with the instructions or the accessory, contact your local Volvo dealer.

Navigation system, portable

Note! Some steps in these installation instructions are presented with illustration only.These installation instructions apply to left-hand drive vehicles. When installing in a right-hand drive vehicle, the procedure is carried out on the opposite side and/or mirrored. Where the version differs, right-hand versions are also displayed with text and images.

Applies to the S60 (11-)/V60

Note! In instances where installation kit TMC is to be installed, perform this at the same time.

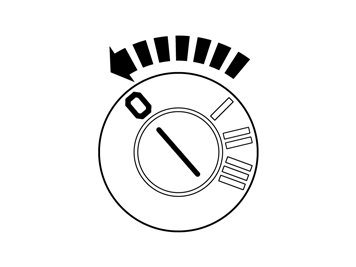

- Set the ignition key to position 0.

Note! Wait at least one minute before unplugging the connectors or removing other electrical equipment.

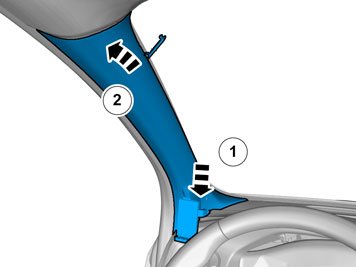

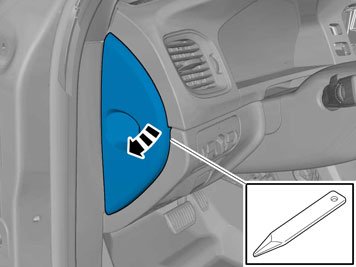

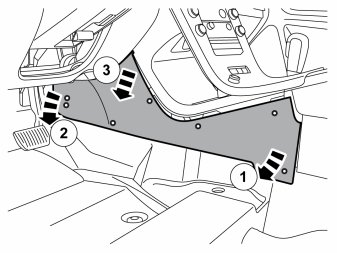

- Remove the marked components.

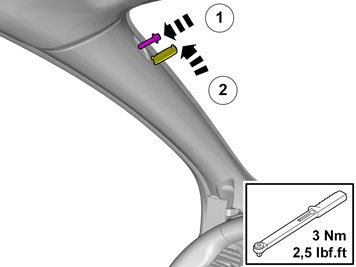

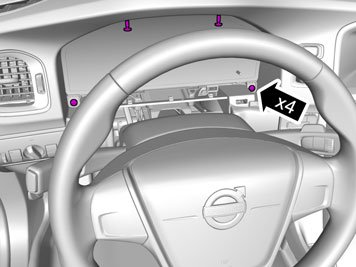

- Remove the screws.

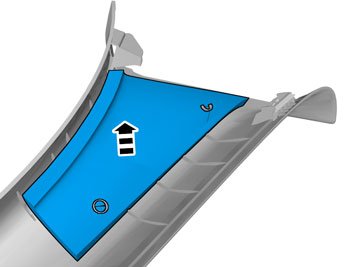

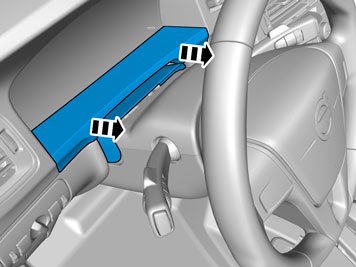

- Remove the marked components.
- Unplug the connector.

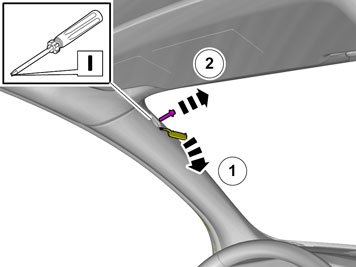

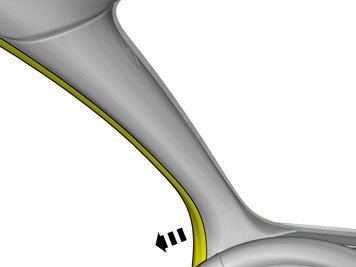

- Remove the rubber strip.

- Remove the screw.

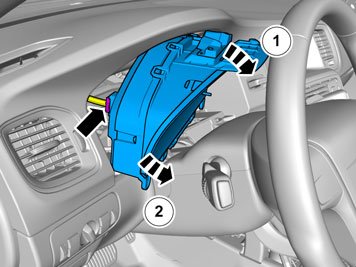

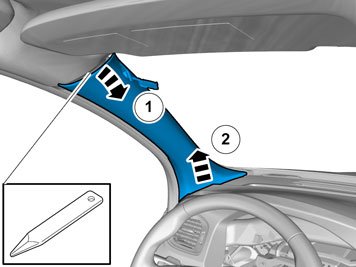

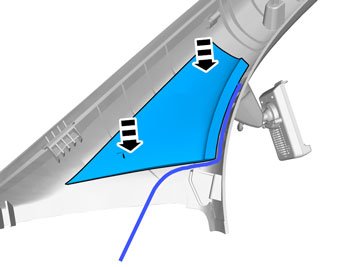

- Remove the panel.

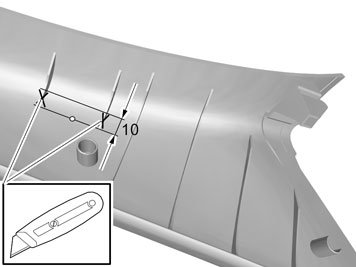

- Cut out the discs.

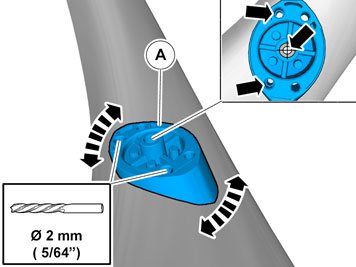

- Place the mounting A over the drilled hole.

- Centered the hole in the mounting Aopposite the drilled hole in the panel.
- Adjust the mounting so that it is fully against the panel and hold fast.

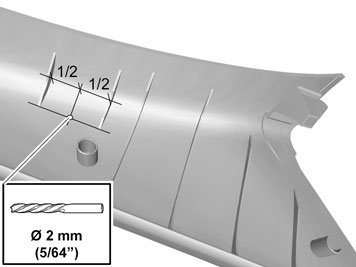

- Drill out the two holes.

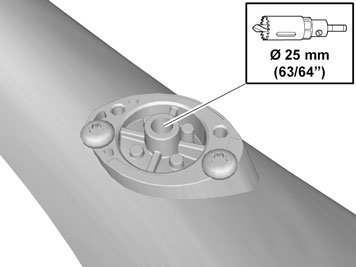

- Carefully drill out the mounting and panel.
- Drill horizontally.

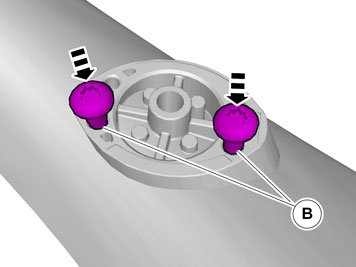

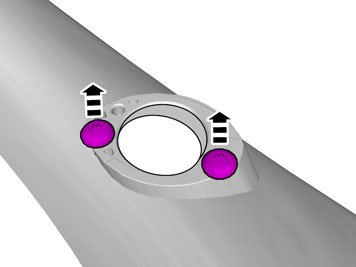

- Remove the screws.

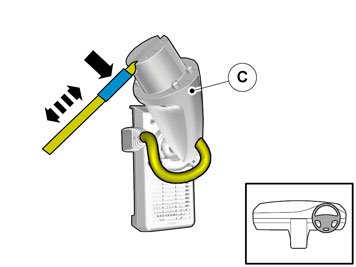

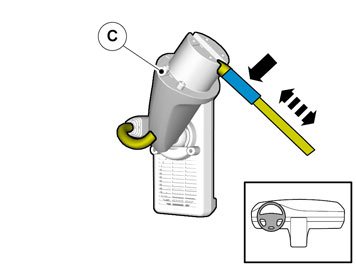

- Adjust the cable length so that the end of the marking is as illustrated.

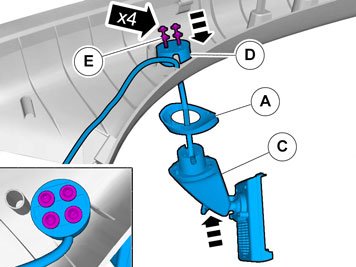

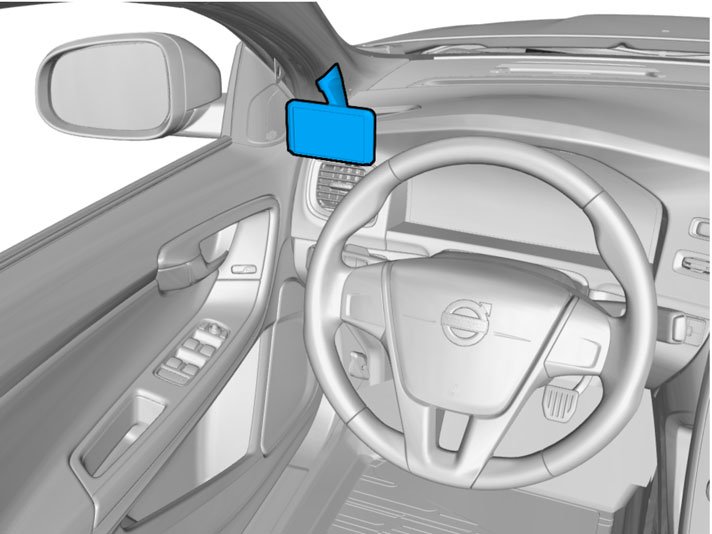

Installing holder

Note! Be sure to position the mounting (A) so that it is against the panel.

Illustrations A and B

- Insert the cables in the dashboard.

Illustrations A and B

- Reinstall the panel.

Applies to all vehicles

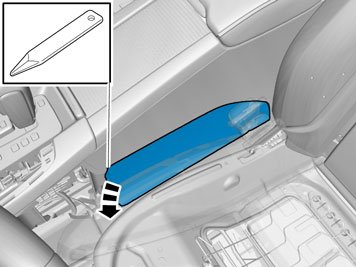

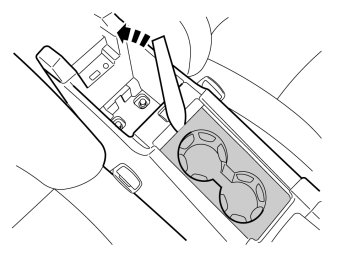

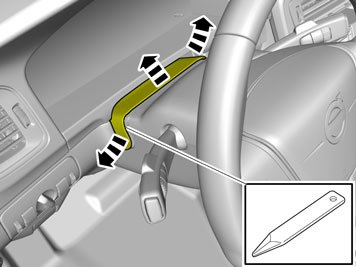

- Remove the panel.

Right-hand drive vehicles
- Applies to both sides.

Applies to all vehicles

- Remove the panel.

Illustrations A and B

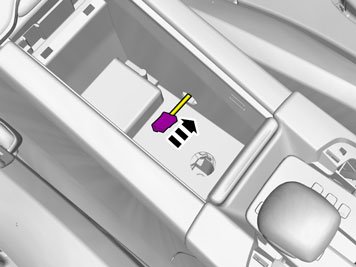

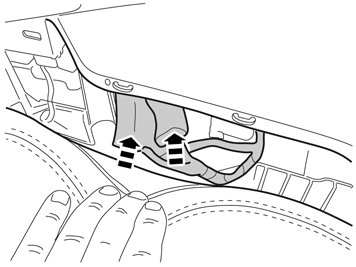

- Push out the 12V cable.

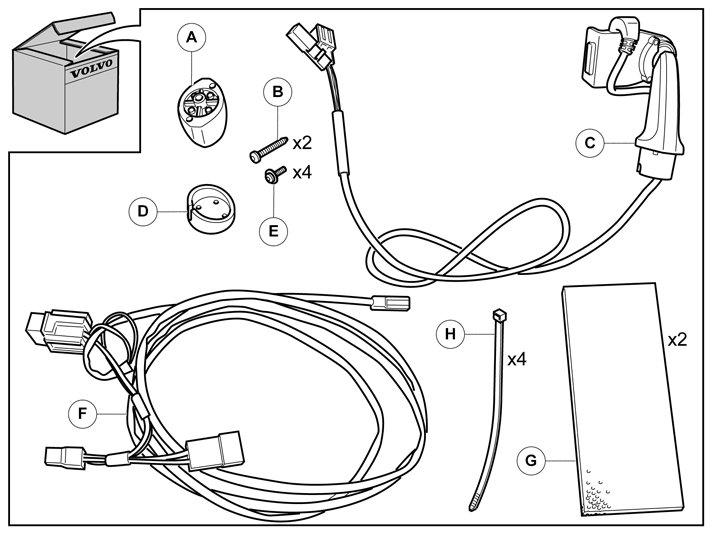

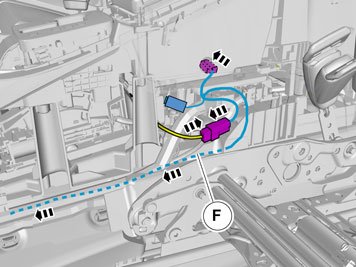

- Take the cable harness (F) out of the kit and place it on the left hand side of the tunnel console.
- Connect the 12V cable to the female connector on the cable harness.

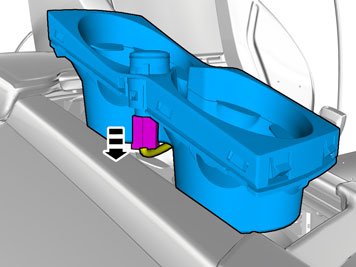

- Insert the remaining male connector through the hole to where the cup holder was.
- Pull the cable forward inside the carpet for the center console.

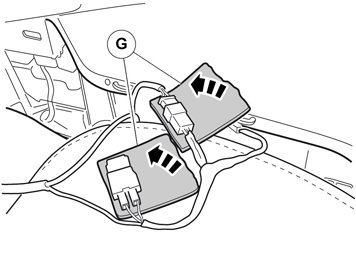

- Cut off the foam, remove the protective tape and wind the foam around the connector and fuse holder.

- Place the foam covered components as illustrated. Ensure that the cables do not come into contact with sharp edges.

Illustrations A and B

- Route the cable harness from the 12V socket through the center console.

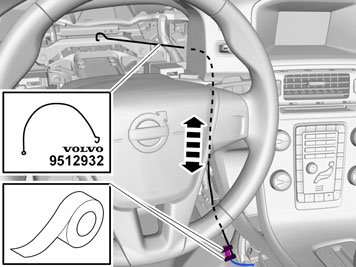

Use tension spring P/N 9512932.

Right-hand drive vehicles

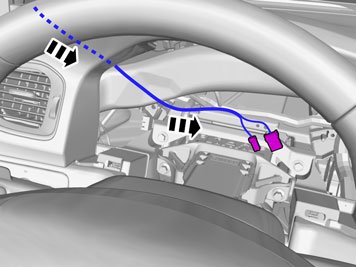

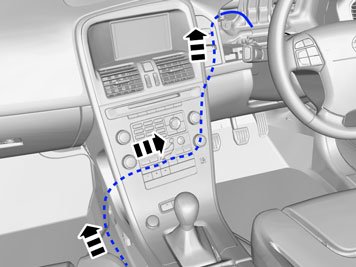

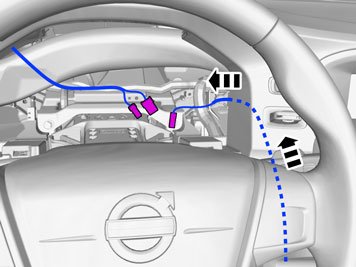

- Route the cable harness forward inside the mat, through the center console, up through the dashboard and out to the left at the combined instrument panel.
Use tension spring P/N 9512932.

Applies to all models

- Clamp the cable at the existing cable harness. Conceal any overlength cable inside the mat.

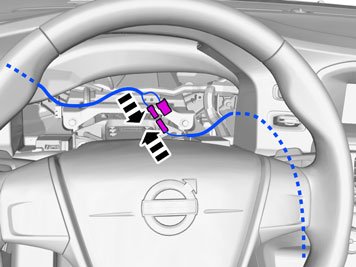

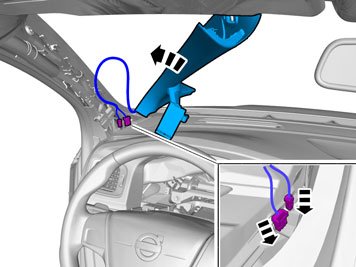

- Connect the connectors.

- Remove the protective tape and wrap the foam around the connectors.

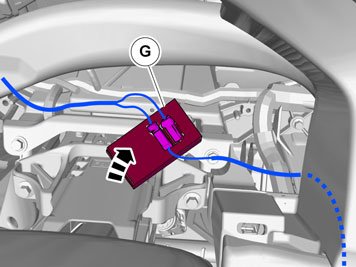

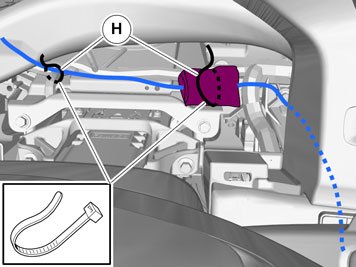

- Clamp the foamed connectors and cable harness and any overlength at the existing cable harness.

Note! Divide the excess evenly, in order not to obstruct the combined instrument panel.

- Reinstall the detached components in reverse order.
