Navigation System, Portable, Installation Kit TMC

Navigation system, portable, installation kit TMC

INTRODUCTION
- Read through all of the instructions before starting installation.
- Notifications and warning texts are for your safety and to minimize the risk of something breaking during installation.
- Ensure that all tools stated in the instructions are available before starting installation.
- Certain steps in the instructions are only presented in the form of images. Explanatory text is also given for more complicated steps.
- In the event of any problems with the instructions or the accessory, contact your local Volvo dealer.

Navigation system, portable, installation kit TMC

Note! Some steps in these installation instructions are presented with illustration only.These installation instructions show installation on left hand drive cars.When installing on right-hand drive cars, perform the procedures on the opposite side and/or mirrored.Where the procedure differs, the right-hand version is also shown with text and image.Applies to cars where Navigation system portable and Navigation system, portable, installation kit TMC are all installed:First carry out points 1-20 and 24-33 from the Navigation system, portable installation instructions. Then perform points 14-22 from these installation instructions. Finally carry out points 37-38 from the Navigation system, portable installation instructions.

Applies to cars with portable Navigation system installed

- Set the ignition key to position 0.

Note! Wait at least one minute before unplugging the connectors or removing other electrical equipment.

- Remove the marked components.

- Remove the screws.

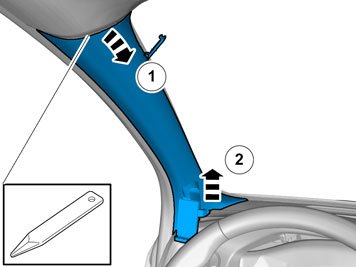

- Remove the marked components.

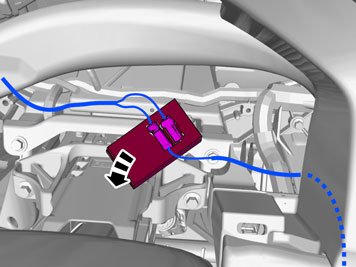

- Unplug the connector.

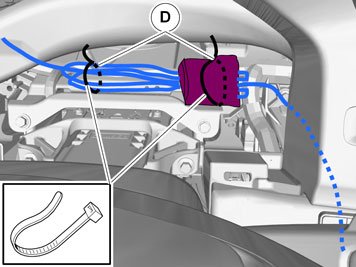

- Remove the cable tie(s).

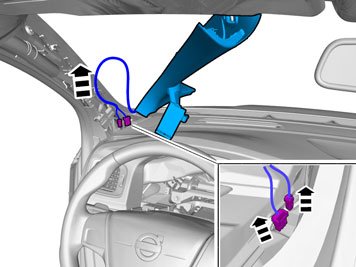

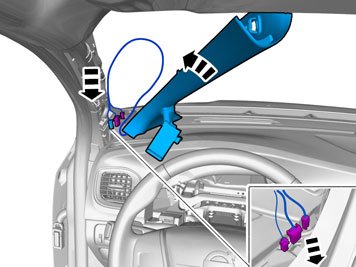

- Unplug the connectors.

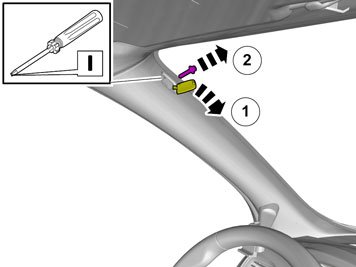

- Remove the rubber strip.

- Remove the screw.

Illustrations A and B

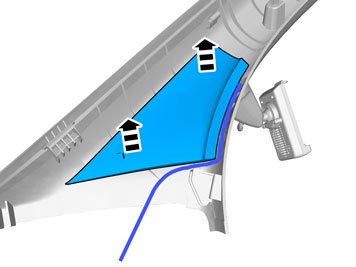

- Remove the panel and carefully pull up the cable harness.

- Tape the antenna cable at the holder's cable using suitable tape.

- Place the excess cable along the panel and bond.

Illustrations A and B

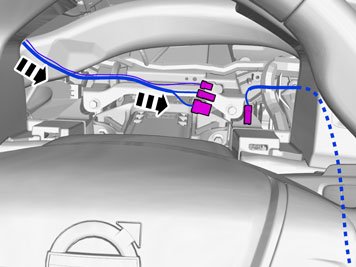

- Insert the cables in the dashboard.

Illustrations A and B

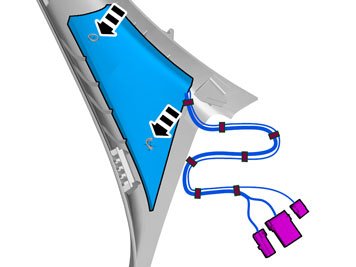

- Reinstall the panel.

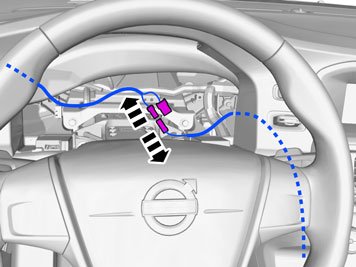

- Connect the connectors to TMC unit. The thin antenna cable is connected to "IN" on the TMC unit.

- Bind and foam wrap the TMC unit with connectors and cable.

- Distribute the excess cable at the existing cable harness and secure the foamed parts at the same place. Ensure that the foamed package is as thin as possible as not to obstruct the combined instrument panel.

- Reinstall the detached components in reverse order.
