TV Amplifier, Replacing

Operation number: 39620-2

Television (TV) Amplifier

Removal

Note! Removal steps in this procedure may contain installation details.

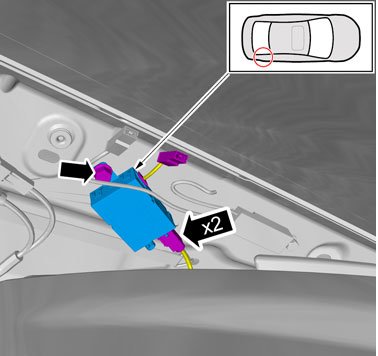

Remove right side panel c-pillar Refer to: C-pillar trim panel C-Pillar Trim Panel




Torque: M6, 10 Nm

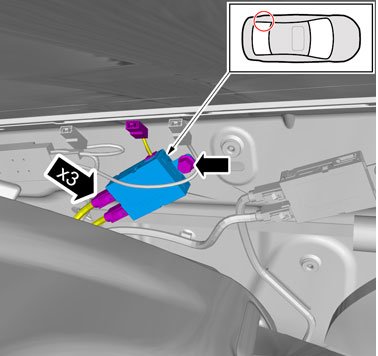

Remove left side panel c-pillar Refer to: C-pillar trim panel C-Pillar Trim Panel




Torque: M6, 10 Nm

Installation

To install, reverse the removal procedure.
