Signal Description, Infotainment Control Module (ICM)

Signal description, Infotainment control module (ICM)

General

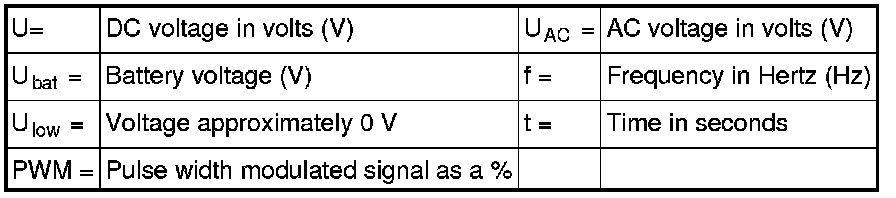

All the values given below are between the respective terminal in column 1 and terminal #A10 in column 1 (power ground) unless otherwise stated in brackets after the table entry.

Note! It is important to connect the breakout box and check the ground connections before starting to measure.

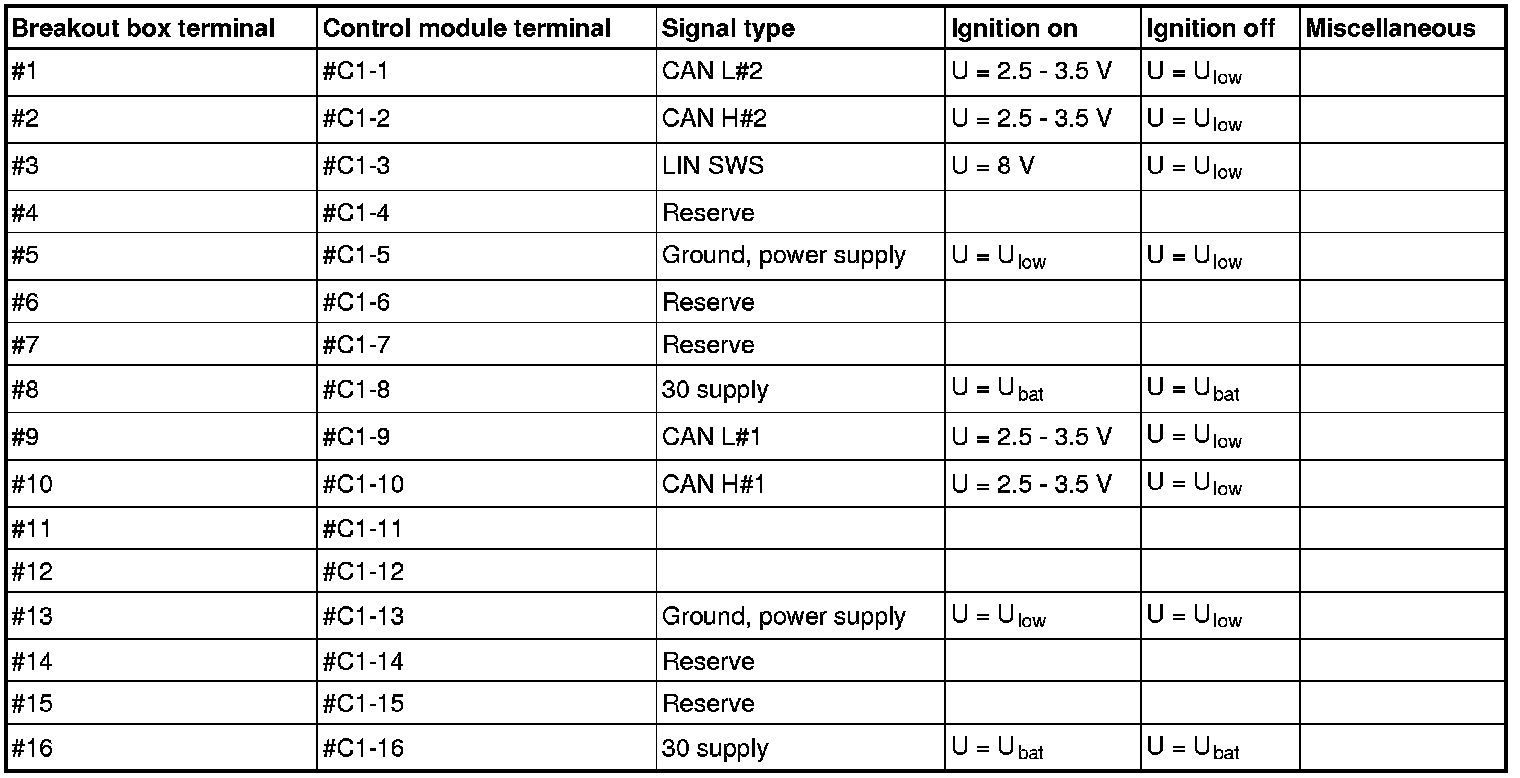

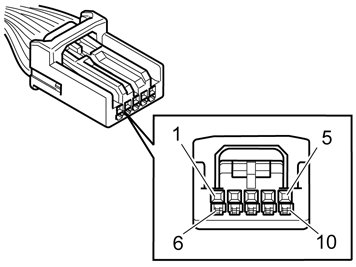

Connector C1

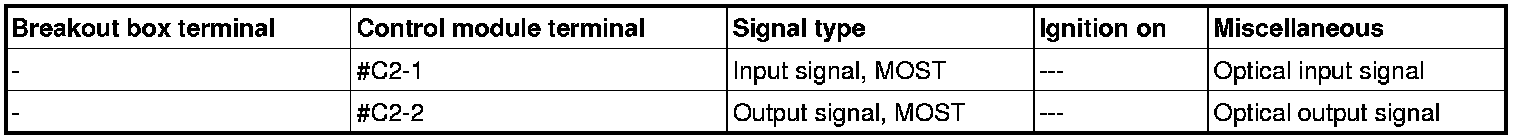

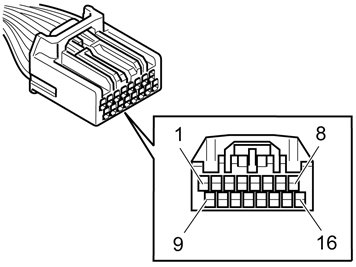

Connector C2

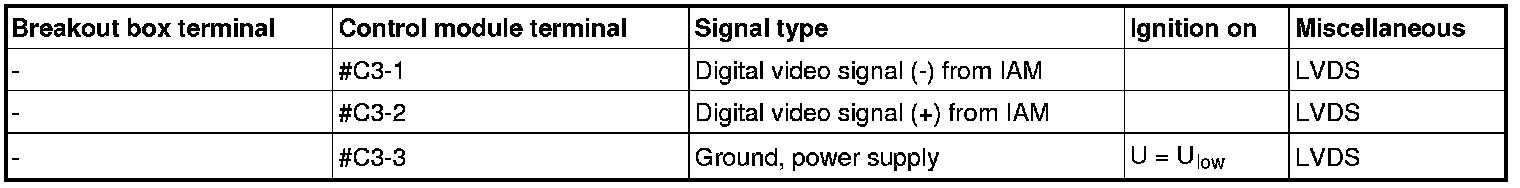

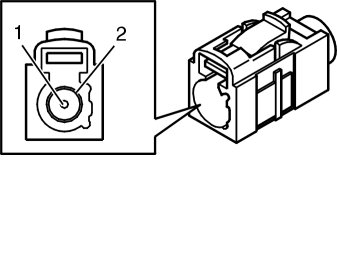

Connector C3 (Blue)

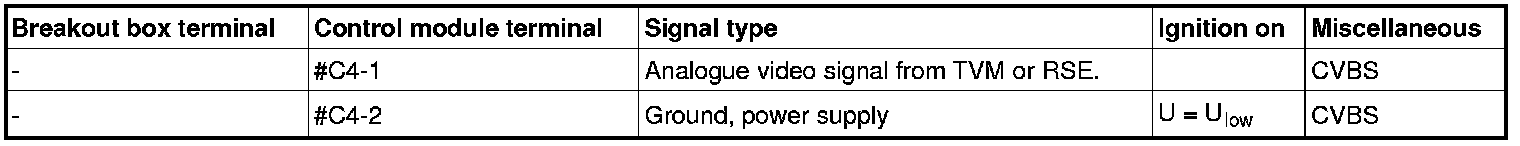

Connector C4 (green)

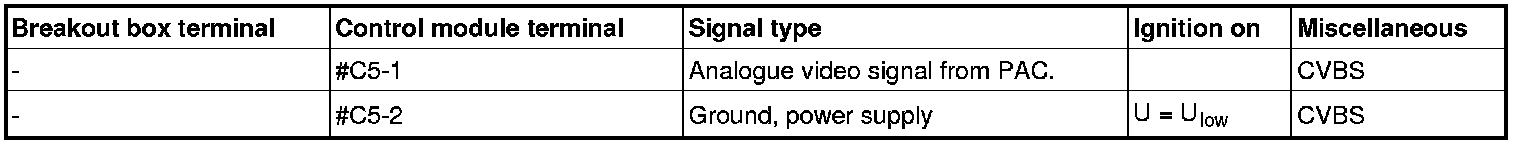

Connector C5 (brown)

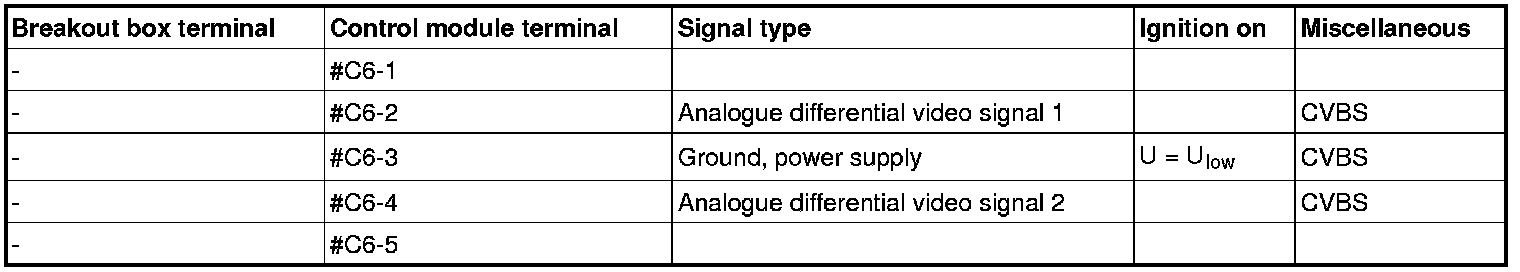

Connector C6

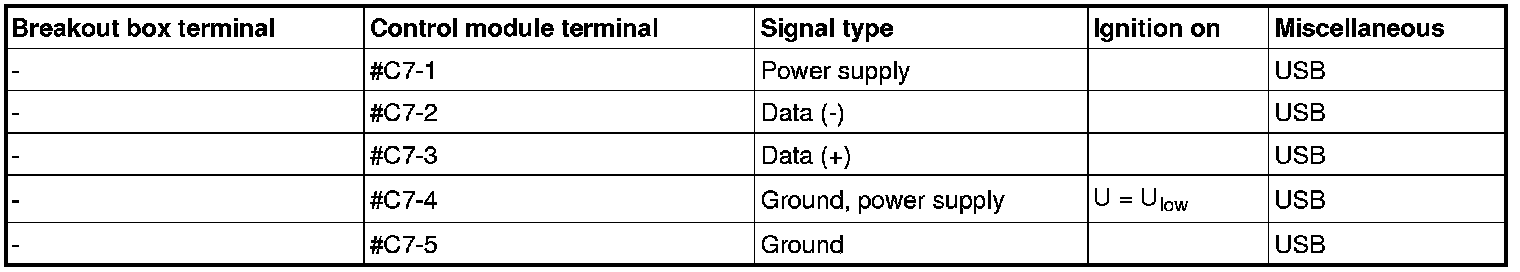

Connector C7 (only for 5 inch screens)
