Part 2

Multimedia system, RSE, two screens, with two players (Continued)

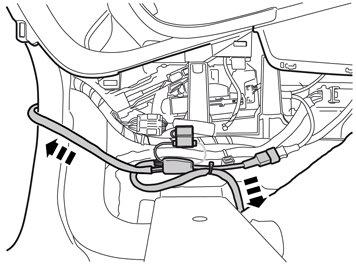

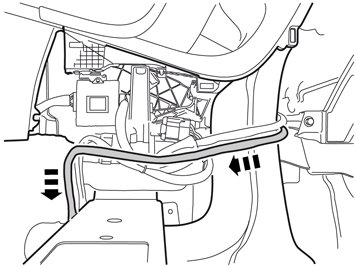

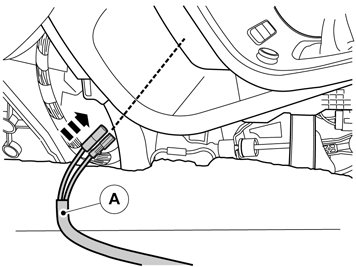

- Route the cable marked "Right side" between air duct and climate unit over to the right side.

- Position the cable harness.

- Secure the 2 cables at the existing cable harness using a cable tie.

- Remove the knob for the lumbar support adjustment by removing the cover using a small screwdriver and pull the knob straight off.

- Take a long cable tie and thread it from the hole for lumbar adjustment and up to the hole for the head restraint's inner mounting. The cable tie must be routed between the upholstery and the protection.

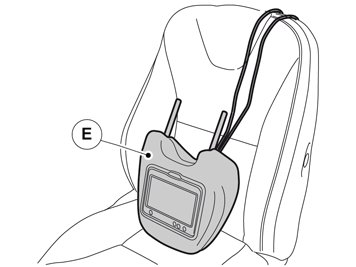

- Take the head restraint marked "Passenger side".
- Position the head restraint as illustrated.

Applies when installing on the left-hand seat

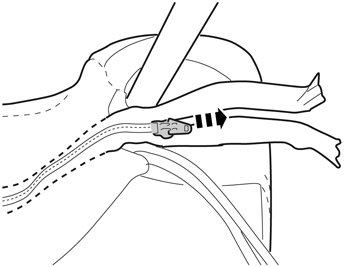

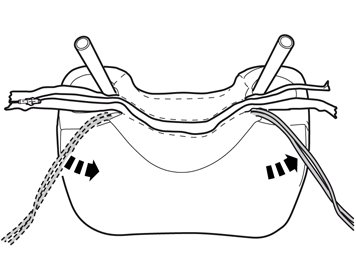

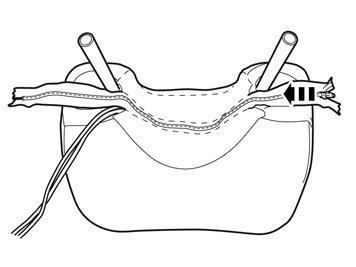

- Pull the zip fastener forward.

- Transfer the cables to the opposite side.

- Close the zip fastener.
- Fold the excess back.

Applies to all models

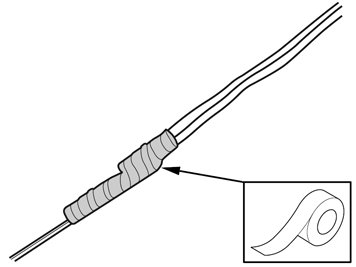

- Tape the cables to the cable tie.

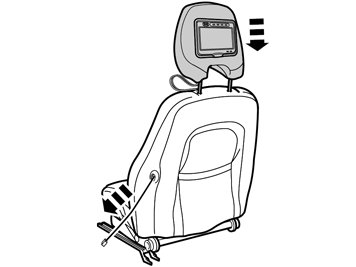

- Place the head restraint in the seat.

Note! The cables must be in front of the head restraint tube.

- Push the head restraint in to place at the same time as feeding the cables forward.

Caution! Check that the head restraint has locked into place by pulling it upwards.

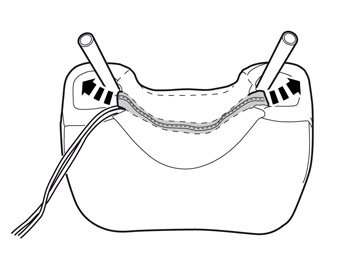

- Using your fingers, press the cables under the protection. The cables must not press out the upholstery after installation.

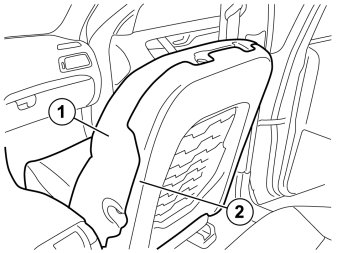

Padding (1)
Padding (2)

Note! The image shows a seat without upholstery.

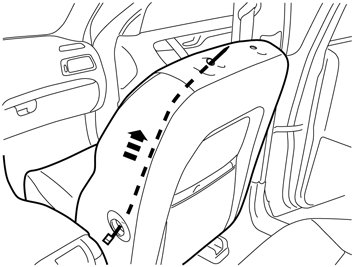

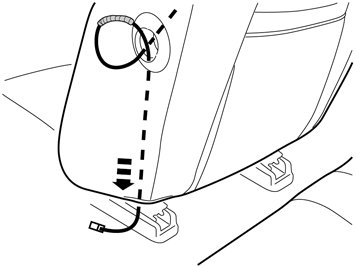

- Pull the cable tie with cables through the hole and out at the lower edge.
- Remove the cable tie and tape from the cable harness.

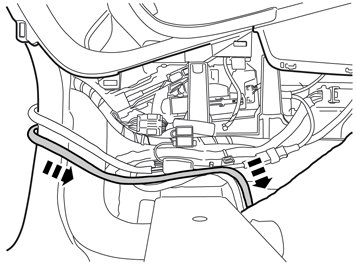

- Pull the cables forward and in under the seat. Follow the existing cable.

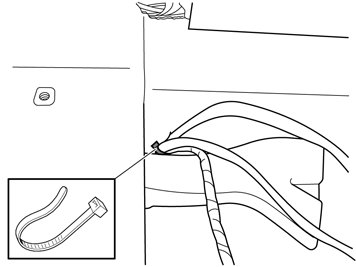

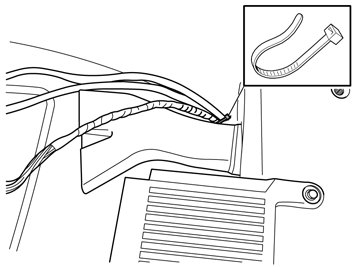

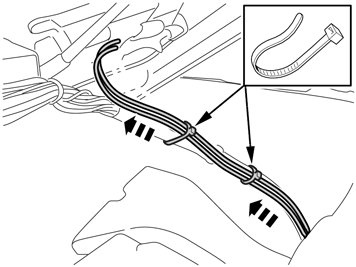

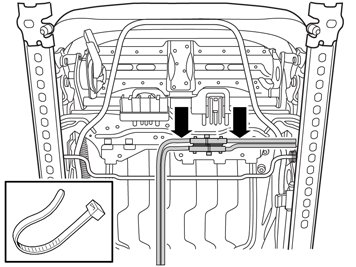

- Secure the cables using three cable ties.
- Reinstall the lumbar adjustment.

Note! The image shows a seat without upholstery.

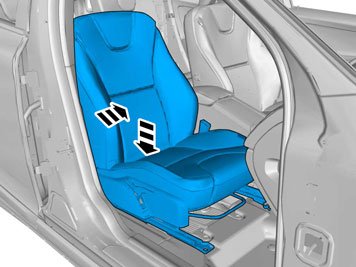

- Place the seat in the vehicle.

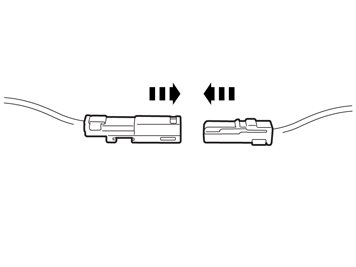

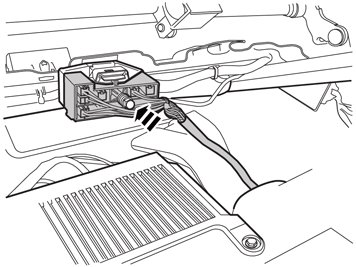

- Connect the 2-pin connector.

- Connect the green connector.
- The groove and the arrow should be opposite each other.

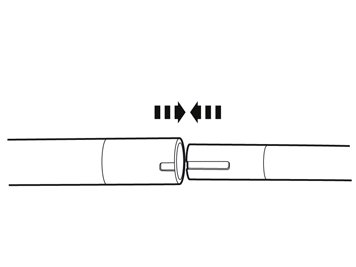

- Connect the black connector.
- The grooves should be opposite each other.

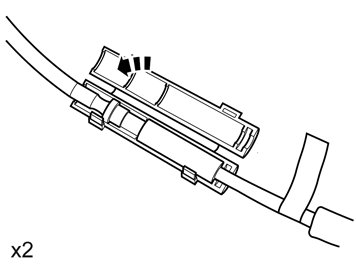

- Install the connector casings.

- Install cable ties around the connector casings.

- Repeat the method steps for the other seat.

- Reinstall the detached components in reverse order.

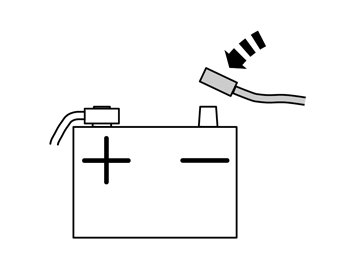

- Reconnect the battery negative lead

Warning! When the ignition is to be switched on for the first time after the battery has been disconnected, this must be done whilst by standing outside the vehicle, stretching your arm in and avoiding the working area for the airbags.

- Set the ignition switch to position II.

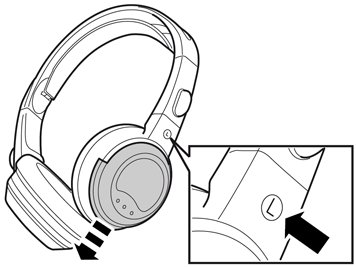

- Install the batteries in the remote control and headsets.

- Region code the DVD players. Information is available in VIDA under:
1. Product specifications
2. Design and Function
3. 3 Electrical system
4. 39 Media - communication and entertainment
5. 393 Equipment for entertainment
6. Rear seat entertainment system
7. Design
- Place remote control, headsets, cable harness, and quick-guide in a suitable place in the vehicles.
