Location of Components, System For Rear Seat Entertainment, Generation 4.3

Location of components

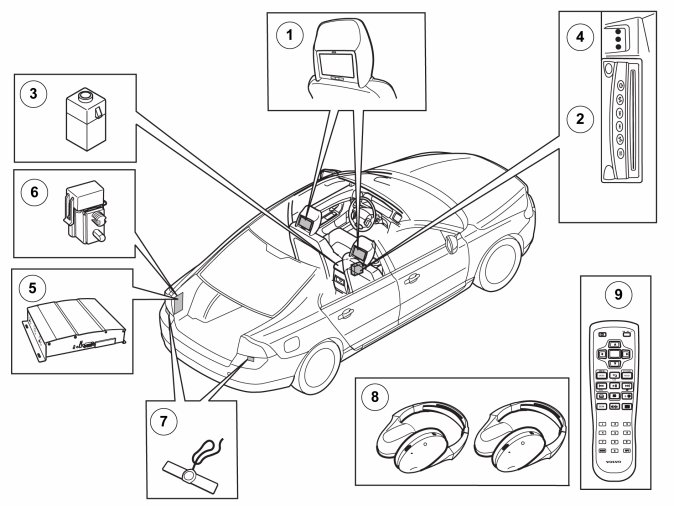

Location Of Components:

1. Screen, headrest (16/81A, B).
2. DVD-player with integrated Rear seat entertainment module (RSE) (16/109).
3. AUX input (16/123.2).
4. AV-panel (16/123.3).
5. Digital TV-receiver (DVB-T) (16/36) (if the option is installed).
6. Fuse holder and fuse for TV receiver (only if TC receiver is installed).
7. Antennas (left 16/69, right 16/70) (two) for digital TV receiver (only if TV receiver is installed).
8. Headsets
9. Remote control
