System Overview

System overview

Control module




The rear seat entertainment system is a mobile entertainment system integrated in the headrests for keeping passengers in the rear seats occupied and entertained with video games or movies.

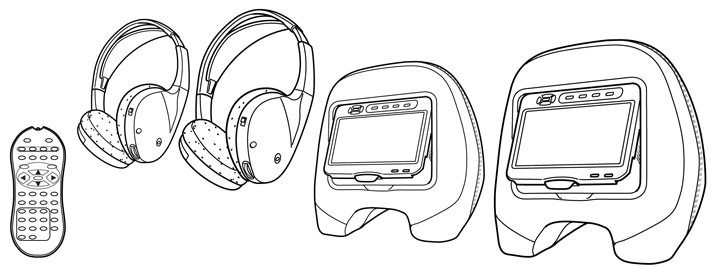

The system consists of two brilliant 7-inch, 16:9 format LCD screens. The screens can be adjusted manually to minimize the risk of reflections and mirroring in strong light conditions. The DVD players are integrated in the screens. Media discs are loaded from underneath, which reduces the risk of small objects being inserted into the DVD player. The system is equipped with AUX inputs, which make it possible to connect external media sources: iPod �, MP3 player, video camera or games console. The system also contains two pairs of wireless headphones and a wireless remote control. The DVD devices have been thoroughly tested and meet Volvo's high demands on safety.

The following media formats can be played by the DVD player:
- DVD-R/+R
- DVD-RW/+RW
- CD-R/+R
- CD-RW/+RW

The following information formats can be played:
- DVD - Video, Audio (Single/Dual layer)
- CD Digital Audio
- Super Audio CD (SACD)
- MP3 Audio CD/MP3 ID3 Tags ISO 96660
- VCD (Video CD)
- WMV
- SVCD (Super VCD)
- DivX/MPEG-4
- Windows Media Audio (WMA)
- OGG multimedia format
Formats such as THX and Dolby Digital are also supported. Only stereo signals of this audio format are reproduced.

Signals
The tables below include the in and output signals for the DVD devices in the system for rear seat entertainment.
