Function

Function




The system can be activated either with the POWER button on the screen or with the POWER button on the remote control. This is done separately for the right, respectively left screens. If the system is to be activated with the remote control, the ignition must be on and the remote control pointed at the screen.

System start-up
When the ignition is switched on, the lighting in the screen's POWER-button and the system become set to standby mode. When the POWER button is pressed in, the system is activated and an image with the Volvo emblem appears.
The remote control can be used to activate/deactivate the system and to navigate the menu system.
- Switch between audio/video source (DVD, AUX and DRIVER respectively PASSENGER).
- Image adjustment (image color, brightness, contrast and aspect ratio).
- Audio settings (bass, treble, volume and balance).
- Language selection for on-screen instructions.
An internal memory saves the language selection and the current audio and video settings. These settings are loaded upon start-up with the exception of volume level, which is set to low as standard.
When a CD/DVD is inserted, playback starts automatically if the CD/DVD does not have a menu. DVD playback can be resumed from a standby mode, e.g. if the ignition is switched off during the playback of a film. In this case, playback continues from the last point when the ignition is switched back on, after the system has been reactivated. To insert a disc, the screen must first be folded out.

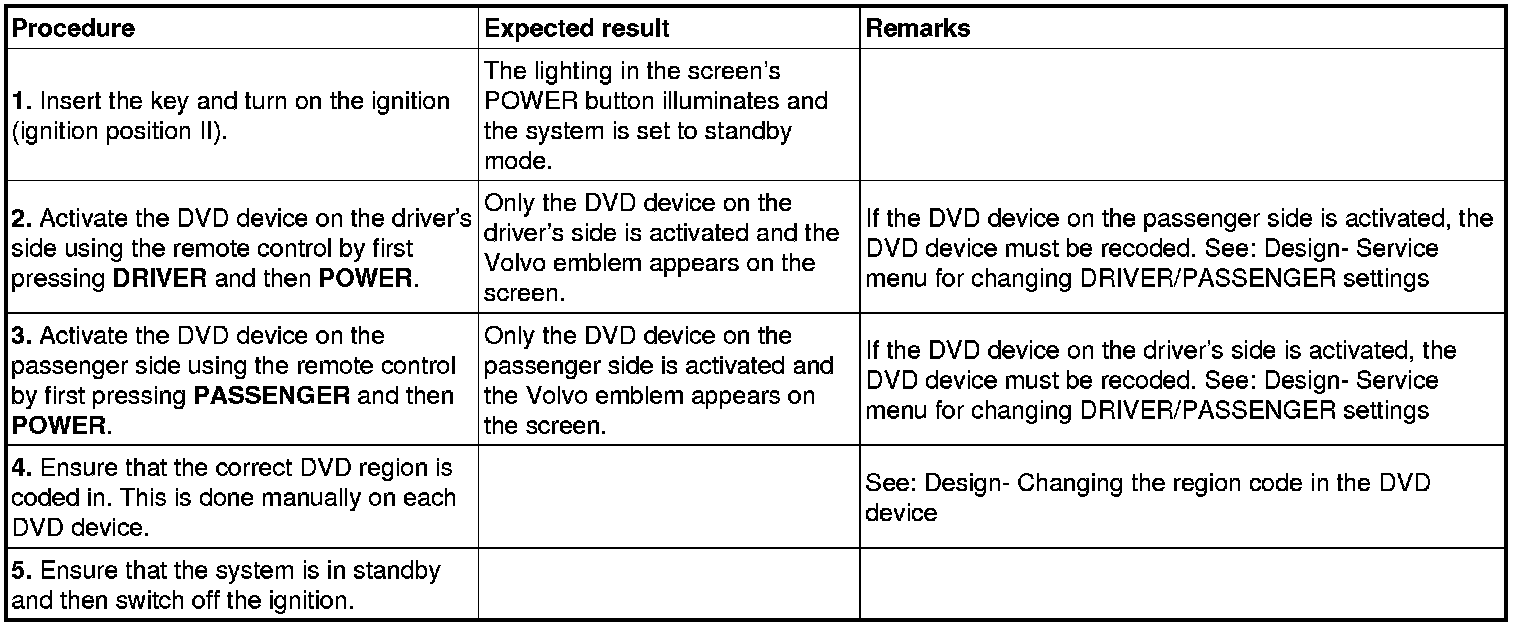

Test sequence

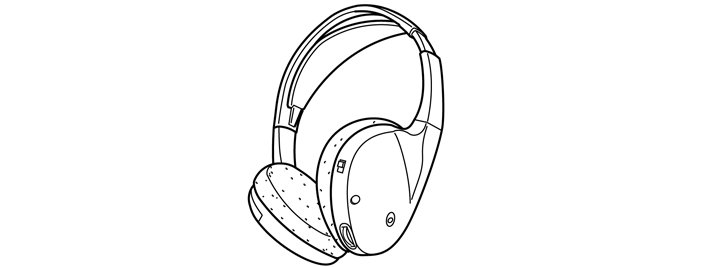

Headphones




Two headsets are supplied with the system as standard. The number of headsets that can be used is unlimited as long as they are within range of the IR transmitters. Transfer of audio between DVD devices and the wireless headsets is via infrared signals. There must not be any obstacles blocking the transmitter, which is located at the top of the screen, and the receivers, which are on the side of the headsets. If the path is blocked, the signal will be interrupted and the sound quality affected. Select sound source, DRIVER or PASSENGER, via control button: CH A (channel A) and CH B (channel B).
The headsets are activated using a button on one side of the headsets. The headsets switch off automatically if an IR signal is not received within 3-4 minutes.
