Design






Design

DVD device




The system consists of two DVD devices with DVD player integrated in the screens. To access the DVD player, lift the button mounting at the lower edge of the screen. Discs are inserted via a feed slot in the DVD player.
Two DVD devices are included in the original installation kit: a DRIVER and a PASSENGER. A DVD device (DRIVER) is available as a replacement part. Select DVD device via the remote control. The screen is recoded via the service menu.
The DVD unit's mechanism is designed to withstand shaking to prevent the image or audio quality from being distorted during playback.
The DVD device is region coded, which can be changed using a security code. The screen is designed for PAL and NTSC image display.
The DVD device interprets and performs the commands that are specified by the user via the system's remote control or via the screen's front panel.
The DVD device has memory handling to remember where, for example, in a film different power cut-offs occurred.
The system is 15-supplied, which means that the ignition must be on to activate the system. When the ignition is switched off, the system shuts down automatically. There is also a voltage sensor that switches off the system when the battery has a low voltage level. Depending on which POWER-mode the system is set to, the screen will react differently when the DVD device is switched ON/OFF. Coding of POWER-mode can be done via a service menu.
The audio to the car's stereo can be switched off or on regardless of the setting of the headsets. However, if the customer connects an external source to the car's own A/V input, audio cannot be played-back from the system for rear seat entertainment in the car's stereo.
To select external audio and image sources there is a separate A/V input for each DVD unit. The A/V input is on the lower edge on the right-hand corner of the screen. The system for rear seat entertainment also contains a extension cable of the RCA type for the connection of external equipment: DVD or CD player, iPod �, MP3 player, video camera, VHS video or games console.

Connecting external equipment
- Yellow socket: Video signal
- White socket: Left channel for audio
- Red socket: Right channel for audio

The following media formats can be played by the DVD player:
- DVD-R/+R
- DVD-RW/+RW
- CD-R/+R
- CD-RW/+RW

The following information formats can be played:
- DVD - Video, Audio (Single/Dual layer)
- CD Digital Audio
- Super Audio CD (SACD)
- MP3 Audio CD/MP3 ID3 Tags ISO 96660
- VCD (Video CD)
- WMV
- SVCD (Super VCD)
- DivX/MPEG-4
- Windows Media Audio (WMA)
- OGG multimedia format
Formats such as THX and Dolby Digital are also supported. Only stereo signals of this audio format are reproduced.
To easily check if the DVD device is powered and grounded, switch the ignition on, the background lighting on the screen's POWER button should then illuminate. The system for rear seat entertainment is activated by pressing the POWER button, the Volvo emblem then appears on the screen. The DVD devices DRIVER and PASSENGER are controlled independently via the screen's front panel or via the system's remote control.

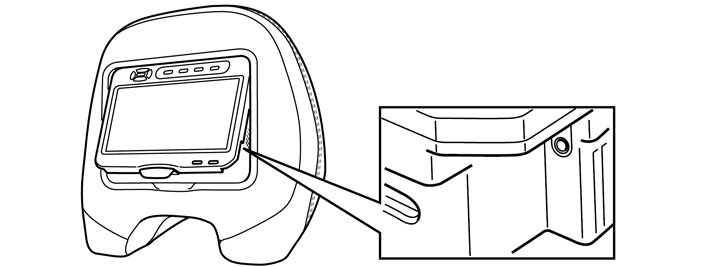

A/V input




The system has an A/V input that enables the connection of external media sources: iPod �, MP3 player, video camera or games console. The A/V input is on the lower edge on the right-hand corner of the screen.

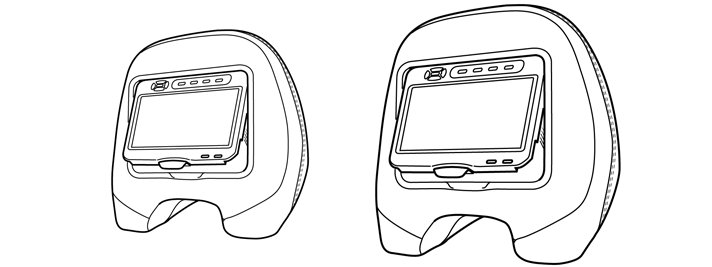

Screen, head restraint




The screen on each of the headrests is a 16:9 format, 7 inch TFT LCD screen and has a 120 degree horizontal viewing angle. The screen is manually adjustable (can be angled out slightly) to minimize the risk of reflections and mirroring in harsh light conditions. The top of the screen has 4 LEDs for transmitting and receiving infrared signals from remote controls and headsets.

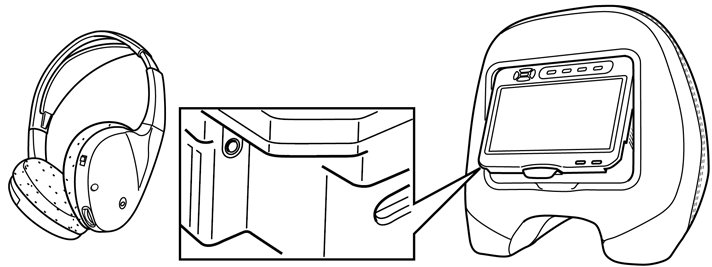

Headphones




The wireless headsets can be used by passengers in the rear seat. Standard audio is transferred via infrared signals (IR) to the headsets in two-channel stereo format. The headsets are powered by a battery which is located in the left headset under a cover. The headsets are activated by a button on one side of the headsets. The volume for each headset is adjusted via a volume control. Selection of audio source, DRIVER or PASSENGER, is made via control button: CH A (channel A) and CH B (channel B).
Corded headsets can also be connected to the system, one to each screen. The socket is located at the lower edge of the screen on the left corner.

Remote control




The remote control can be used to switch between different audio and/or video inputs in the system:
- DVD device, audio/video
- A/V input, audio or audio/video
The remote controls can be used to navigate the menu system, system menu, DVD menu and the service menu. The remote control uses infrared signals (IR) to transfer the command to the system. The remote control uses two AAA batteries, installed under a cover on the rear of the control.

Changing the region code in the DVD device




The region coding means that only discs that correspond with the set region in the DVD device can be played. Preselected region code is region code 1. The region code in the DVD device can be changed up to 5 times. After that, the set region is then locked and cannot be changed.

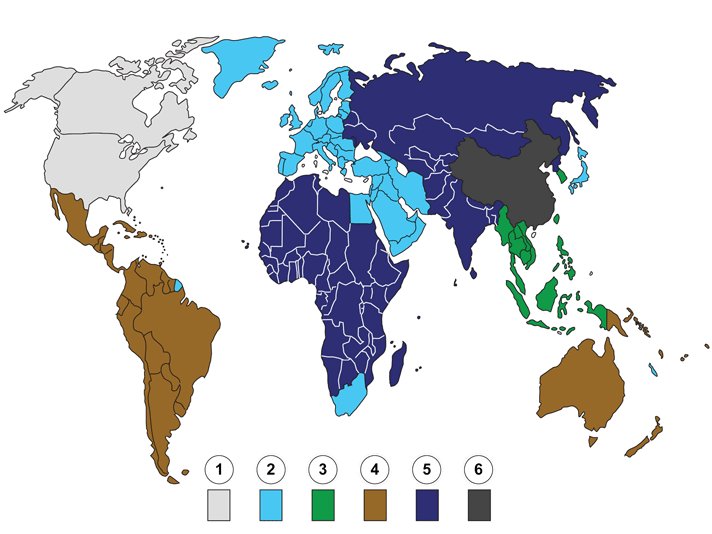

Region codes:
1. USA, Canada, and Bermuda.
2. Europe including Armenia, Georgia, Azerbaijan, Egypt, Iran, Japan, Lesotho, South Africa, Swaziland, French Guyana, and Greenland.
3. South East Asia, Hong Kong, Macao, South Korea, and Taiwan.
4. Australia, Oceania, Mexico, Central America, and South America (except French Guyana).
5. Russia, South Asia (excluding Iran), India, Mongolia, North Korea, and Africa (excluding African countries mentioned above in region 2).
6. China excluding Hong Kong and Macao.

Note! Warranty repairs due to locked region on the DVD device will not be approved. Region code changes to the region in which the vehicle will be used can only to be done at the workshop. The security code is not to be given to the customer. Region code 0 is not used.

Do as follows to open the menu for region code change:
1. Turn on the ignition.
2. Activating the system for rear seat entertainment.

Note! There must not be a disc in the DVD player.

3. Press DRIVER or PASSENGER on the remote control depending on which DVD device is to be coded.
4. Point the remote control at the DVD device to be coded and press: 7, 7, 7 and then the Play button.
5. Select the region code that applies to the relevant vehicle and press ENT.
6. Use the RIGHT respectively LEFT arrow to select region. Then press ENT.
7. Press STOP to exit the menu.
8. Deactivating the system for rear seat entertainment.
Perform the same procedure for both the right and left screens separately.

Service menu for changing POWER mode
There are three different POWER-mode in the system that define how the system is to interact in switching the system ON/off. The system is set to OFF as default, and this should not be changed unless requested by the customer.

Short description of the various POWER-mode:
- ON: The DVD device is automatically activated when the ignition is switched on.
- OFF: The DVD device is automatically set to standby mode the next time the ignition is switched on after the power has been cut.
- LAST MEM.: The DVD device is automatically activated if, in the last operating cycle, it was activated, and deactivated if, in the last operating cycle, it was deactivated, the next time the ignition is switched on.

Do as follows to open the menu for changing POWER-mode:
1. Turn on the ignition.
2. Activating the system for rear seat entertainment.

Note! There must not be a disc in the DVD player.

3. Press DRIVER or PASSENGER on the remote control depending on which DVD device is to be coded.

Note! Ensure that only the DVD unit to be coded is active.

4. Point the remote control at the DVD device to be coded and press the following sequence: UP, RIGHT, LEFT, DOWN and then ENT.
5. Select the applicable coding for the relevant DVD device by scrolling the menu with the RIGHT arrow. Then press PIC MENUto confirm and exit the menu.
6. Deactivating the system for rear seat entertainment.

Service menu for changing the DRIVER/PASSENGER settings
All replacement parts of the DVD device are coded for the driver's side (DRIVER). To install a DVD device on the passenger side so that it corresponds with the remote control it must be recoded to PASSENGER.

Do as follows to open the menu for changing the DRIVER/PASSENGER settings:
1. Turn on the ignition.
2. Activating the system for rear seat entertainment.

Note! There must not be a disc in the DVD player.

3. Press DRIVER or PASSENGER on the remote control depending on which DVD device is to be coded.

Note! Ensure that only the DVD unit to be coded is active.

4. Point the remote control at the DVD device to be coded and press the following sequence: UP, RIGHT, LEFT, DOWN and then ENT.
5. Select the applicable coding for the relevant DVD device by scrolling the menu with the LEFT arrow. Then press PIC MENUto confirm and exit the menu.
6. Deactivating the system for rear seat entertainment.
