System Overview

System overview

Infotainment kits are available in four different versions: Performance, High Performance, High Performance Multimedia and Premium Sound Multimedia. Infotainment control module (ICM) is the main control module.

Performance




Infotainment kit Performance includes Infotainment control module (ICM) (3/281) with 5 inch screen, integrated audio module (IAM) (16/1), Climate control module (CCM) (4/6) and steering wheel button right (SWSR) (via Steering wheel module (SWM) (3/130))

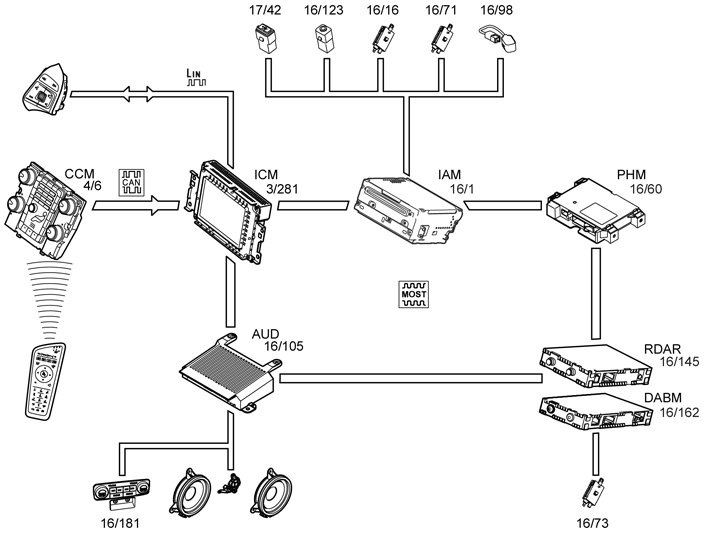

High Performance




Infotainment kit High Performance includes Infotainment control module (ICM) (3/281) with 5 inch screen, integrated audio module (IAM) (16/1), Audio module (AUD) (16/105), Climate control module (CCM) (4/6) and steering wheel button right (SWSR) (via Steering wheel module (SWM) (3/130))

Possible options:
- Phone module (PHM) (16/60) with Volvo On Call
- Remote Digital Audio Receiver (RDAR) (16/145) or (DABM) (16/162) (market-dependent).

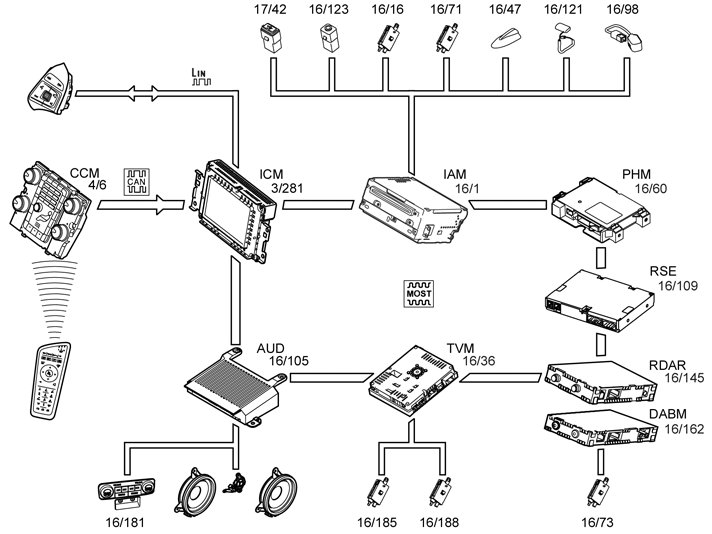

High Performance Multimedia




Infotainment kit High Performance Multimedia includes Infotainment control module (ICM) (3/281) with 7 inch screen, integrated audio module (IAM) (16/1), Audio module (AUD) (16/105), Climate control module (CCM) (4/6) and steering wheel button right (SWSR) (via Steering wheel module (SWM) (3/130))

Possible options:
- Phone module (PHM) (16/60) with Volvo On Call
- Remote Digital Audio Receiver (RDAR) (16/145) or (DABM) (16/162) (market-dependent)
- Television Module (TVM) (16/36)
- Navigation with voice-control integrated in Integrated Audio Module (IAM)(16/1)
- Rear seat entertainment module (RSE) (16/109) (model-dependent).

Note! Option offers may be different for different markets and car models.

Premium Sound Multimedia




Infotainment kit Premium Sound Multimedia includes Infotainment control module (ICM) (3/281) with 7 inch screen, integrated audio module (IAM) (16/1), Audio module (AUD) (16/105), Climate control module (CCM) (4/6) and steering wheel button right (SWSR) (via Steering wheel module (SWM) (3/130))

Possible options:
- Phone module (PHM) (16/60) with Volvo On Call
- Remote Digital Audio Receiver (RDAR) (16/145) or (DABM) (16/162) (market-dependent)
- Television Module (TVM) (16/36)
- Navigation with voice-control integrated in Integrated Audio Module (IAM)(16/1)
- Rear seat entertainment module (RSE) (16/109) (model-dependent).

Note! Option offers may be different for different markets and car models.

Signals
See: Design and Function - Infotainment control module (ICM)
